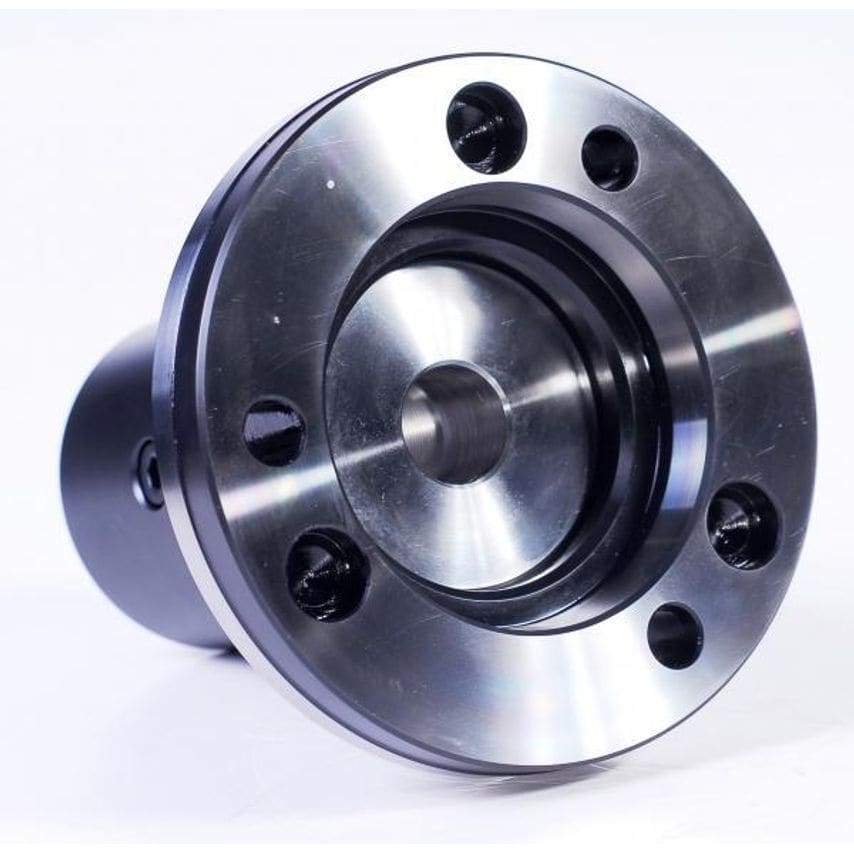

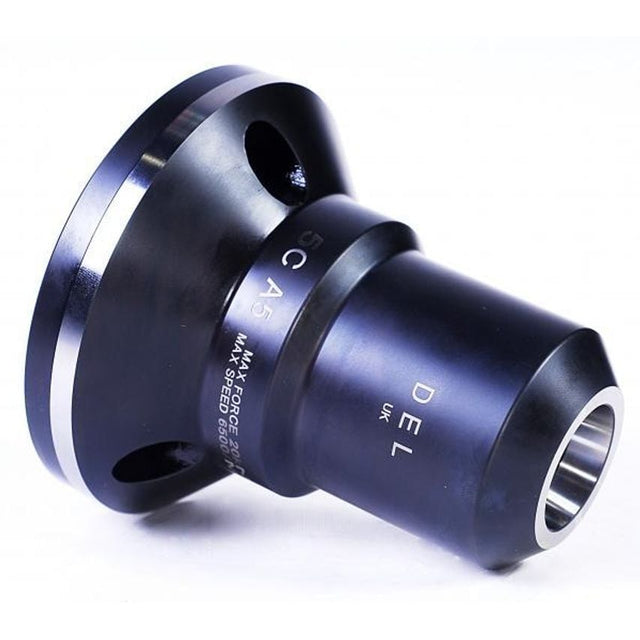

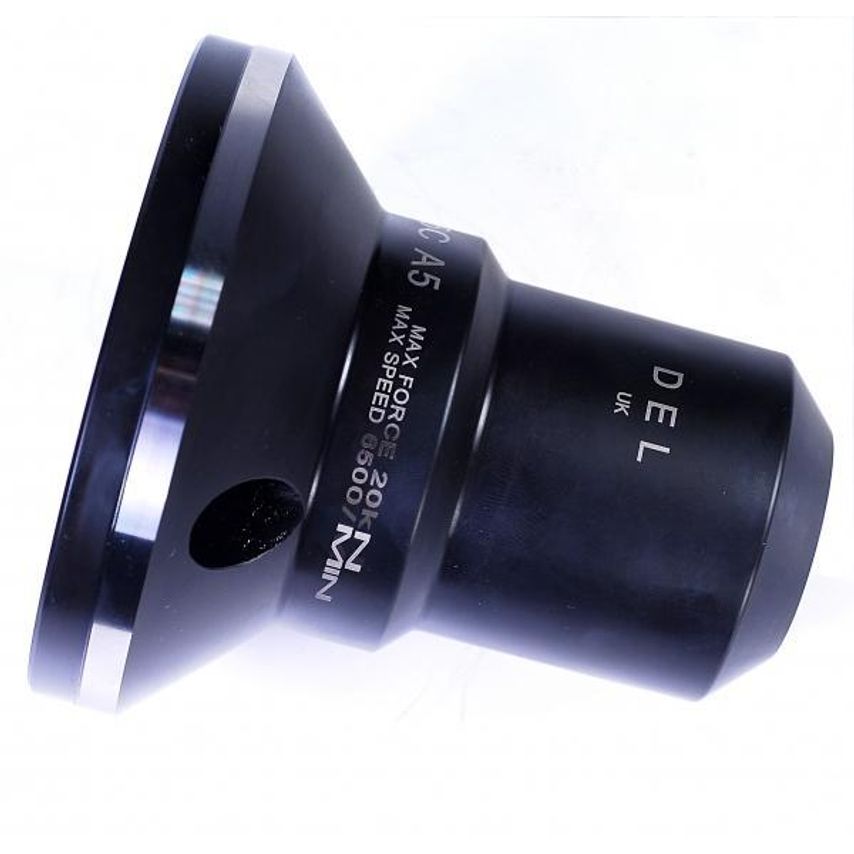

The gripping pull-back action to actuate the collet chuck means the work piece will be moved slightly in the Z-Axis. This is normally acceptable for first operation work and the work piece position can easily be determined with a facing cut. The 5C and 16C collets have been designed with a long small nose diameter allowing for good clearance for tooling. All collet closers are case hardened and ground optimising the rigidity, strength and durability.Features & Benefit Small nose diameter to provide excellent tool clearance. Case hardened, optimising the rigidity, strength and durability.
| Length | 141mm |
| Collet Capacity | 27mm |
| Nose Diameter | 72mm |
| Product Range | Pullback Collet Chuck |
| Spindle Mount | A2-6 |
| Capacity | 27mm |
