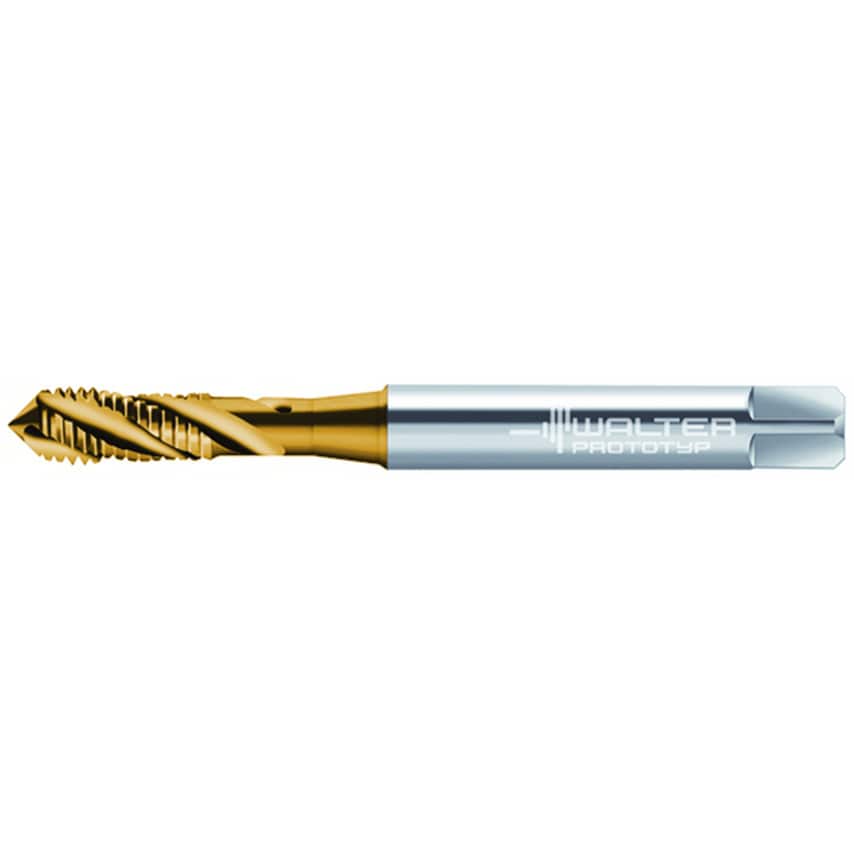

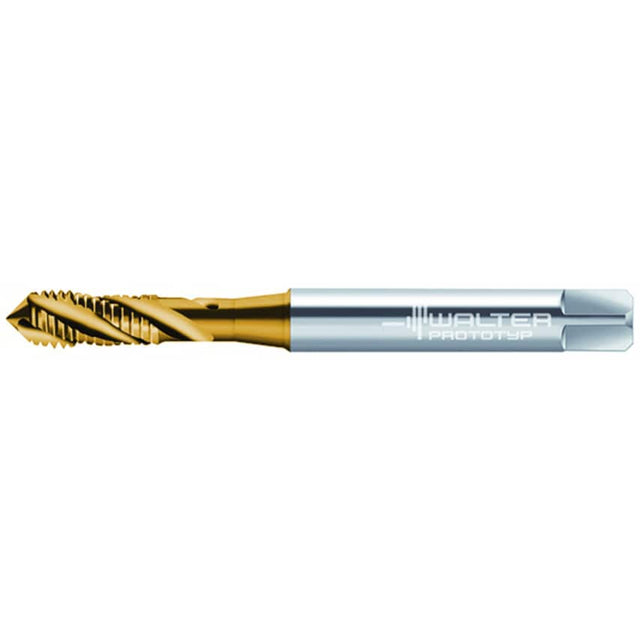

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD UNF/2B DIN 2184-1 right hand flute 40 Suitable for blind hole TIN UNF 1/4-28 P=28
| Thread Size | UNF 1/4-28 |
| MFR Part No. | 6150010 |
| Tool Designation | M2351305-UNF1/4 |
| Functional Length | 80mm |
| Cutting Edge Length | 10mm |
| Clamping Width | 5.5mm |
| Connection Diameter | 7mm |
| Driving Square Length | 8mm |
| Usable Length | 30mm |
| Number of Grooves | 3 |
