£1.52
Loading...
Centre cutting.
To Manufacturers Standards.
Cutting diameter to e8.
Shank diameter to h6.

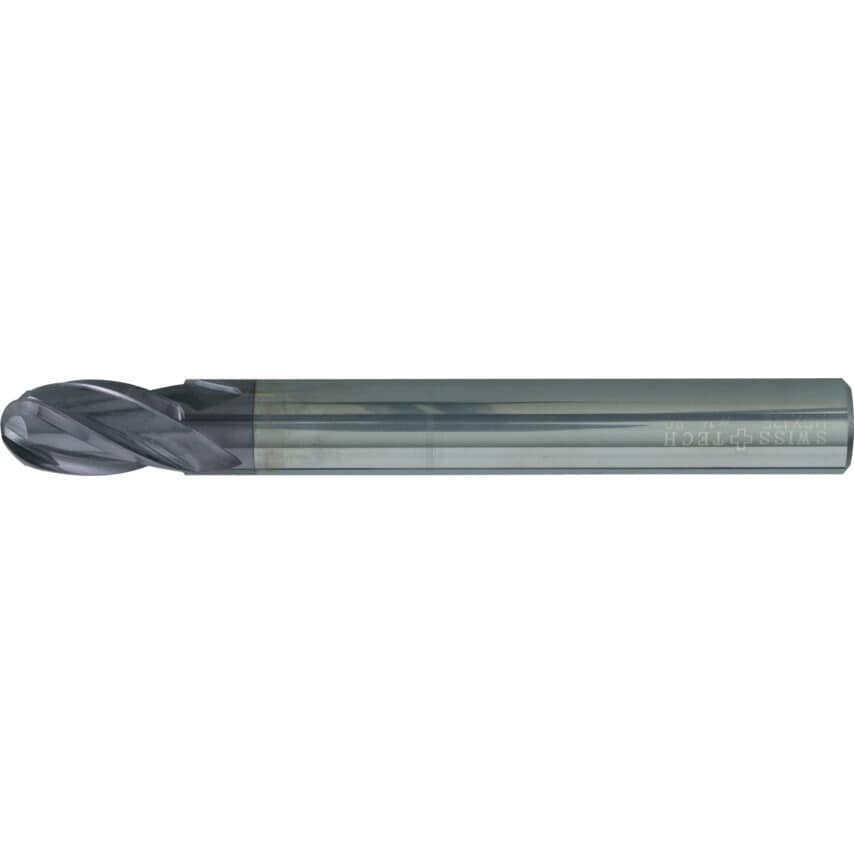

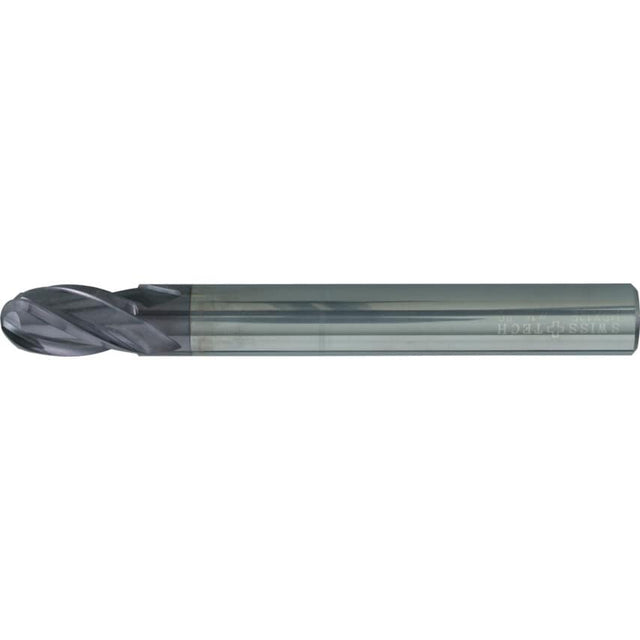

EBQ-4PR Carbide Q-Coat.
Series 80 Long Series
Dimensions to DIN 844.
Carbide Q-Coat
| System of Measurement | Metric |
| Ball Nose Type | Ball Nose End Mill |
| Helix Direction | Right Hand |
| Finish/Coating | Q-Coat |
| Overall Length | 90mm |
| Cutting Diameter (mm) | 6mm |
| Cutter Style | Ball Nose |
| Length Type | Regular |
| Material | Solid Carbide |
| Plunge Type | Centre Cutting |
| Shank Type | Plain Round |
| Standards Met | To Manufacturers Standards .\nDimensions to DIN 844. |
| End Mill Type | End Mill |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Ripper |
| Shank Diameter Tolerance | H6 |
| Series | 80 Long |
| Material Grade | Micrograin |
| Shank Diameter | 6mm |
| Cutter Diameter | 6mm |
| Cutting Direction | Right Hand |
| Reach Type | Regular Series |
| Number of Flutes | 4 |
| Coolant Delivery | External |
| Flute Length | 12mm |
