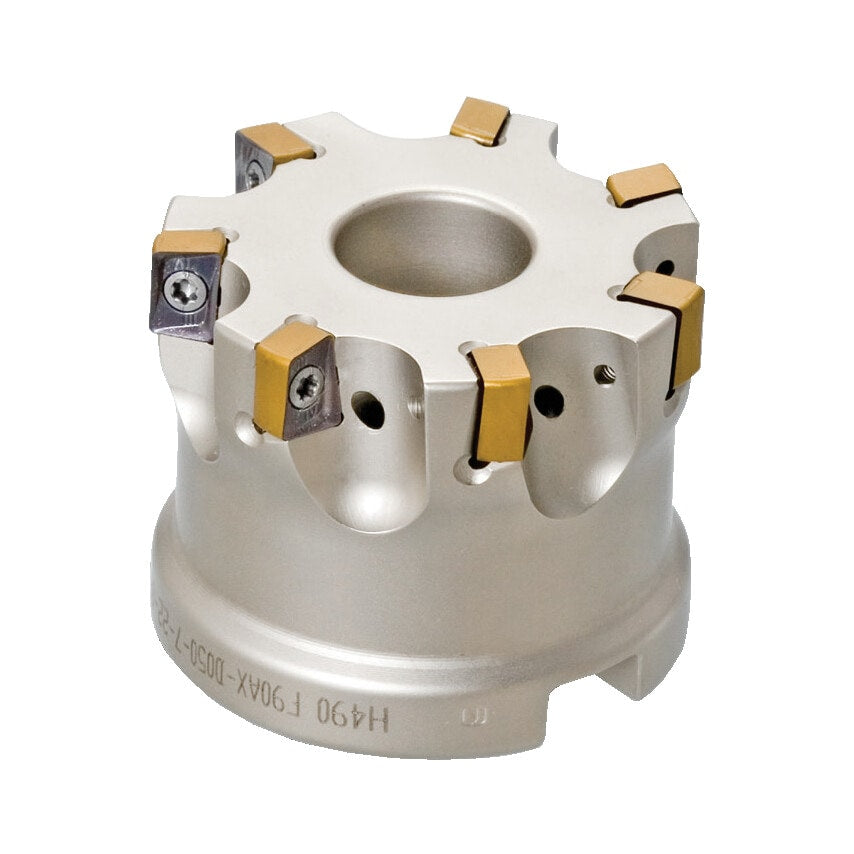

H490 F90AX D063-9-22-09 Helido Face Mill

H490 F90AX...-09 Face Mills Face Mills with double-sided inserts, diameter range 32-63mm. The new HELIDO H490 ANKX rectangular inserts have 4 helical right-hand positive cutting edges. They were designed in cutting edge lengths of 9, 12 and 17 mm. Insert construction is very thick and strong; clamped into a dovetail inclined pocket which provides a very rigid clamping and has a wiper which leaves an excellent surface finish. Due to its strong construction, unique chip deflector with positive cutting angles and excellent grade combinations, this new family features high durability, low cutting forces and long tool life. Our most advanced SUMO TEC grades ensure excellent performance and reliability. The new HELIDO tools can be used for machining steel, stainless steel and cast iron at very high machining parameters. HELIDO's state-of-the-art of milling insert design, enables excellent performance and extremely high productivity. H490 - A new family of double-sided inserts with 4 helical cutting edges.

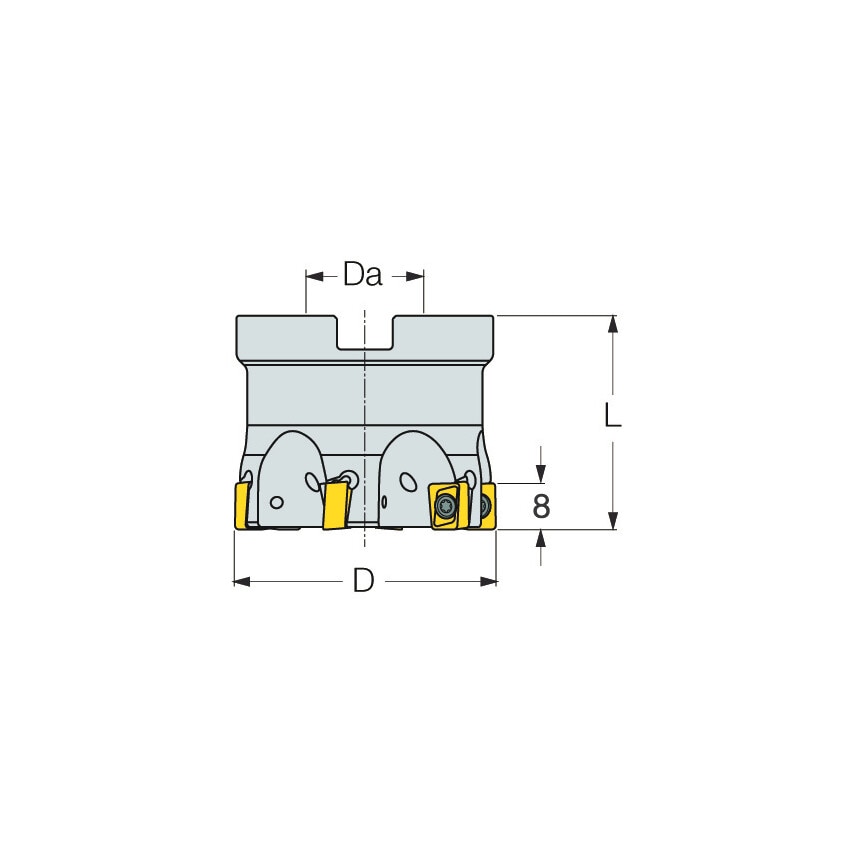

Maximum Cutting Diameter	63mm
Number of Inserts	9
Insert Size	0904
Series	Helido 490
Depth of Cut	8mm
Milling Application	Facing | Shouldering | Side Plunging | Slotting
Cutting Edge Angle	90\u00b0
MFR Part No.	3105276
Insert Style	H490 ANKX
ISO Designation	H490 F90AX D063-9-22-09
Arbor Hole Diameter	22mm
Coolant Delivery	Coolant Through
Height	40mm
Insert Shape	Rectangle
