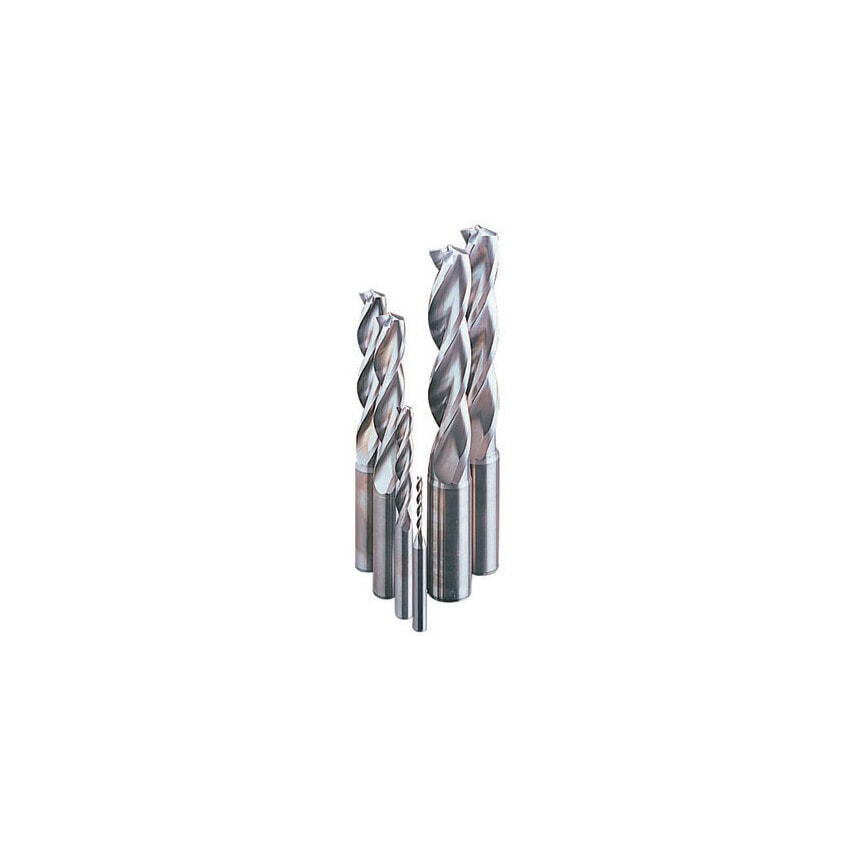

Grade K10, for drilling cast iron, aluminium, and titanium alloys. Up to 5x diameter drilling depth. Available in straight or whistle notch shank. Manufactured to H7 DiN 6539 (reamer tolerance). More sizes available.
Product Specifications:
Max Cut Length (mm): 23.
Shank Diameter (mm): 6.
Shank Type: Straight.
Cut Diameter (mm): 3.00.
Flute Length (mm): 23.00.
Overall Length (mm): 66.00.
Coating /Finish: Uncoated.
| Drill Depth | 23mm |
| Maximum Cutting Diameter | 23.00mm |
| Overall Length | 66.0mm |
| Depth of Cut | 3.00mm |
| Head Type | Not Modular |
| Length | 66.0mm |
| Product Type | TF Drill |
| Drill Diameter | 3.0mm |
| Finish/Coating | Uncoated |
