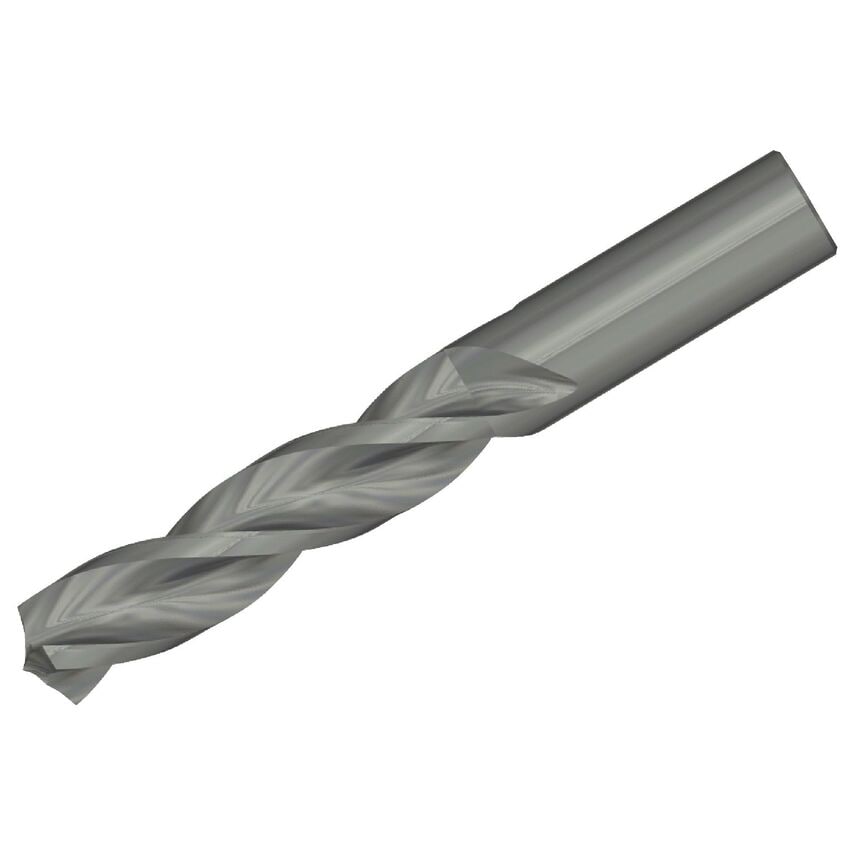

TF Drills High Metal Removal Rates Without Coolant
Solid Carbide Drills
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 20.0000mm |
| Helix Angle | 30.000 |
| Overall Length | 153mm | 153.0000mm |
| Drill Point | 4.996mm |
| Functional Length | 148.0040mm |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Shank Length | 50.0000mm |
| Coolant Supplied | No |
| Flute Construction | Helical Flute |
| Drill Diameter | 20.0000mm |
| Clamping Length | 50mm |
| Number of Flutes | 3 |
| Assembly Length | 98.004mm |
| Gage Length | 103mm |
| MFR Part No. | 1191469 |
| Drill Depth | 77mm | 77.0000mm |
| Finish/Coating | Uncoated |
| Unit Measured | Metric |
| Adapter Style | Straight-Cylindrical |
| Flute Length | 101mm | 101.0000mm |
| Adapter Type | Cylindrical |
| Drill Diameter Tolerance | 0.008000 to 0.029000mm |
| Coolant Delivery | No Coolant |
