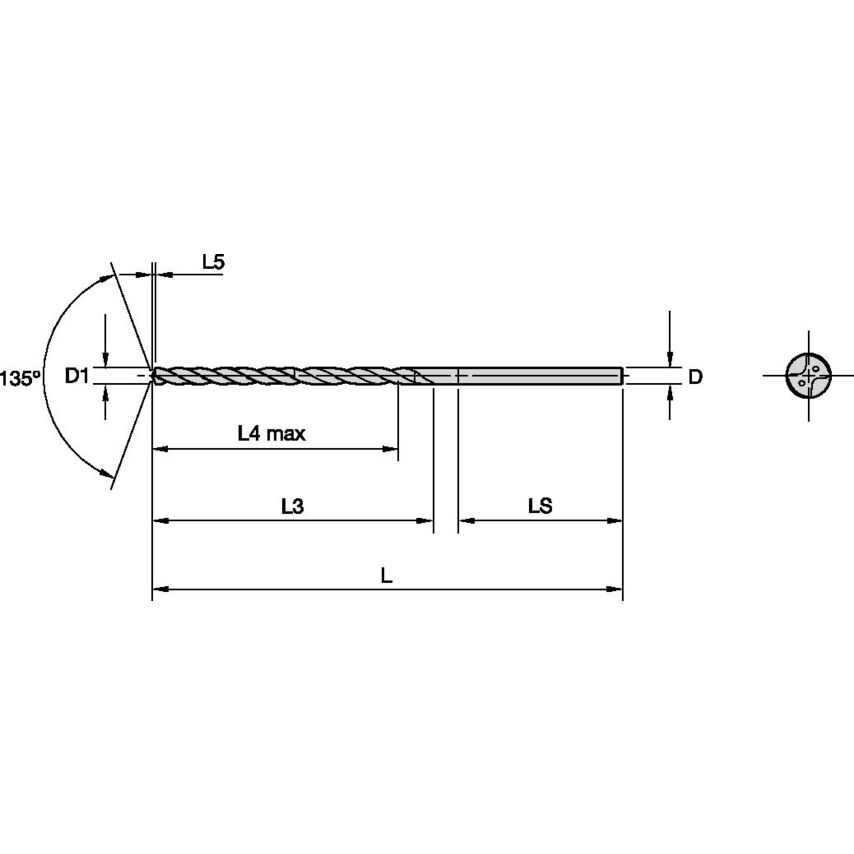

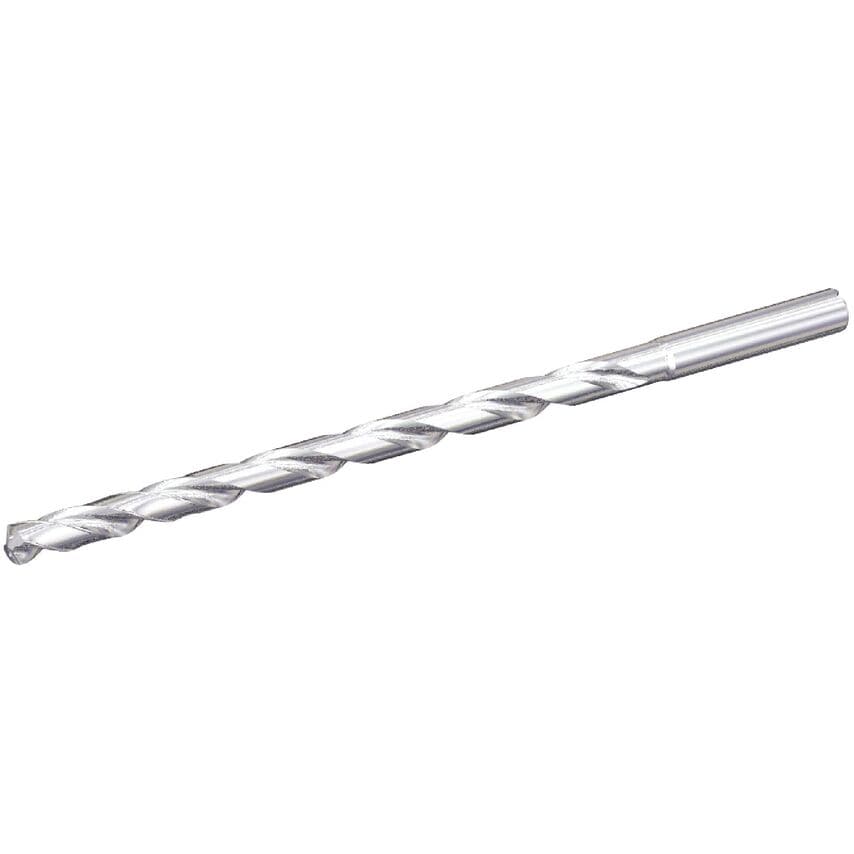

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Drill Point | 0.85mm |
| Number of Flutes | 2 |
| Helix Angle | 29.997 |
| Primary Material | Steel |
| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Flute Length | 87mm | 87.0000mm |
| Adapter Type | Cylindrical |
| Drill Depth | 75mm | 75.0000mm |
| Coolant Diameter | 0.4900mm (0.0882in) |
| Overall Length | 124mm | 124.0000mm |
| Adapter / Shank / Bore Diameter | 5.0000mm |
| Assembly Length | 109.65mm |
| MFR Part No. | 6351194 |
| Functional Length | 123.1500mm |
| Drill Diameter | 5.0000mm |
| Material | Carbide |
| Finish/Coating | Uncoated |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Flute Construction | Helical Flute |
| Shank Length | 34.0000mm |
| Adapter Style | Straight-Cylindrical |
