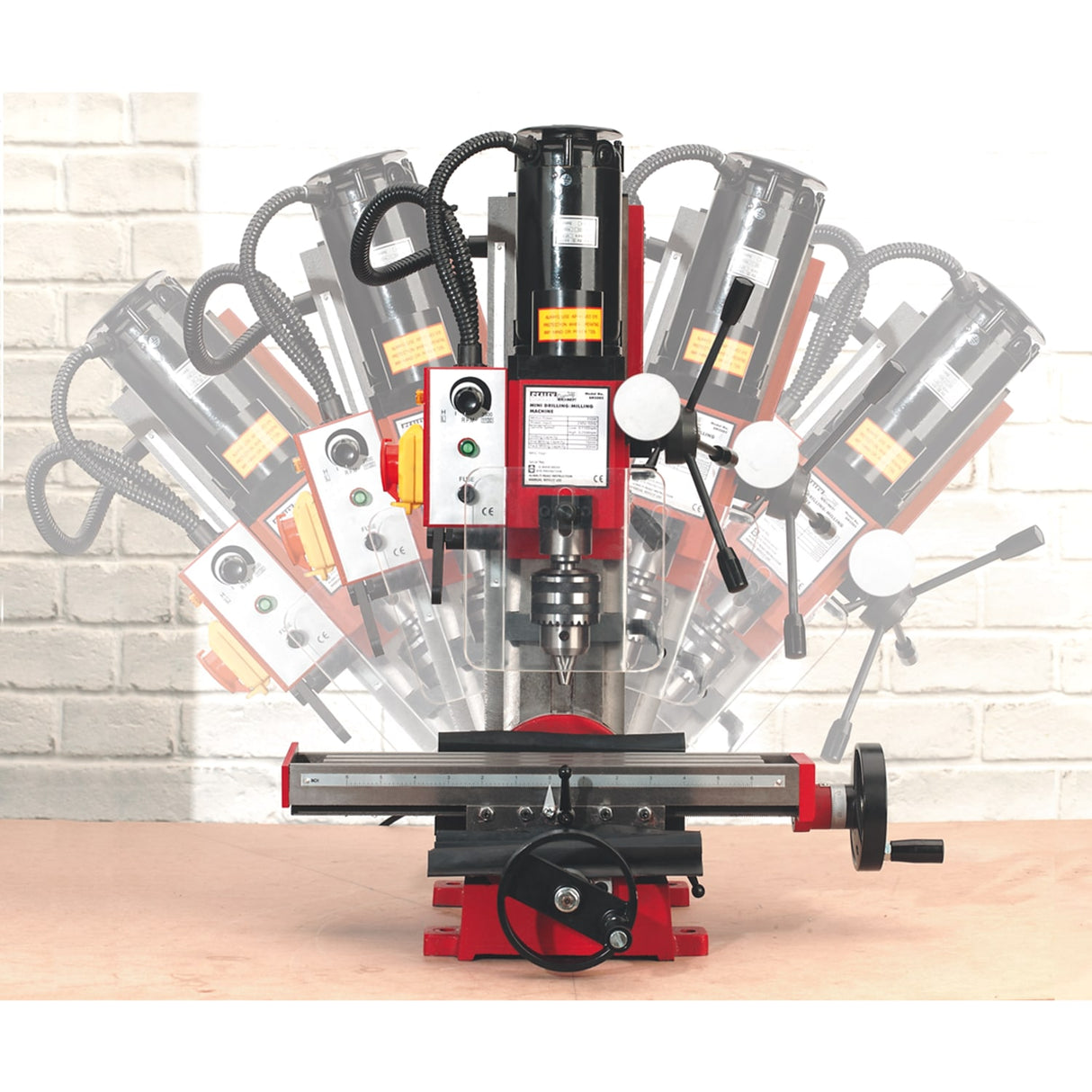

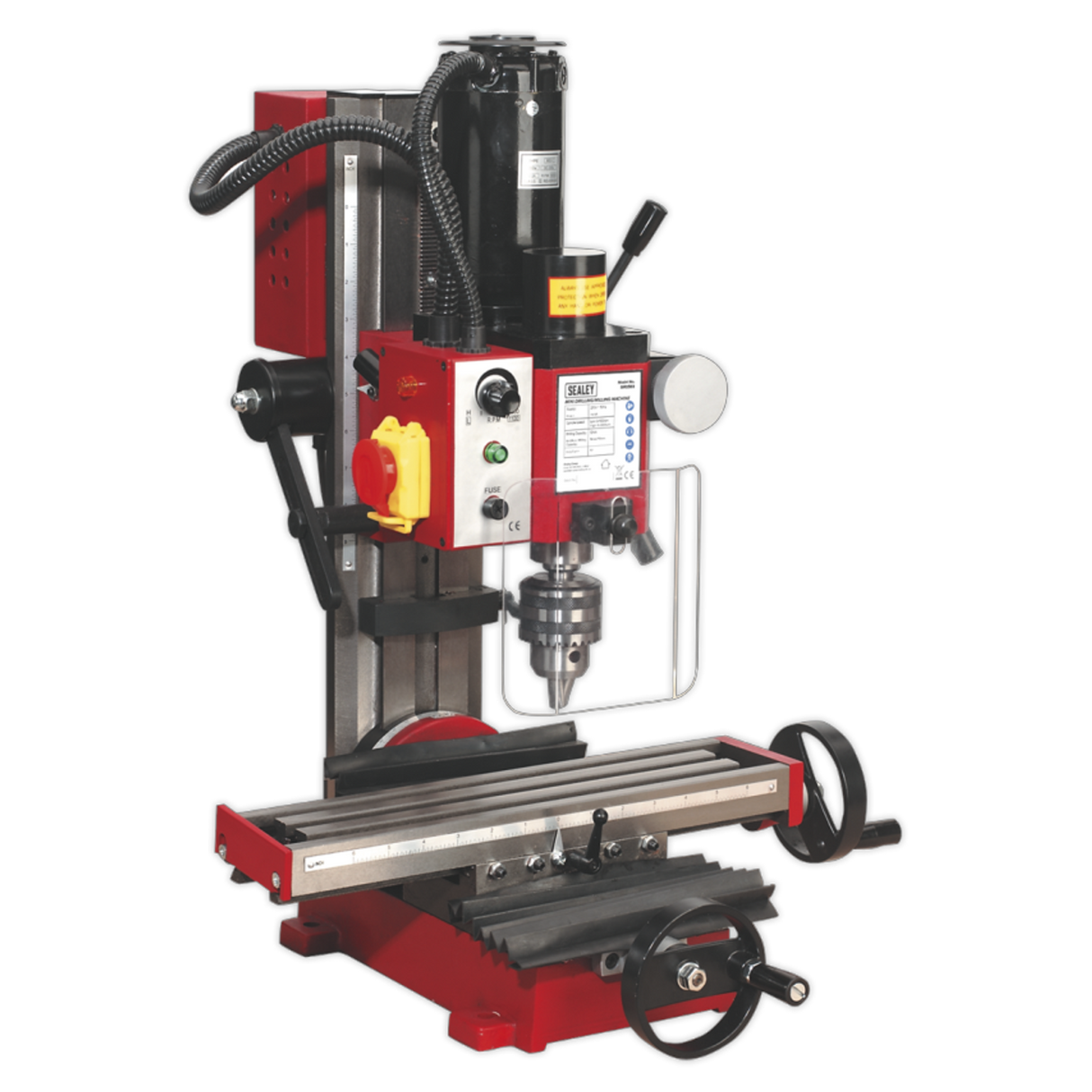

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at 45 from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
| Face Mill Capacity | 30mm |
| Spindle Nose Taper | MT3 |
| T-Slot Size | 12mm |
| End Mill Capacity | 16mm |
| Spindle Speed - High Range | 0-2500rpm |
| Spindle Tilt Angle | 45 |
| Supply | 230V |
| Motor Power | 350W |
| Longitudinal Axis | 220mm |
| Spindle Speed - Low Range | 0-1100rpm |
| Cross Axis | 100mm |
| Weight | 68kg |
| Headstock Travel | 180mm |
| MFR Part No. | SM2502 |
| Drilling Capacity | 13mm |
