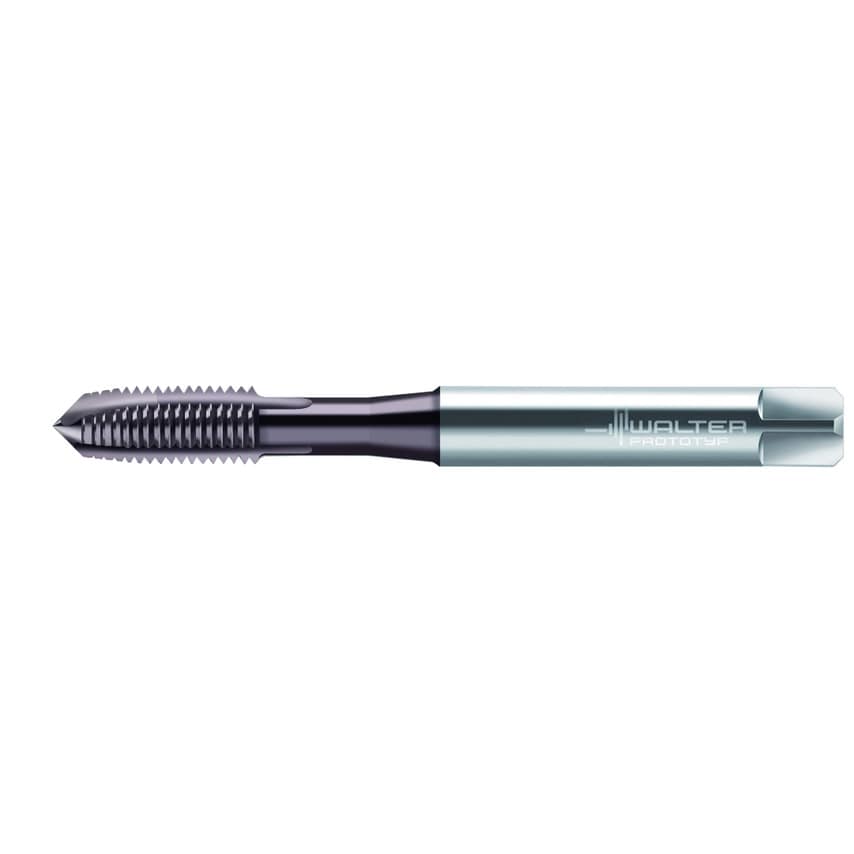

HSS-E PM machine taps Prototex Eco Plus B = 3.5-5xTP (plug chamfer) 3,5xD UNF/2B DIN 2184-1 Suitable for through hole THL UNF #10-32 P=32
| Tool Designation | EP2321302-UNF10 |
| Number of Grooves | 3 |
| Shank Diameter | 6mm |
| MFR Part No. | 6432583 |
| Clamping Width | 4.9mm |
| Driving Square Length | 8mm |
| Overall Length | 70mm |
| Thread Size | UNF #10-32 |
| Usable Length | 25mm |
| Cutting Edge Length | 13mm |
