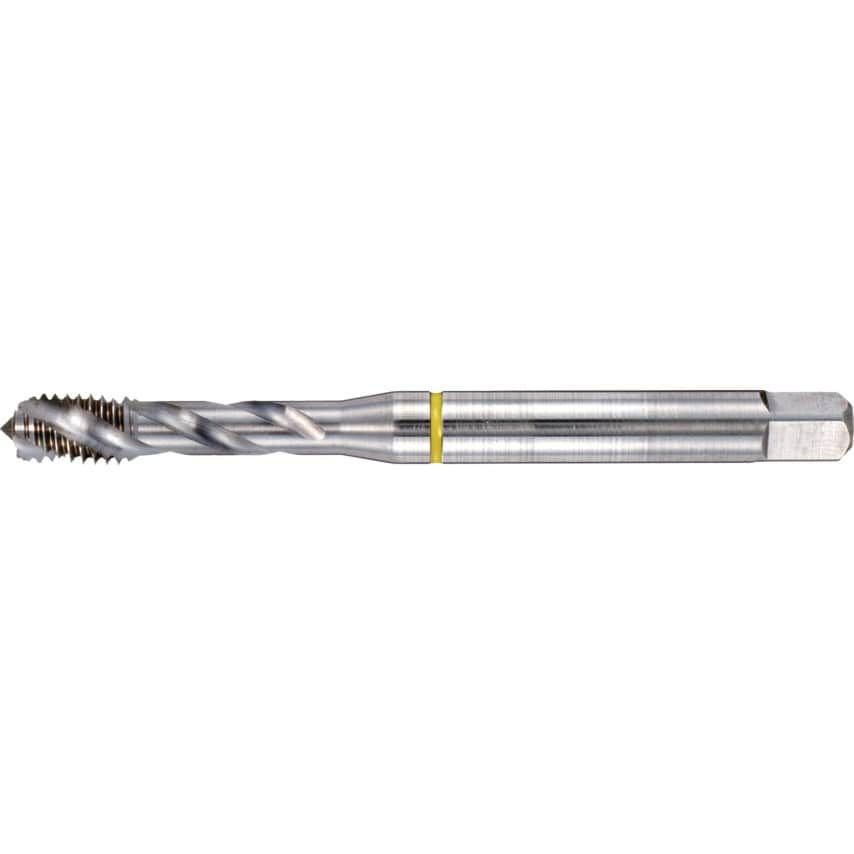

Also available in Metric Fine thread form (E300)Excellent for Application Good for ApplicationE298 - Hard Chrome
| Thread Form | M - Metric coarse |
| Shank | Cylindrical Shank with Square |
| Shank Diameter | 8mm |
| Material | HSS-E-PM |
| Cutting Direction | Right |
| Overall Length | 90mm |
| Pitch | 1.25mm |
| Product Series | E298 |
| Standards | DIN 371 |
| Thread Standard | Metric Coarse |
| Class of Fit | 6H |
| Series | E298 |
| Square Width | 6.2mm |
| Number of Flutes | 3 |
| Thread Direction | Right Hnd |
| Unit of Measurement | Metric |
| Tapping Depth | 35mm |
| MFR Part No. | E298M8 |
| Thread Length | 13mm |
| Finish | Flash Crome |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Lead | C 2-3 |
| Finish/Coating | Flash Chrome |
| Tap Type | Spiral Flute |
| Tap Application | Blind Hole |
| Material Grade | M35 |
| Dimensions Standard | DIN 371 |
| Product Type | Taps |
| Tap Chamfer Style | C 2 - 3 |
| Thread Size | M8 |
