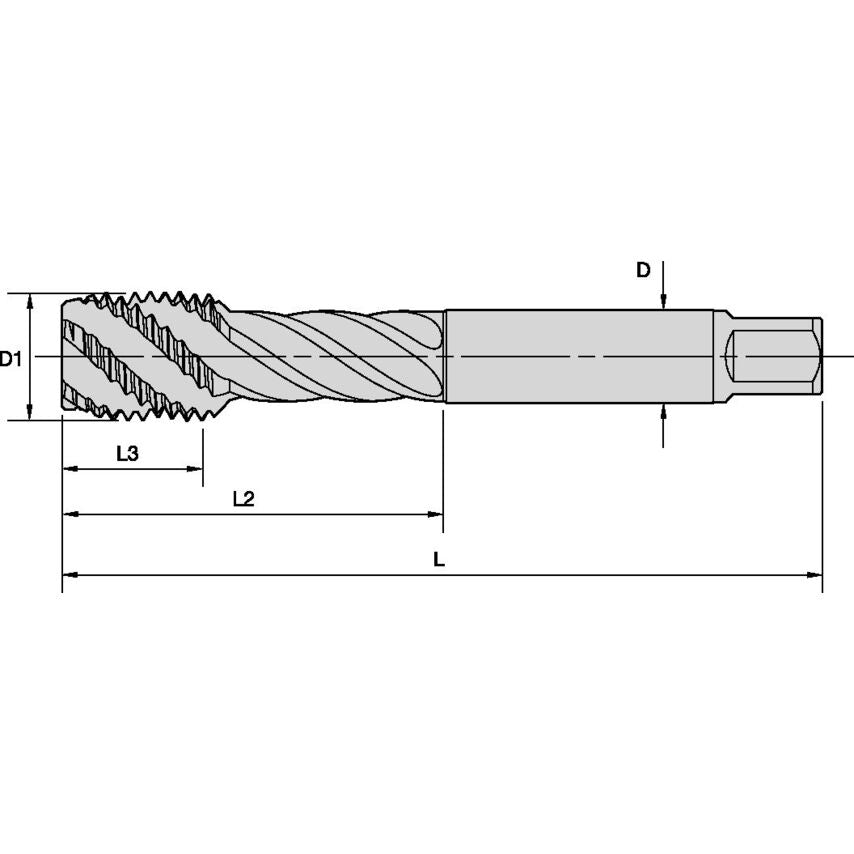

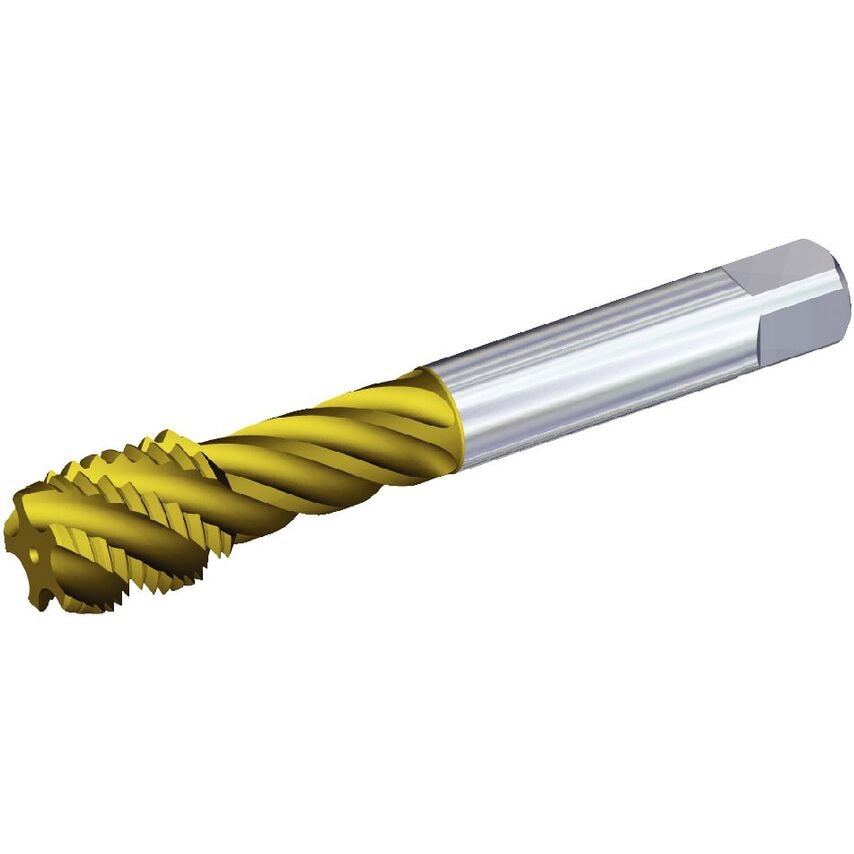

T630 - DIN 371, 374, and 376 - Form C Semi-Bottoming Chamfer - Metric - For Steel and Stainless Steel
| Overall Length | 90.0000mm | 90mm |
| Neck Length | 22mm | 22.0000mm |
| Tap Design | S - HSS |
| MFR Part No. | 3868942 |
| Tap Application | 2 - Blind Hole |
| Coating | TiN |
| Number of Flutes | 3 |
| Adapter Type Machine Side | Cylindrical |
| Thread Pitch | 1mm |
| Cutting Tool Material | Hss-E-Pm |
| Unit Measured | Metric |
| Hand Preference | Right |
| Thread Pitch Style | Metric Fine |
| Thread Length | 13.0000mm |
| Thread Diameter | 8mm |
