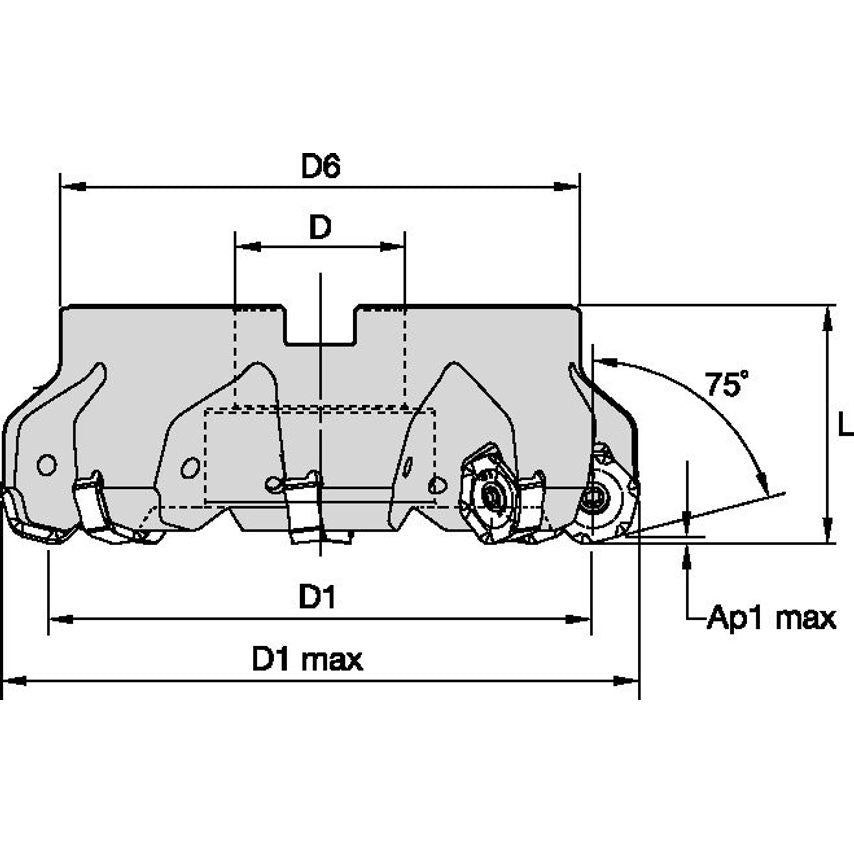

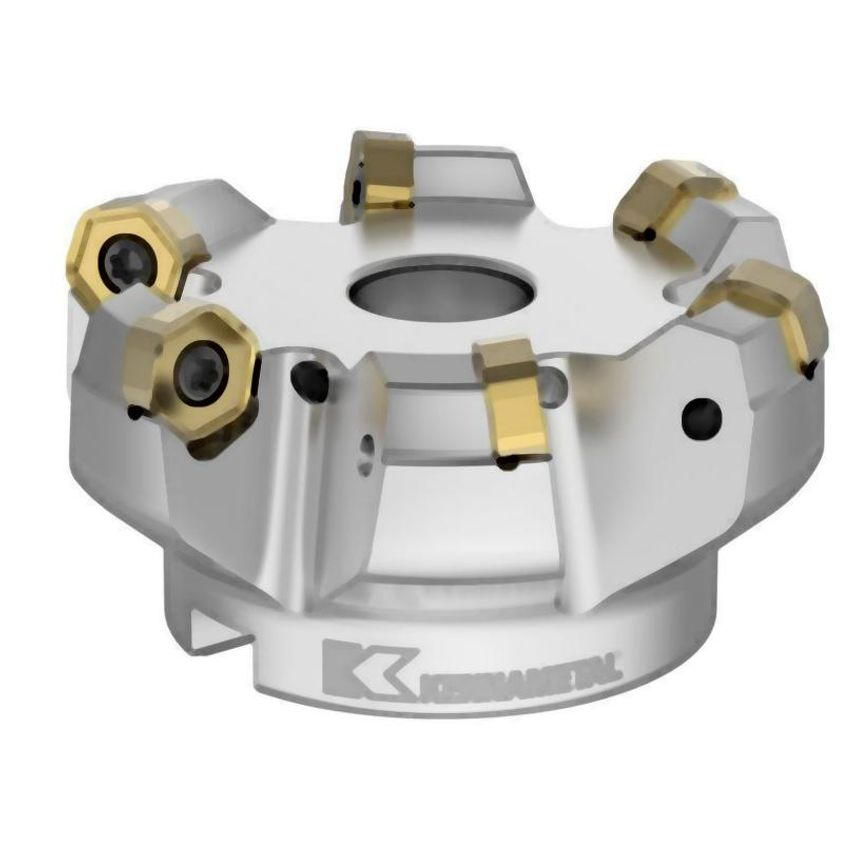

Shell MillsDodeka High-Feed (HF) 75
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Max. Depth of Cut | 2.2100mm |
| Unit Measured | Imperial |
| Clamp Type | Screw Clamping |
| Number of Inserts | 8 |
| Maximum Cutting Diameter | 120.522mm |
| Center Cutting Tool | No Center Cutting |
| Body Diameter Max | 117.9mm |
| Adapter Type Machine Side | Shell Mill |
| Milling Application | Face Mill |
| Insert Shape | H-Hexagon 120 |
| Number of Flutes | 8 |
| Hub Diameter | 97mm | 97.0000mm |
| Body Material | Steel |
| MFR Part No. | 4047422 |
