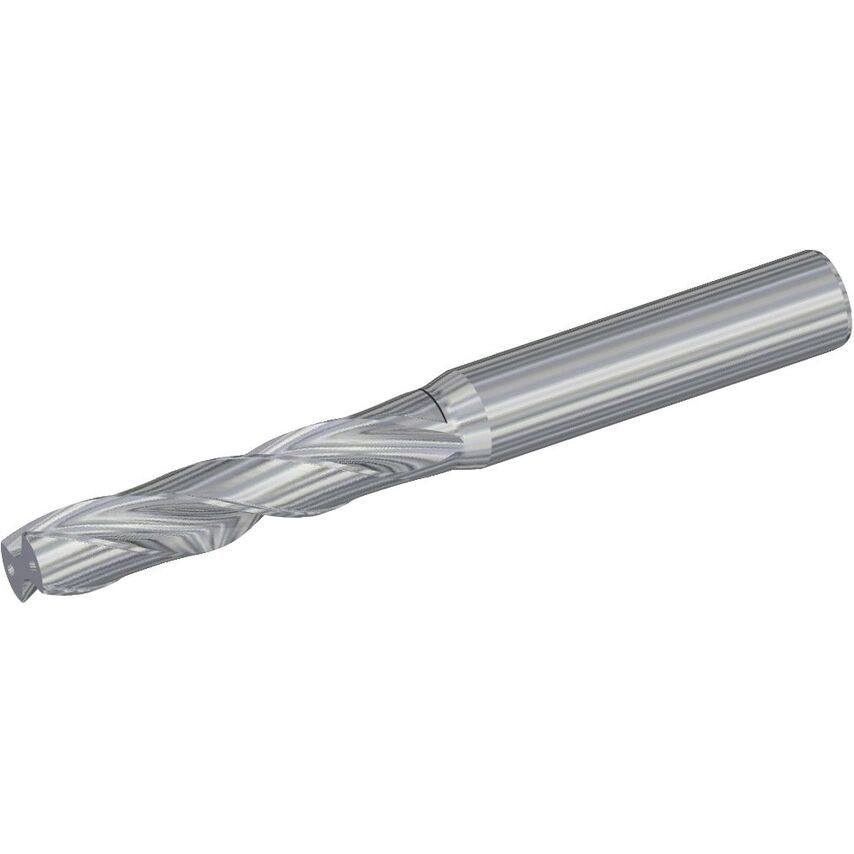

180 Flat-Bottom Drills Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Assembly Length | 61.55mm |
| Number of Flutes | 2 |
| Material | Carbide |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Drill Diameter | 14.0000mm |
| MFR Part No. | 3894852 |
| Drill Depth | 43mm | 43.0000mm |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Clamping Length | 45mm |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 107mm | 107.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Construction | Helical Flute |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 29.324 |
| Shank Length | 45.0000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Functional Length | 106.5500mm |
| Flute Length | 60mm | 60.0000mm |
| Primary Material | Non-Ferrous Materials |
