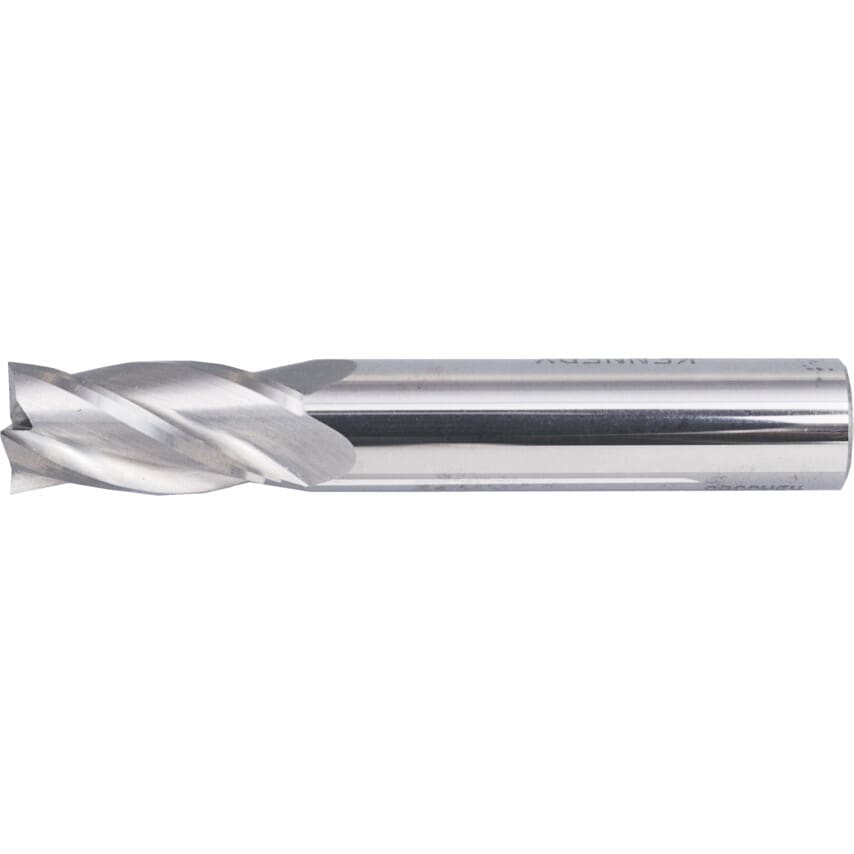

4 Flute: Regular Series - Inch
Centre cutting as standard. For maximum strength when milling harder materials where rapid swarf removal is not needed. 4 flute milling cutters have one of the strongest tooth structures available in solid cutters. Manufactured to Works Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| MFR Part No. | E5021008 |
| Material | Carbide |
| Coolant Delivery | External |
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 1/8in |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| Cutter Style | Square End |
| End Mill Type | End Mill |
| Plunge Type | Centre Cutting |
| Shank Type | Plain Round |
| Milling Cutter Type | End Mills |
| Overall Length | 1-1/2in |
| Cutter Diameter | 1/8in |
| Helix Angle | 30\u00b0 |
| Flute Length | 1/2in |
| Finish/Coating | Uncoated |
| Number of Flutes | 4 |
| Cutting Direction | Right Hand |
| System of Measurement | Inch |
| Length Type | Regular |
