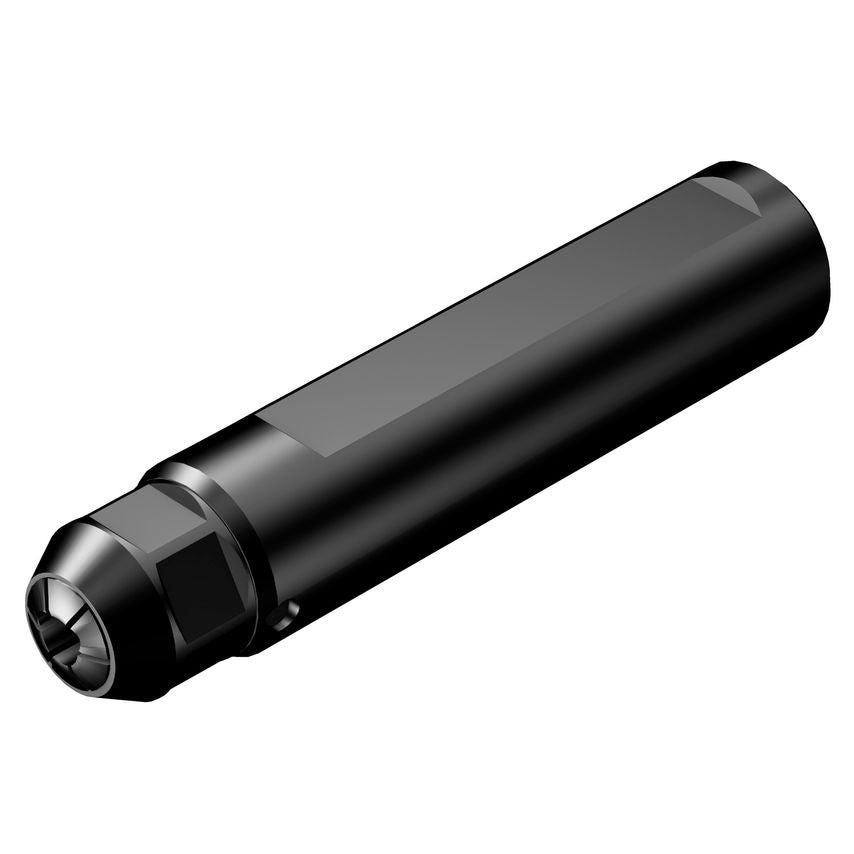

Product Range: CoroTurn XSInternal machining of small high quality featuresHigh precision and repeatabilityThese high-quality ground tools are designed for exact cutting-edge position, enabling high precision and repeatability in internal turning machining.Locking precisionThe solid carbide boring bar fits precisely into the adaptor with a locating pin. Collet-clamped adaptors ensure rigid clamping with increased stability.Internal coolantAll adaptors for CoroTurn XS are designed with internal coolant supply. Collet-clamped adaptors have selectable coolant direction for better chip evacuation and safe machining.Features & Benefits- Internal turning, diameters from 0.3 mm- Turning, threading, parting and grooving- Close tolerancesApplication area- For internal finishing applications- Hole diameter: 0.37.2 mm (0.0120.283 inch)- Internal turning, copying, back boring, profiling, grooving, pre-parting and threading- Face grooving
| MFR Part No. | 7047019 |
| Maximum Overhang | 26.5mm |
| CoroPak | 110 |
| Weight | 115.4g |
| Hand Preference | Neutral |
| Functional Length | 75mm |
| Adaptive Interface Workpiece Direction | CoroTurn XS - Metric |
| Body Diameter | 0.65in |
| Body Material Code | 19.3 |
| Damping Property | 66 |
| Through Hole Function Property | Yes |
| Unit System | Imperial |
| Body Material | Steel |
| Connection Diameter | 15.875mm |
| Coolant Entry Style Code | 30 |
| Coolant Exit Style Code | 3 |
