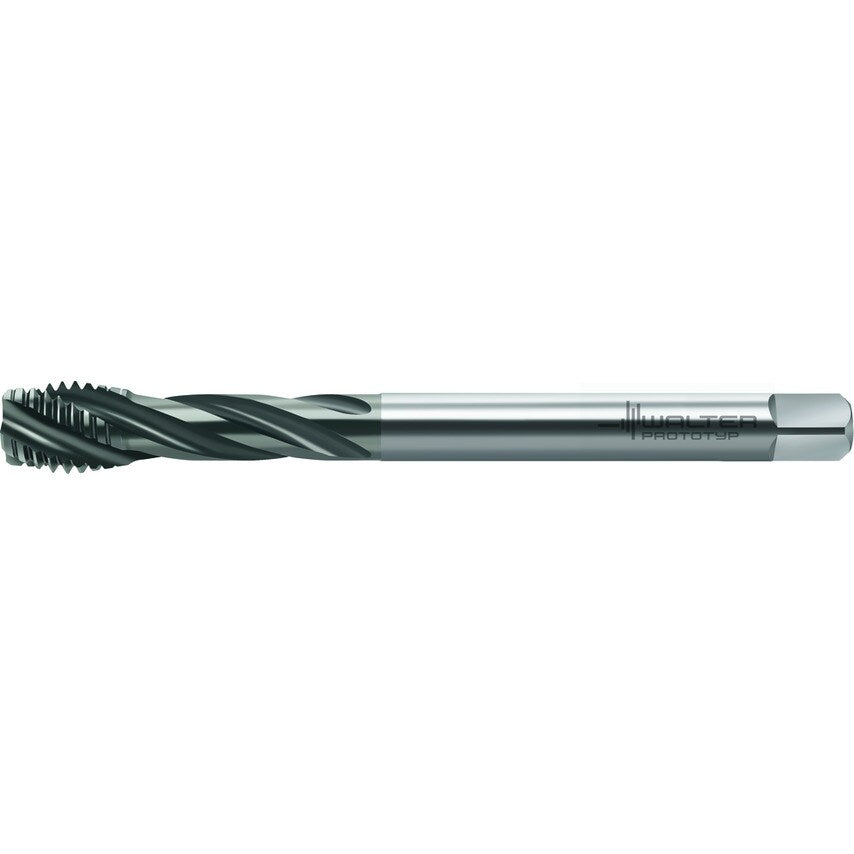

HSS-E (-PM) machine taps Supreme C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX DIN 376 right hand flute 40 Suitable for blind hole WW60RG M 16 P=0.0787in
| Clamping Width | 9mm |
| Driving Square Length | 12mm |
| Thread Size | M 16 |
| Cutting Edge Length | 20mm |
| Usable Length | 68mm |
| Functional Length | 110mm |
| MFR Part No. | 7240828 |
| Thread Pitch | 2mm |
| Number of Grooves | 4 |
| Connection Diameter | 12mm |
| Tool Designation | TC121-M16-L1-WW60RG |
