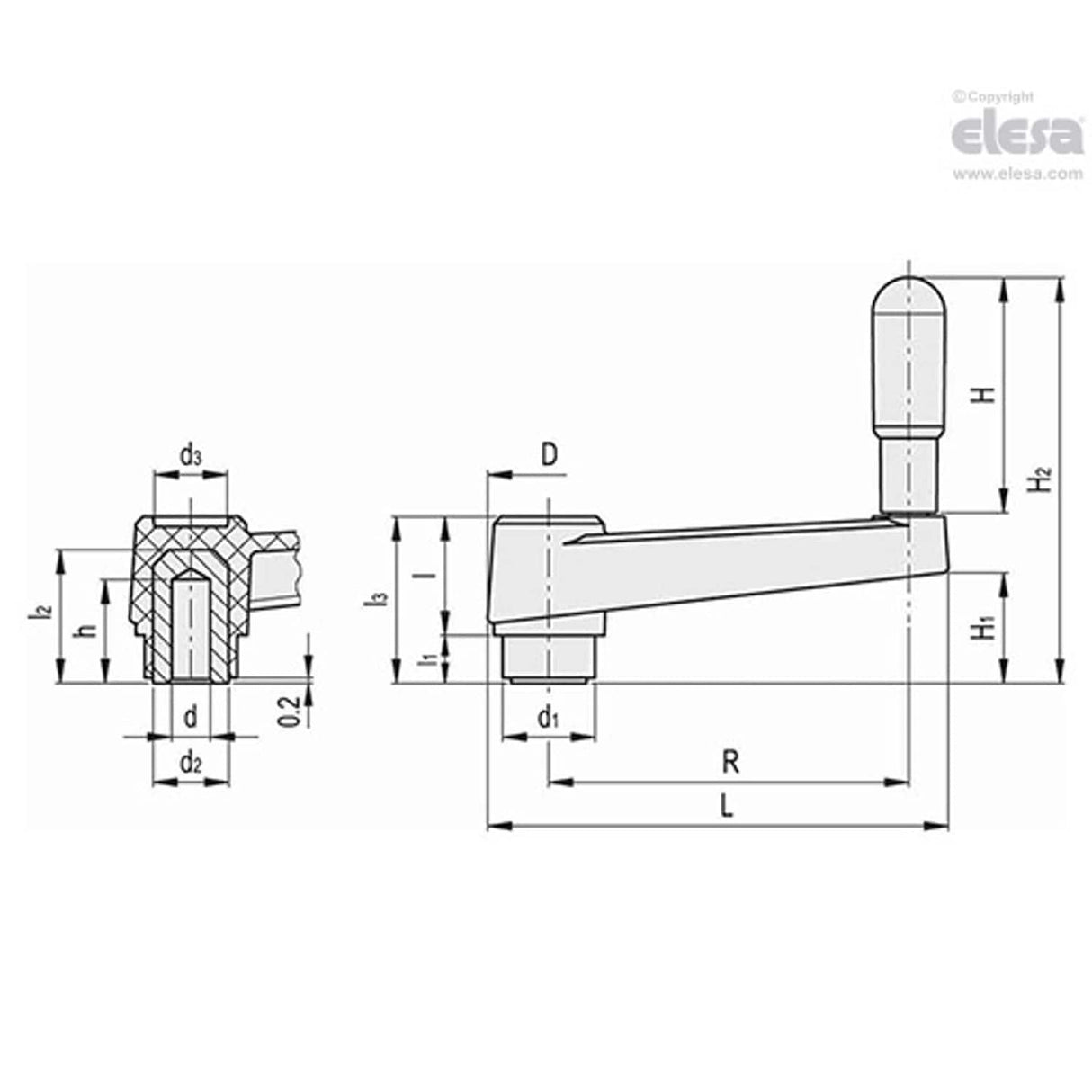

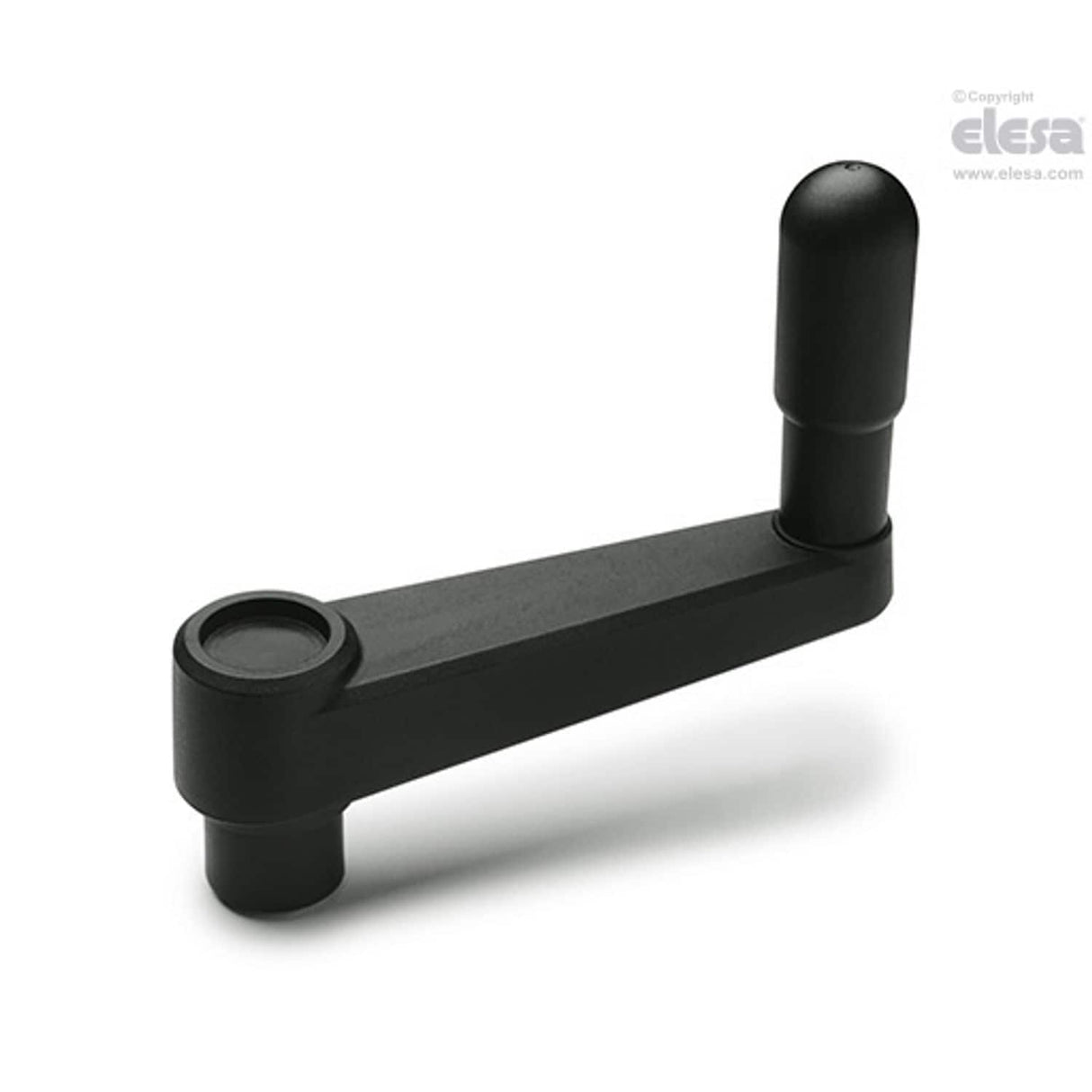

MT-AT Crank handles, Technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| L | 86 |
| l | 22.5 |
| d1 | 20 |
| h | 20 |
| d2 | 15 |
| d(H9) | 8 |
| H | 45 |
| H2 | 78 |
| L# | 11J |
| Weight | 84g |
| l2 | 25 |
| D | 26.5 |
| C# | 120Nm |
| d3 | 16 |
| MFR Part No. | MT.64-AT |
| Diameter | 26.5mm |
| R | 64 |
| l3 | 31.5 |
| H1 | 17.5 |
| l1 | 9 |
