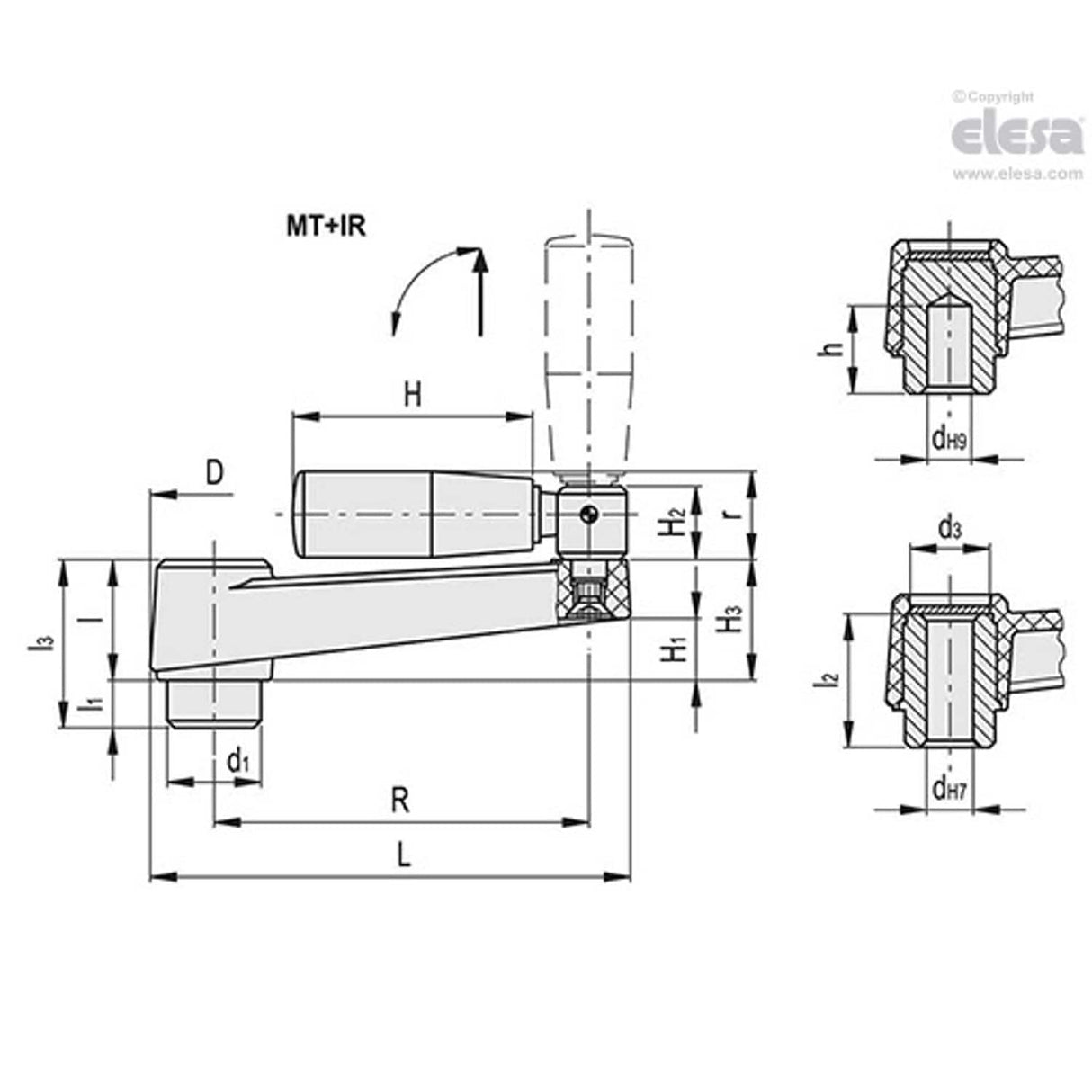

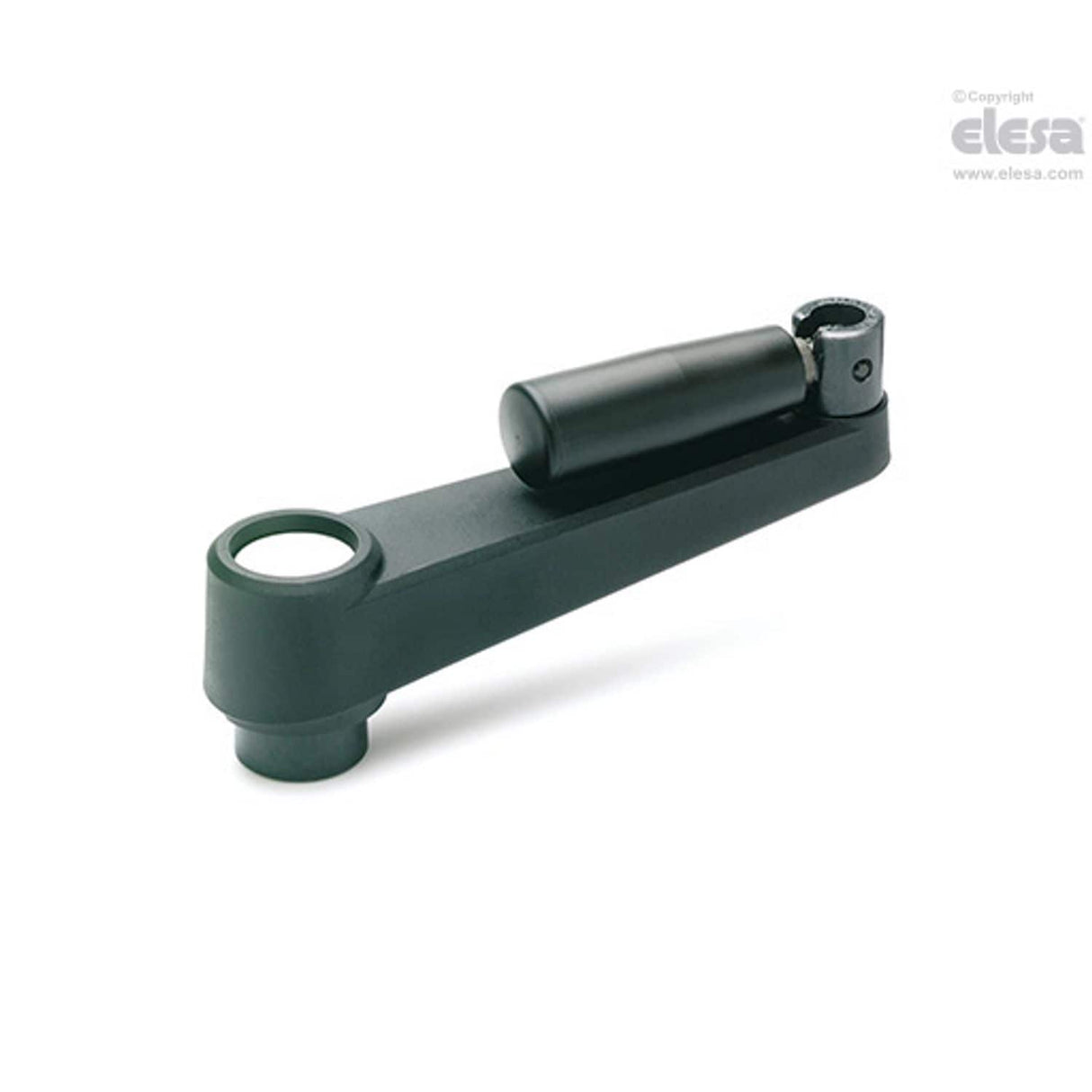

MT. Crank handles, Technopolymer, Fold-away handle, drilled hub For product drawing and dimensions refer to pdf Item data sheet.
| r | 24 |
| d1 | 34 |
| L | 198 |
| l3 | 55 |
| d(H9) | 10 |
| H3 | 40 |
| Diameter | 45mm |
| h | 30 |
| R | 160 |
| D | 45 |
| H2 | 20 |
| l | 40 |
| H1 | 23 |
| l2 | 49 |
| d3 | 27 |
| C# | 450Nm |
| l1 | 15 |
| H | 80 |
| Weight | 526g |
| MFR Part No. | MT.160+IR |
| L# | 55J |
