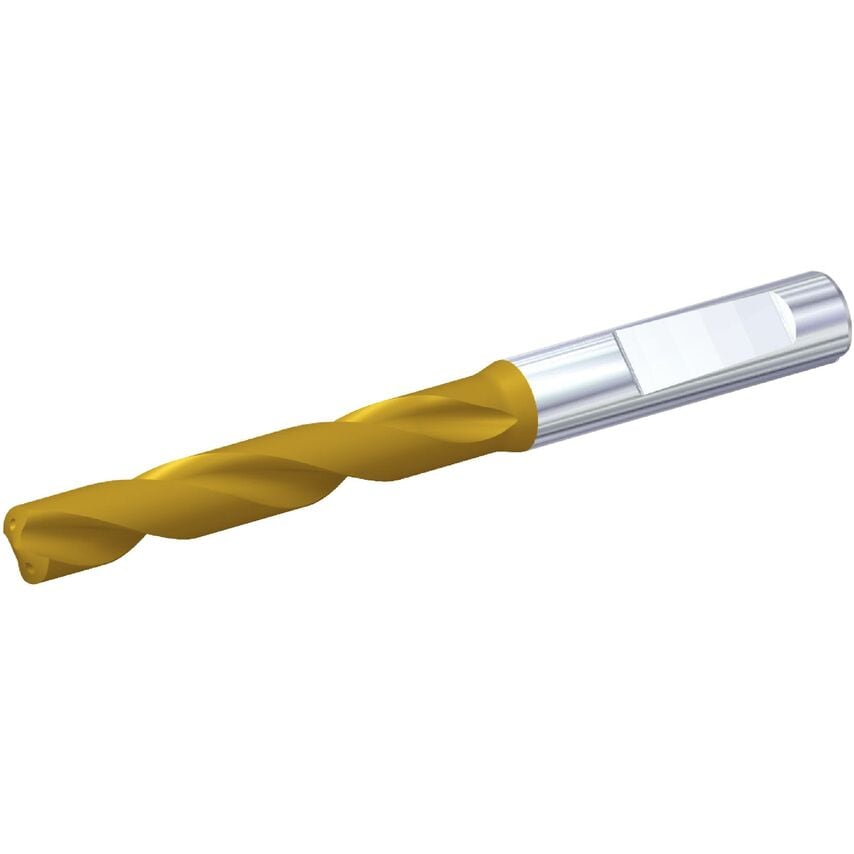

GOdrill Wide Range of Materials Through CoolantSolid Carbide Drills
| Drill Diameter | 9.4000mm |
| Material | Carbide |
| MFR Part No. | 4148973 |
| Number of Flutes | 2 |
| Overall Length | 89mm | 89.0000mm |
| Coolant Diameter | 1.4400mm (0.0567in) |
| Shank Length | 40.0000mm |
| Drill Depth | 35mm | 35.0000mm |
| Coolant Supplied | Yes |
| Flute Construction | Helical Flute |
| Drill Point | 1.6mm |
| Clamping Length | 40mm |
| Assembly Length | 45.4mm |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 28.673 |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Primary Material | Stainless Steel |
| Flute Length | 47mm | 47.0000mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Adapter Type | Cylindrical |
| Finish/Coating | TiN |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Hand Preference | Right |
| Unit Measured | Metric |
| Functional Length | 87.4000mm |
