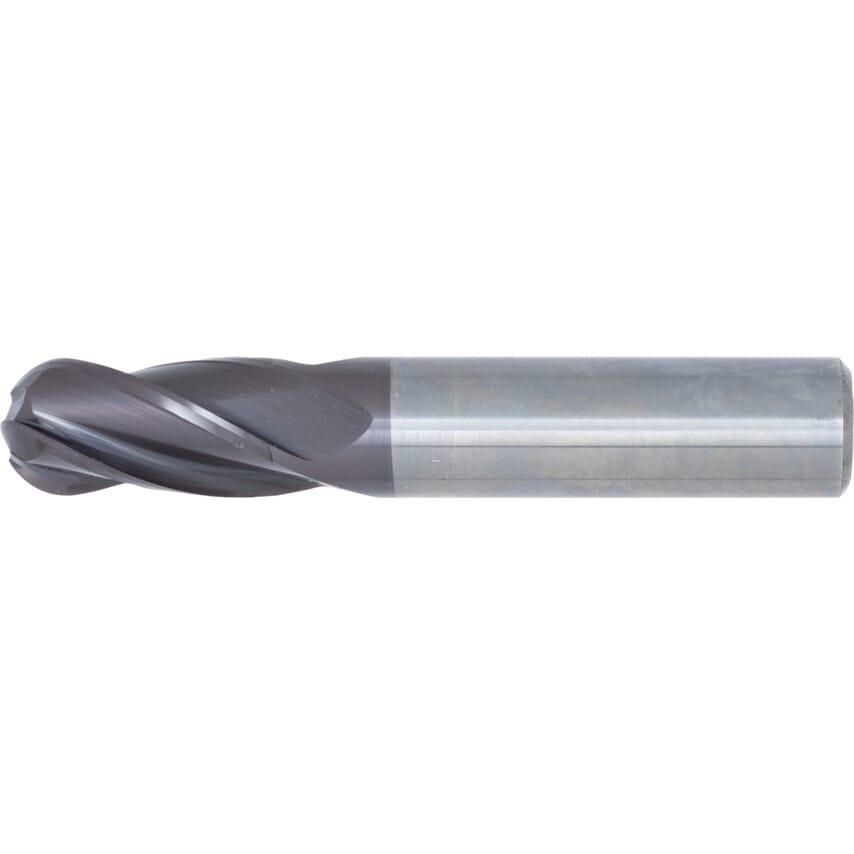

Series 3727 FIREX Carbide Ball Nosed End Mill feature a solid carbide construction for improved rigidity when used in machining applications and Guhrings own FIREX coating to help reduce wear and improve heat resistance.
Features and Benefits
Hard carbide construction for added strength and rigidity
FIREX coating helps improve heat resistance
Wear resistant properties prolongs tool life
Typical Applications
Milling
Steel
Stainless steel
Cast iron
Notes
Available in sizes 14mm-16mm
| Flute Type | Helical |
| Material | Carbide |
| Coolant Delivery | External |
| MFR Part No. | 03727 014.000 |
| Corner Radius | 7mm |
| End Mill Type | End Mill |
| Cutter Style | Ball Nose |
| Helix Angle | 30\u00b0 |
| Overall Length | 83mm |
| Flute Length | 26mm |
| Shank Diameter | 14mm |
| System of Measurement | Metric |
| Length Type | Regular |
| Number of Flutes | 4 |
| Shank Type | Plain Round |
| Finish/Coating | FIREX\u00a9 |
| Coating | FIREX |
| Cutter Diameter Tolerance | H10 |
| Diameter | 14.0mm |
| Plunge Type | Centre Cutting |
| Series | 3727 |
| Standards Met | DIN 6528 |
| Cutter Diameter | 14mm |
| ISO Category | P |
| Product Type | End Mills |
