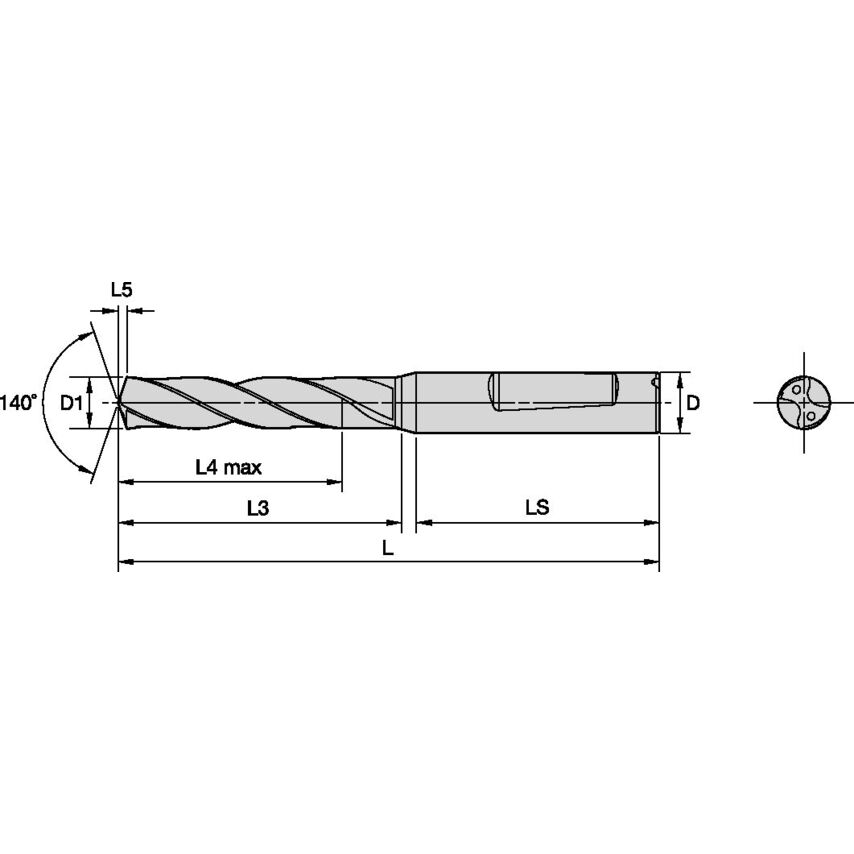

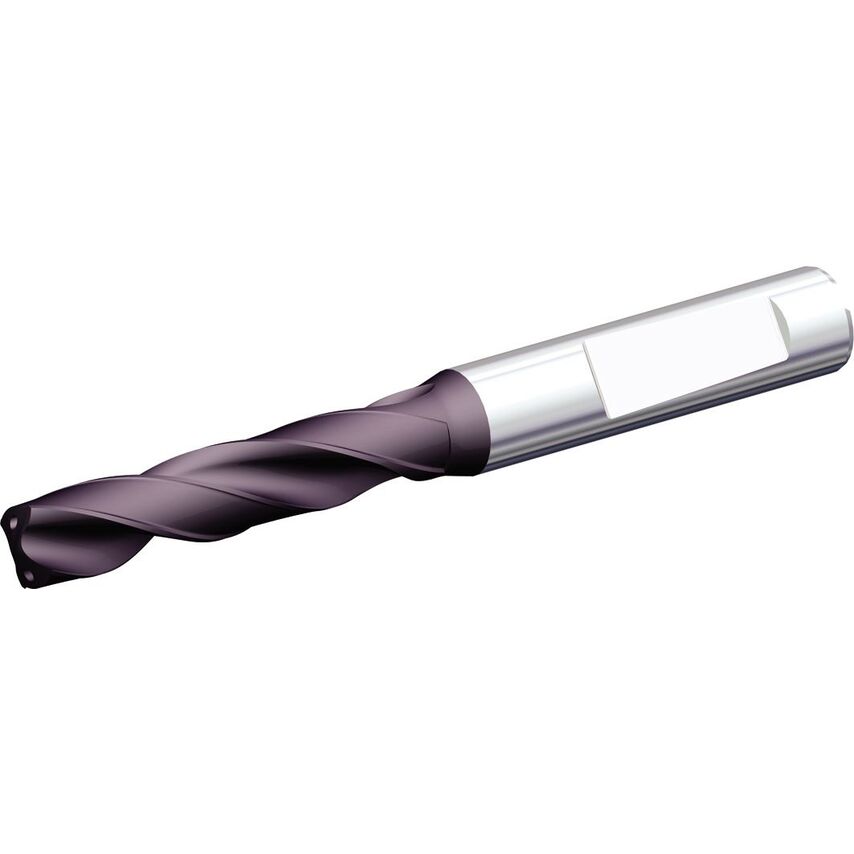

Kenna Universal Drills With Through CoolantSolid Carbide Drills
| Flute Construction | Helical Flute |
| Coolant Supplied | Yes |
| MFR Part No. | 1913775 |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Hand Preference | Right |
| Unit Measured | Metric |
| Assembly Length | 71.258mm |
| Clamping Length | 45mm |
| Flute Length | 71mm | 71.0000mm |
| Gage Length | 73mm |
| Drill Depth | 56mm | 56.0000mm |
| Finish/Coating | TiAlN |
| Functional Length | 116.2580mm |
| Coolant Delivery | Off-center Axial Coolant |
| Adapter Type | Cylindrical |
| Overall Length | 118mm | 118.0000mm |
| Helix Angle | 27.714 |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 10.2000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Point | 1.742mm |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Shank Length | 45.0000mm |
