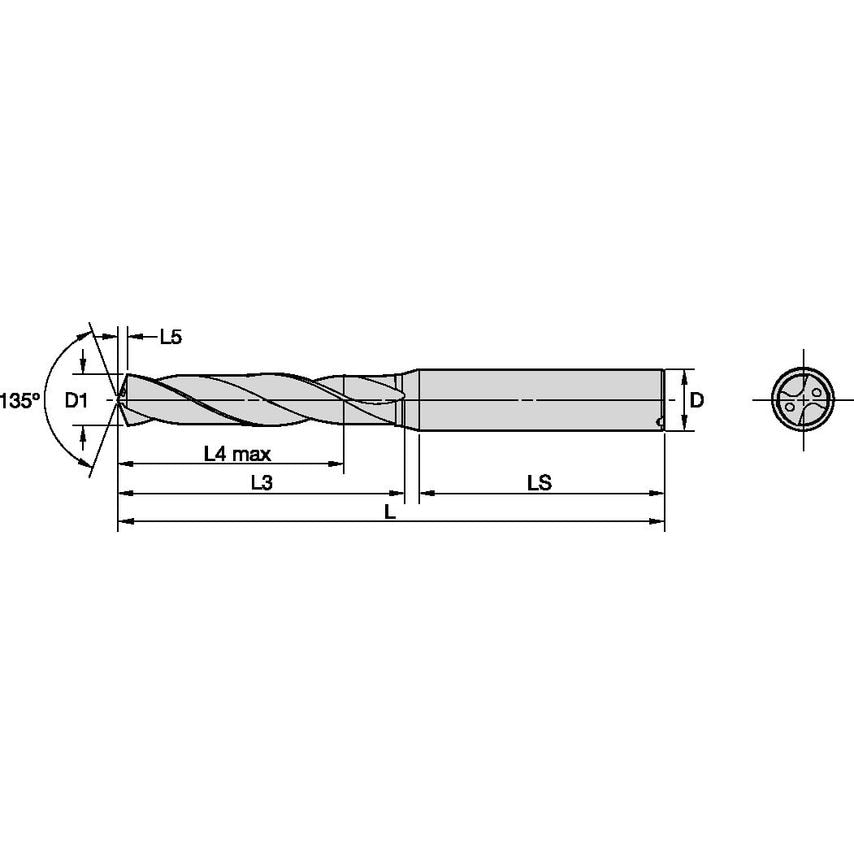

HP Beyond Drills Steel Through CoolantHigh-Performance Solid Carbide Drills
| Clamping Length | 48mm |
| Number of Flutes | 2 |
| Drill Depth | 71mm | 71.0000mm |
| Shank Length | 48.0000mm |
| Drill Diameter | 17.7000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Helix Type | Right Hand Helix/Flute |
| Primary Material | Steel |
| Helix Angle | 29.077 |
| Unit Measured | Metric |
| Functional Length | 139.7100mm |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Material | Carbide |
| Coolant Supplied | Yes |
| Finish/Coating | TiAlN |
| Assembly Length | 91.71mm |
| Flute Length | 93mm | 93.0000mm |
| Drill Point | 3.29mm |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 143mm | 143.0000mm |
| Adapter Type | Cylindrical |
| MFR Part No. | 4112559 |
