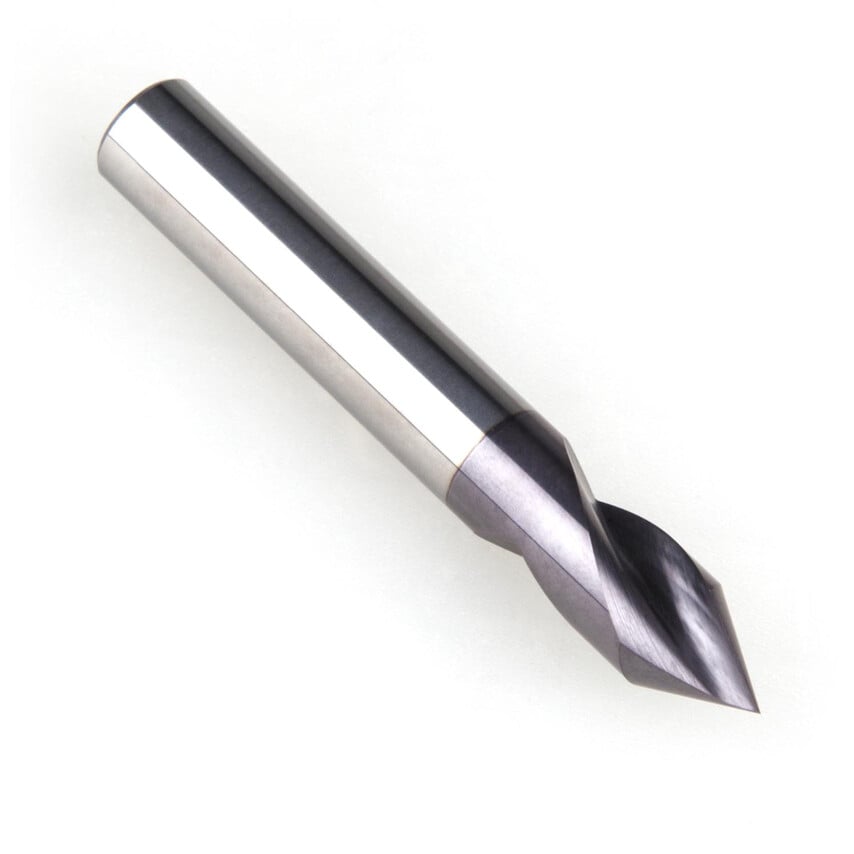

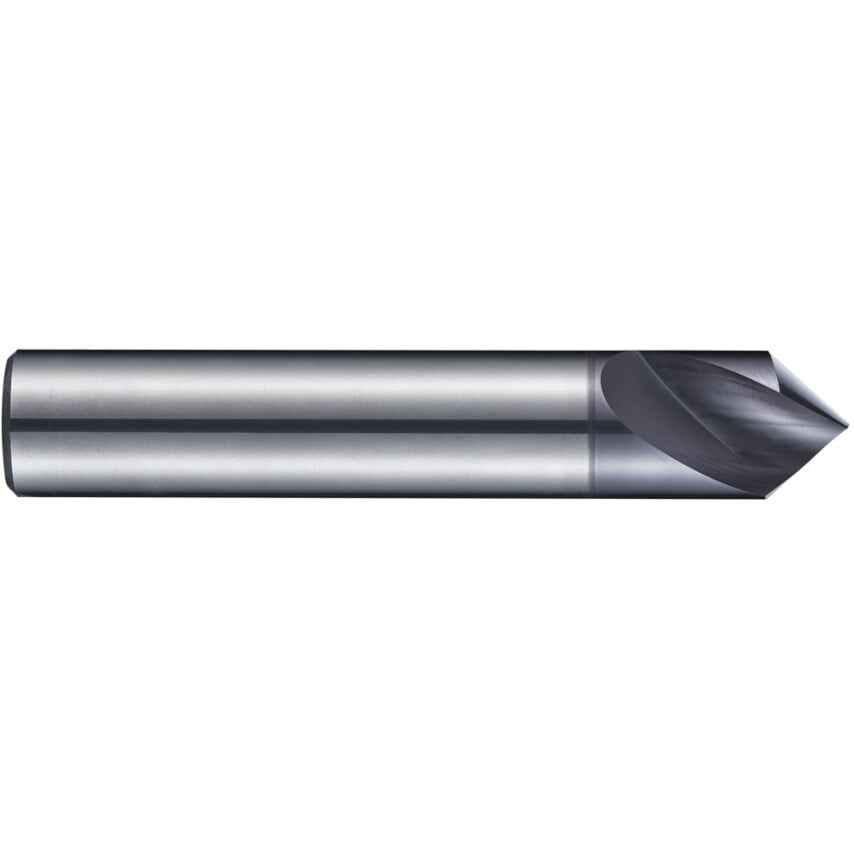

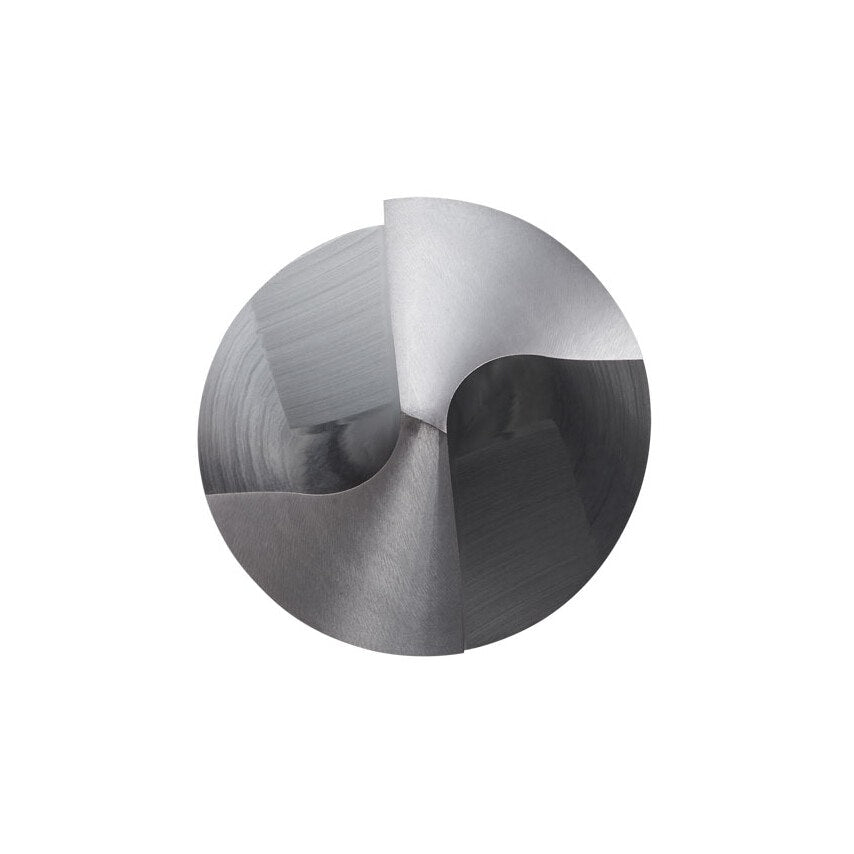

The Dormer Carbide TiAlN 90 Spotting Drill is a cutting-edge tool designed for increased service life and improved performance, particularly on harder materials. This carbide drill offers versatility in centering and chamfering processes, making it an ideal choice for precision machining applications. With its 90-degree point, this spotting drill facilitates self-centering and effectively reduces the push force required during operation. The TiAlN coating enhances durability and wear resistance, ensuring a longer tool life and superior performance. Whether used for centering or chamfering, this drill stands out as a reliable and efficient solution for various machining tasks, providing precision and durability for optimal results.
Features and Benefits
90 degree point - helps with self-centering and reduces the push force required
Accurate point angle - provides an accurate chamfer to accommodate standard screws
Titanium Aluminium Nitride coating - increases service life of the drill, improved performance when drilling harder materials
Premium carbide material - can be used for drilling many materials including steel, aluminium, stainless steel
Versatile product - available in a selection of sizes to suit most hole sizes
| MFR Part No. | R601116.0 |
| Diameter x Depth | 16mm |
| Point Angle | 90\u00b0 |
| Standards Met | Dormer |
| Drill Diameter | 16mm |
| Application | Spotting |
| Finish | TiAlN |
| Finish/Coating | TiAlN |
| Number of Pieces | 1 |
| Cutting Direction | Neutral |
| Overall Length | 90mm |
| Material | Carbide |
| Flute Length | 26mm |
| Product Type | Spotting Drill |
| System of Measurement | Metric |
