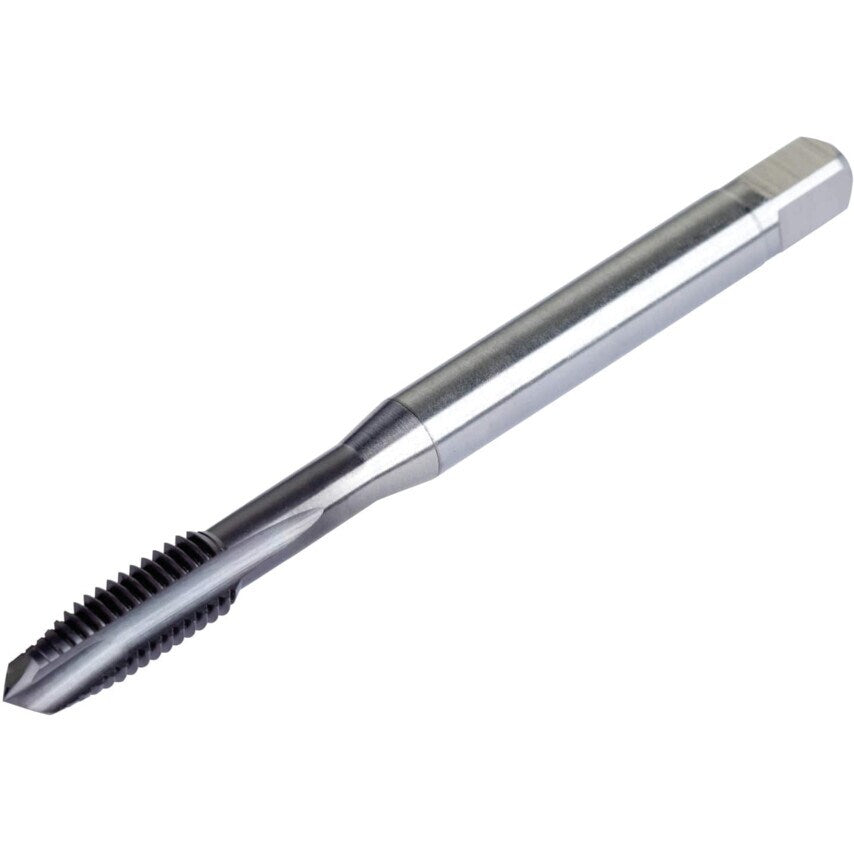

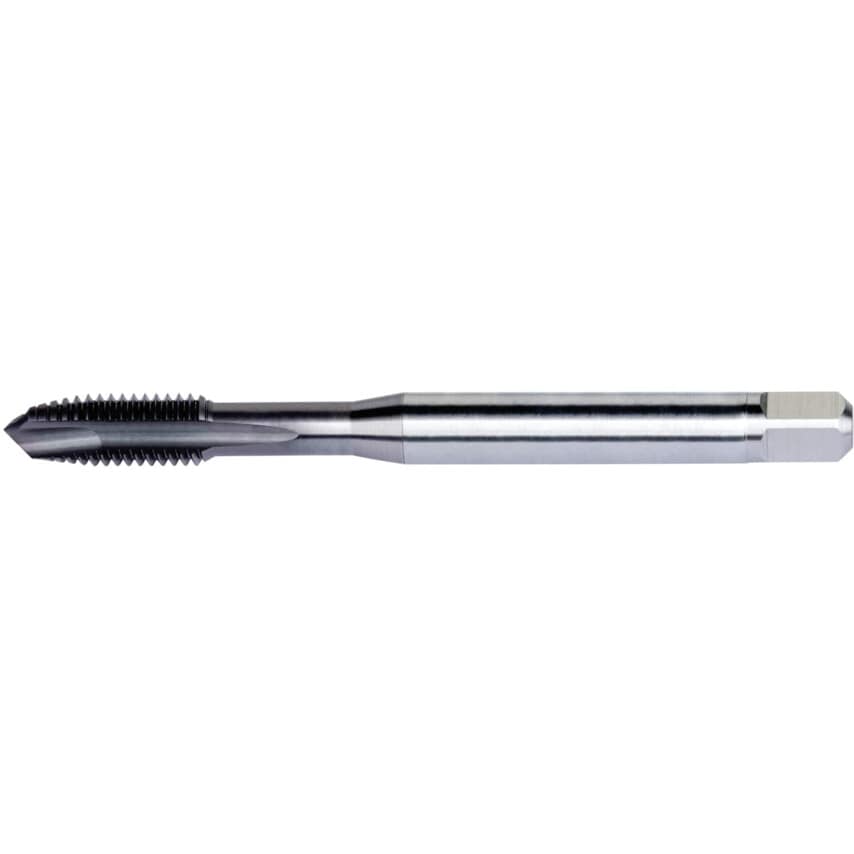

These spiral point taps are expertly engineered for threading through holes in various materials, perfect for use in the automotive, aerospace, and general engineering sectors. These taps feature versatile geometry that excels in medium to high strength and softer materials, preventing clamping and oversized threads. The unique combination of modified edge treatment and 3-radii flute profile ensures cutting-edge stability, reduced risk of edge chipping, and optimal swarf control. Features and BenefitsModified edge treatment provides exceptional cutting-edge stability3-radii flute profile enhances cutting controlTiCN coating offers high wear resistancePowder metallurgy HSS-E-PM substrate optimises toughness and edge hardness
| Overall Length | 56mm |
| Pitch | 0.5mm |
| Number of Flutes | 3 |
| Material | HSS-E-PM |
| Material Grade | HSS-PM |
| Thread Size | M3 |
| Thread Length | 9mm |
| MFR Part No. | 8464086 |
