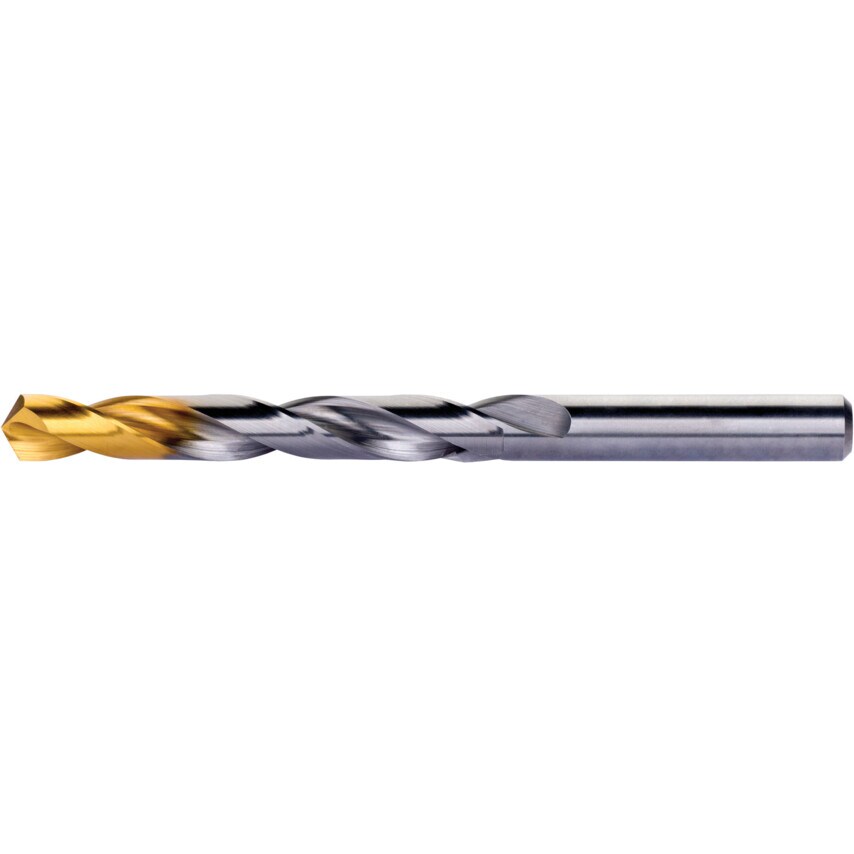

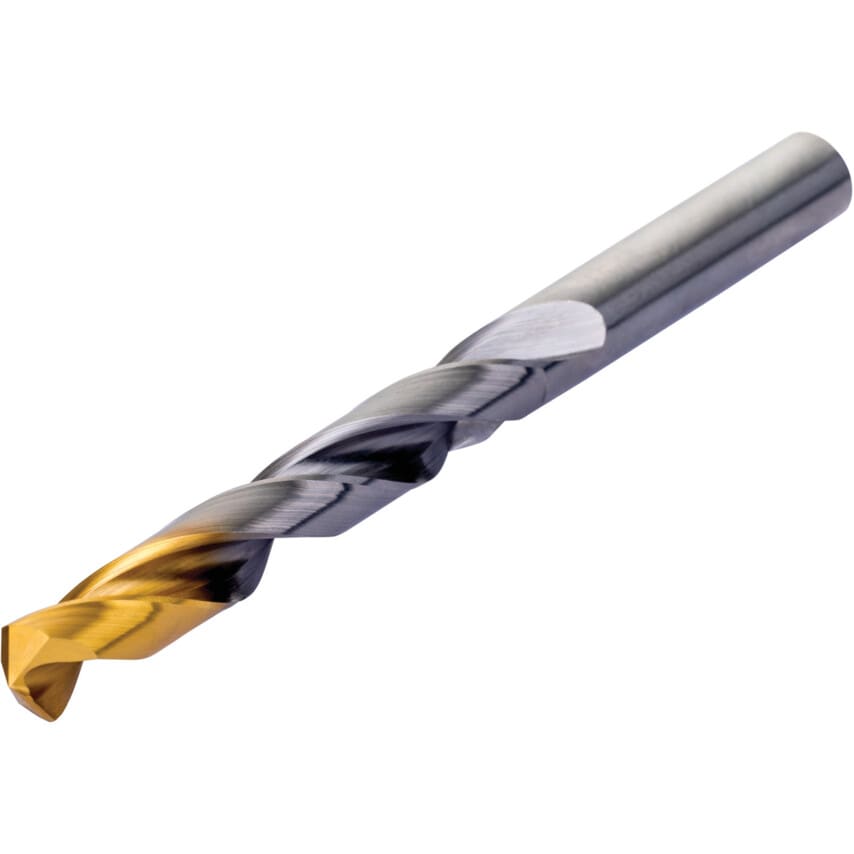

Reliable and precise drill bit designed for everyday use in a variety of materials. Ideal for general-purpose drilling on both manual and CNC machines.
Features and Benefits

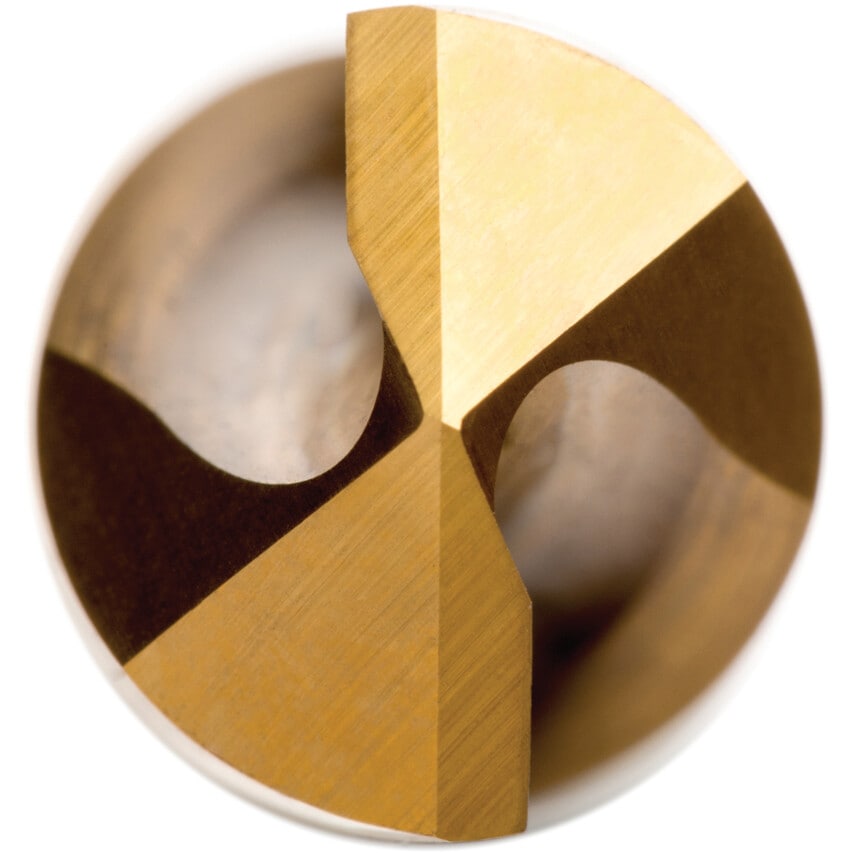

Four-facet tip ensures accurate centring and smoother starts
TiN-tipped cutting edges offer long-lasting performance
Flute design supports effective chip removal and repeated sharpening
Suitable for a wide range of workshop and maintenance tasks
Standards
DIN 338

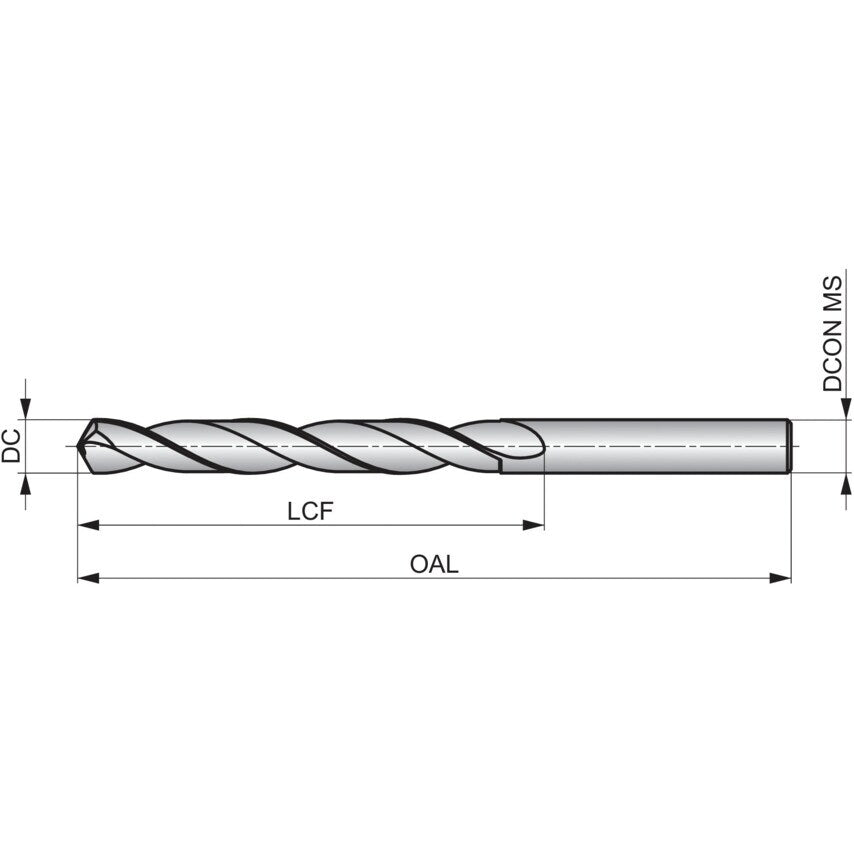

| Manufacturer Grade | DIN338 |
| Series | R003 |
| Flute Length | 52mm |
| Finish/Coating | TiN Tipped |
| Overall Length | 86mm |
| System of Measurement | Metric |
| Standards Met | DIN 338 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral Flute |
| Shank Type | Cylindrical |
| Depth x Diameter Ratio | 4xD |
| Drill Diameter | 0.19in | 4.76mm |
| Point Angle | 120\u00b0 |
| MFR Part No. | 8402698 |
| Point Type | Four Facet |
| Material | TiN-Tipped |
