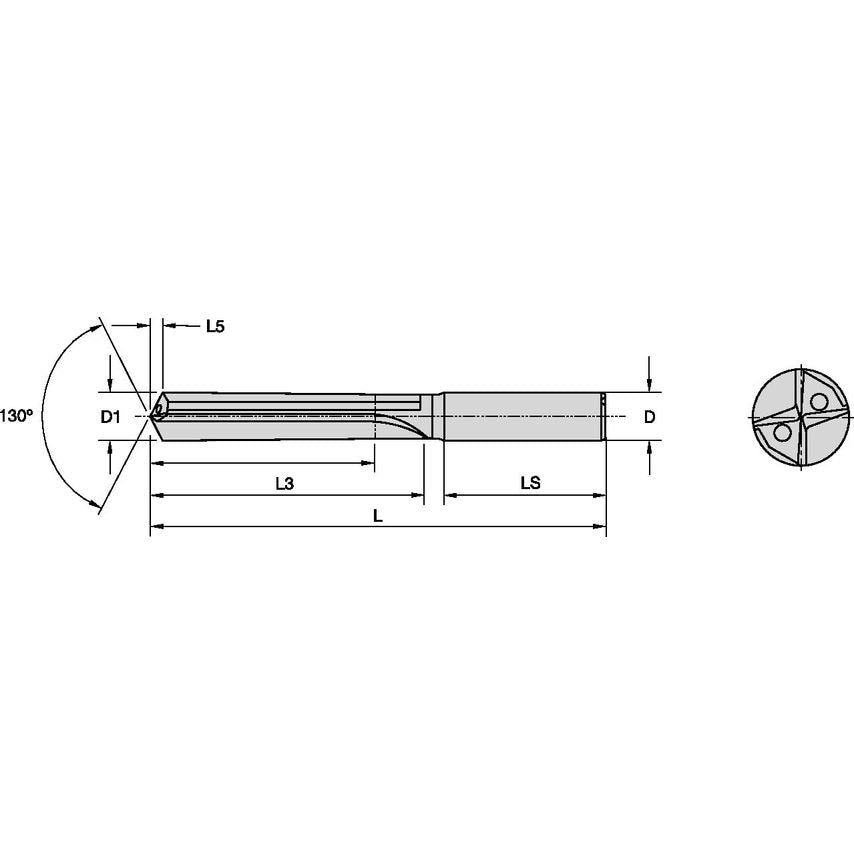

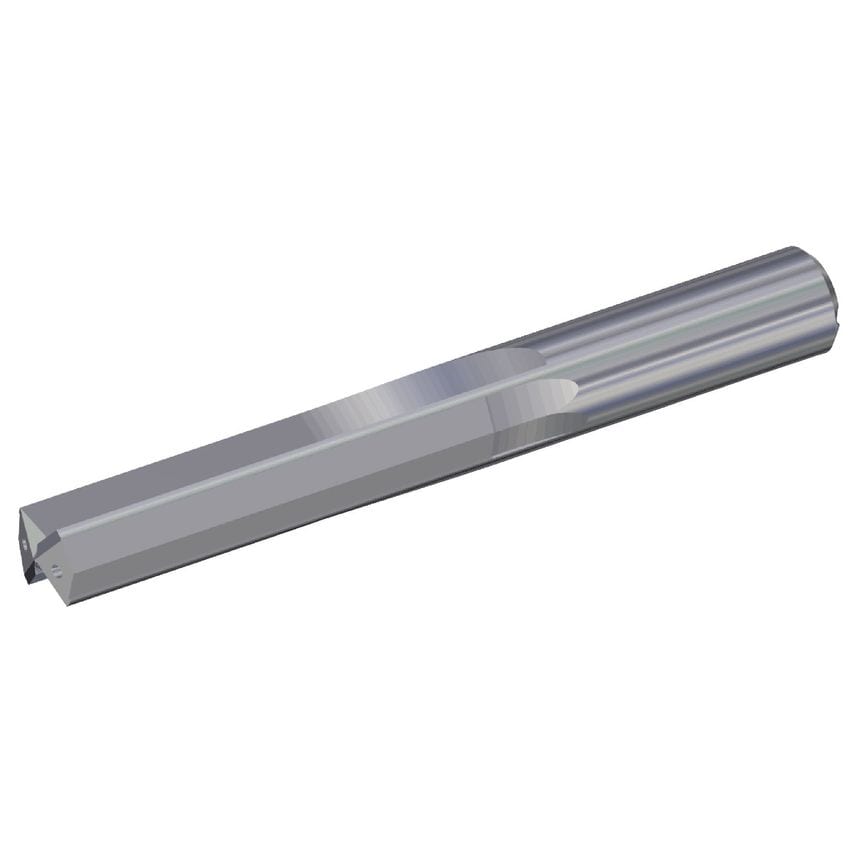

TX Drills Close Tolerance Holes Through CoolantSolid Carbide Drills
| Unit Measured | Imperial |
| Flute Length | 35.5mm | 35.5000mm |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 4.763mm | 4.7630mm |
| Material | Carbide |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Drill Point | 1.018mm |
| Drill Diameter | 4.3660mm |
| Hand Preference | Right |
| MFR Part No. | 1201026 |
| Gage Length | 37.5mm |
| Overall Length | 74mm | 74.0000mm |
| Assembly Length | 59.482mm |
| Shank Length | 36.5000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Flute Construction | Helical Flute |
| Drill Depth | 28.6mm | 28.6000mm |
| Clamping Length | 13.5mm |
| Functional Length | 72.9820mm |
| Helix Angle | 0.000 |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Primary Material | Cast Iron |
| Adapter Type | Cylindrical |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
