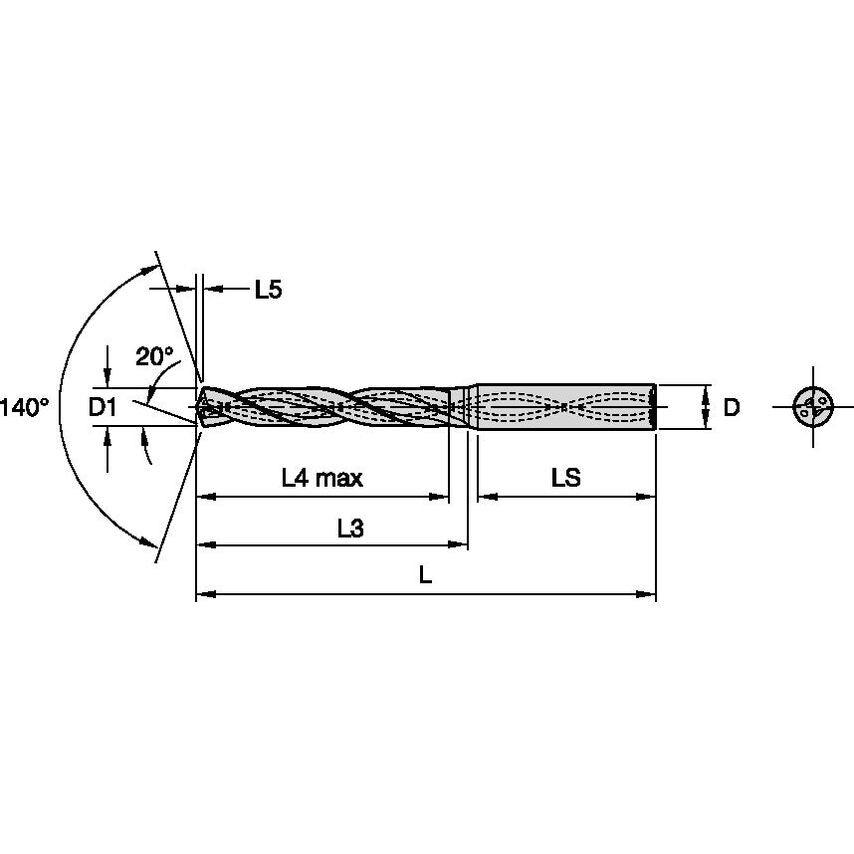

HPX B226 8 x D Through CoolantHigh-Performance Solid Carbide Drills
| Flute Length | 56mm | 56.0000mm |
| Unit Measured | Metric |
| Drill Point | 1.06mm |
| Finish/Coating | TiN/AlTiN |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Adapter Type | Cylindrical |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 48mm | 48.0000mm |
| Drill Diameter | 4.7630mm |
| Overall Length | 94mm | 94.0000mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Assembly Length | 65.94mm |
| Flute Construction | Helical Flute |
| Functional Length | 92.9400mm |
| Material | Carbide |
| MFR Part No. | 6782340 |
| Shank Length | 36.0000mm |
| Number of Flutes | 2 |
| Coolant Diameter | 0.8500mm (0.0276in) |
| Helix Angle | 24.789 |
| Primary Material | Steel |
