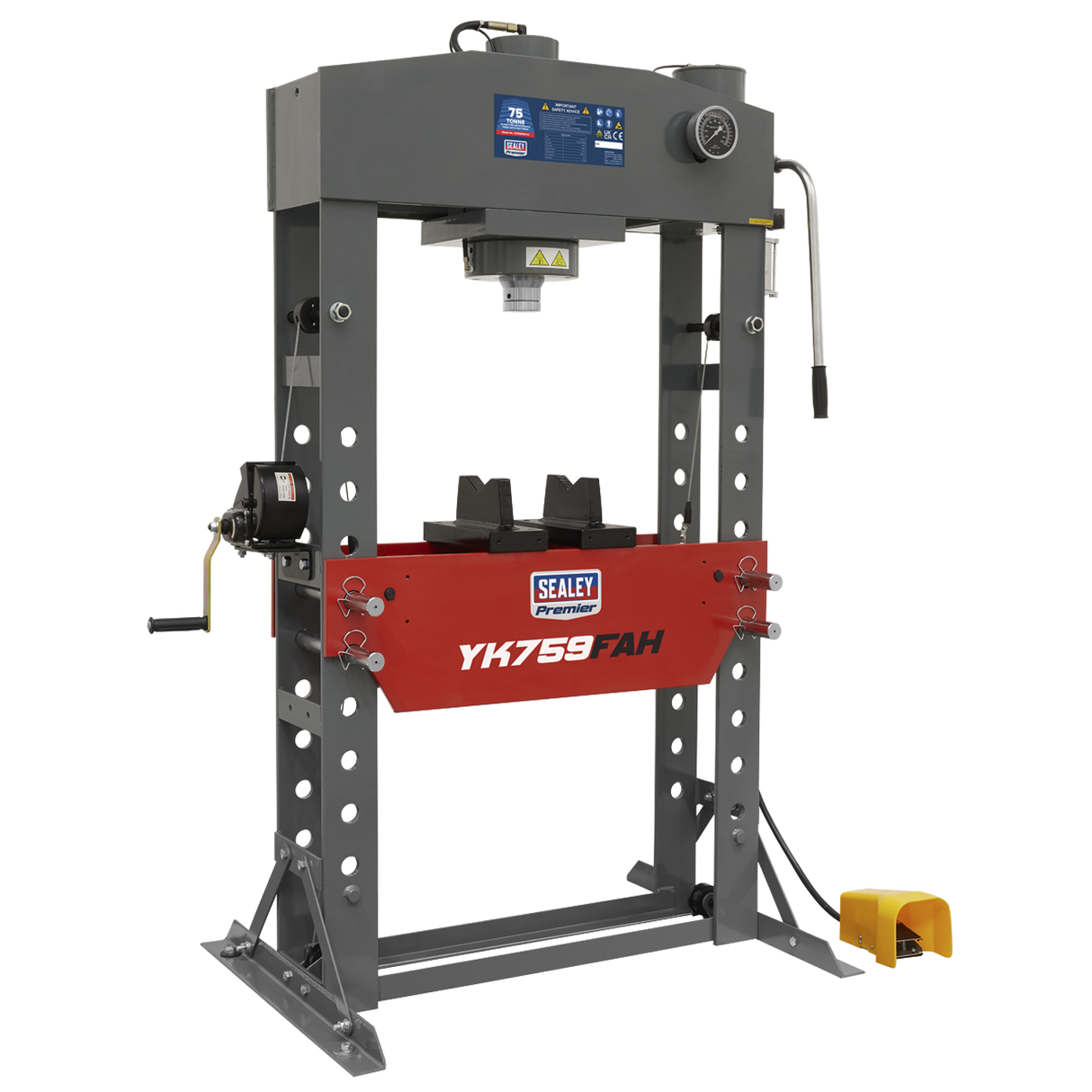

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-Speed manual operation and sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.
| Type | Air/Hydraulic |
| Air Consumption | 7ft\u00b3/min |
| Working Table Depth | 279mm |
| Capacity | 75Tonne |
| Working Table Width | 1020mm |
| Ram Stroke | 250mm |
| Ram Diameter | 93mm |
| Overall Height | 1925mm |
| Overall Width | 1560mm |
| MFR Part No. | YK759FAH |
| Nett Weight | 451kg |
| Bench Or Floor Mounting | Floor |
| Lateral Ram Travel | 260mm |
| Table Aperture | 251mm |
