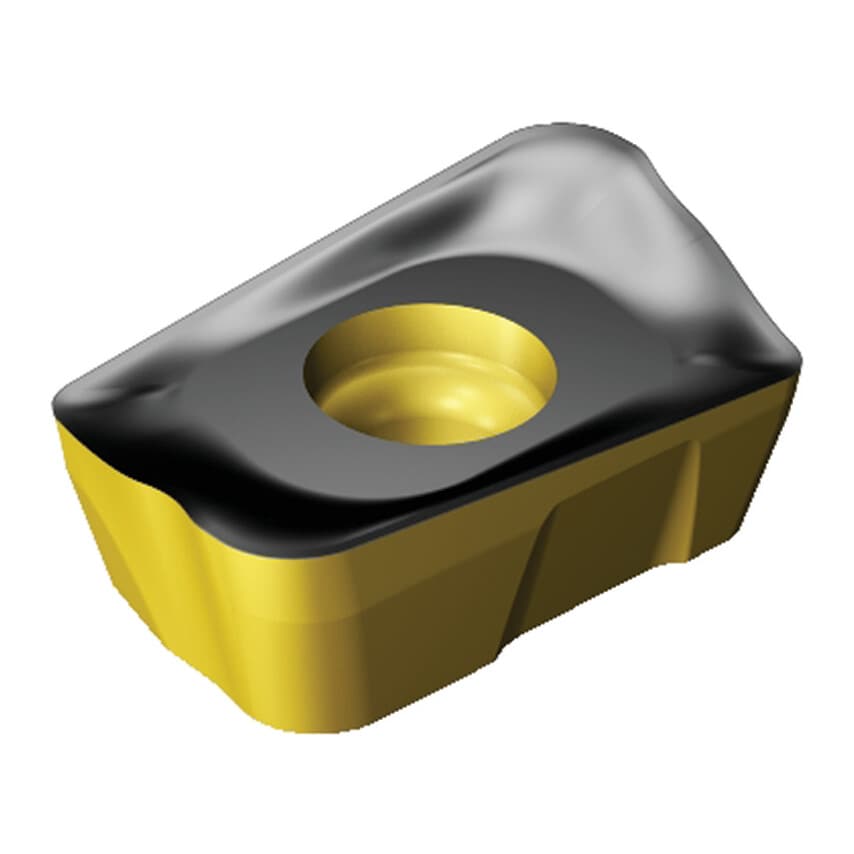

R390-180612M-PM Insert Grade 4340

R390 CoroMill Milling Insert features a solid carbide construction allowing for greater rigidity and strength when machining, coupled with a durable CVD TICN+AL2O3+TIN coating for increased wear ad heat resistance. The 2 cutting edges allow for optimal cutting performance and is suitable for right handed applications. Features and Benefits Hard carbide construction for increased rigidity and strength CVD TICN+AL2O3+TIN coating reduces heat and wear 2 cutting edges for optimal perfomance Suitable for right handed applications Specifications Cutting edges: 2 Cutting edge length: 15.4mm Corner radius: 1.2mm Cutting angle: 90 degrees Cutting direction: Right Carbide construction CVD TICN+AL2O3+TIN coating Typical Applications Milling Steel Stainless steel Cast iron

Cutting Direction	Right
Product Type	Milling Inserts
Number of Cutting Edges	2
Material	Solid Carbide
Cutting Edge Length	15.4mm
Corner Radius	1.2mm
