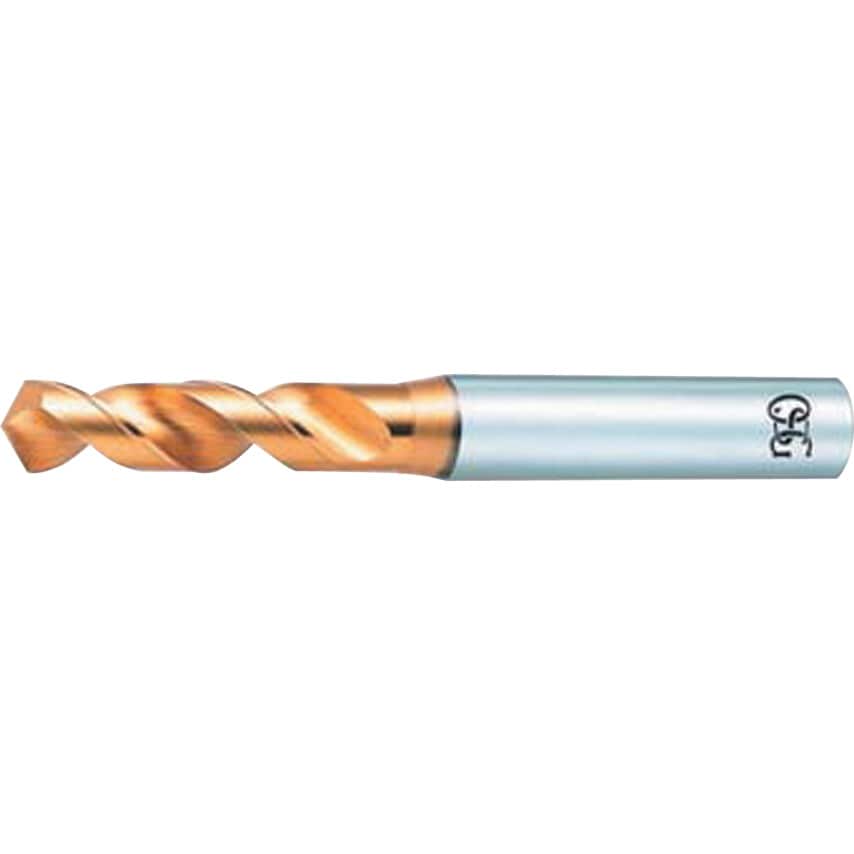

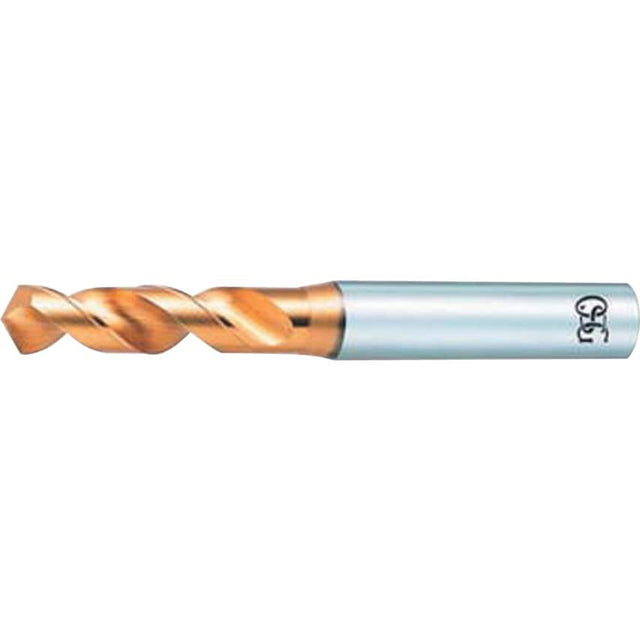

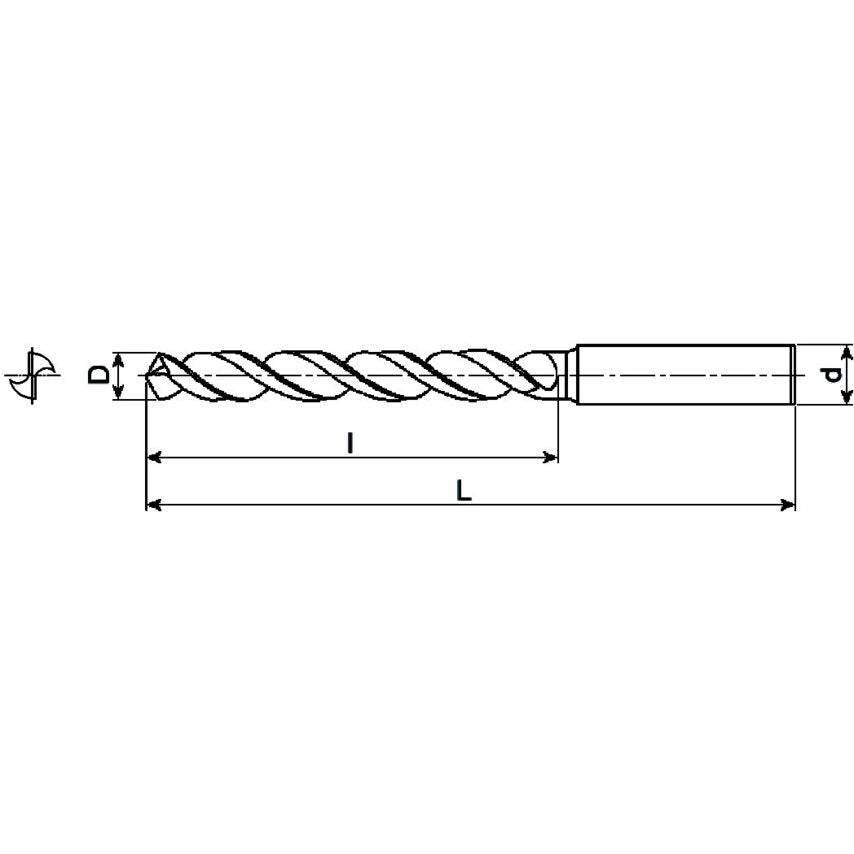

EX-SUS-GDS Stub DrillsOSG standard, Stub.Dia. to within 12: NS (without flat), Dia. to within 12: FS (with flat).Manufactured from OSG?s HSS-EV3 and TiN coated.Special flute design to facilitate short chipping and accurate hole sizes.For CNC high speed drilling.For all dimensional specifications please refer to the PDF of the catalogue page below.
| Drill Diameter | 1.3mm |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Number of Pieces | 1 |
| Flute Type | Spiral |
| Product Type | Stub Drills |
| Material | HSSE |
| Point Angle | 140\u00b0 |
| Number of Flutes | 2 |
| Series | 1100 |
| Finish/Coating | TiN |
| Overall Length | 40mm |
| Flute Length | 8mm |
| MFR Part No. | 61513 |
