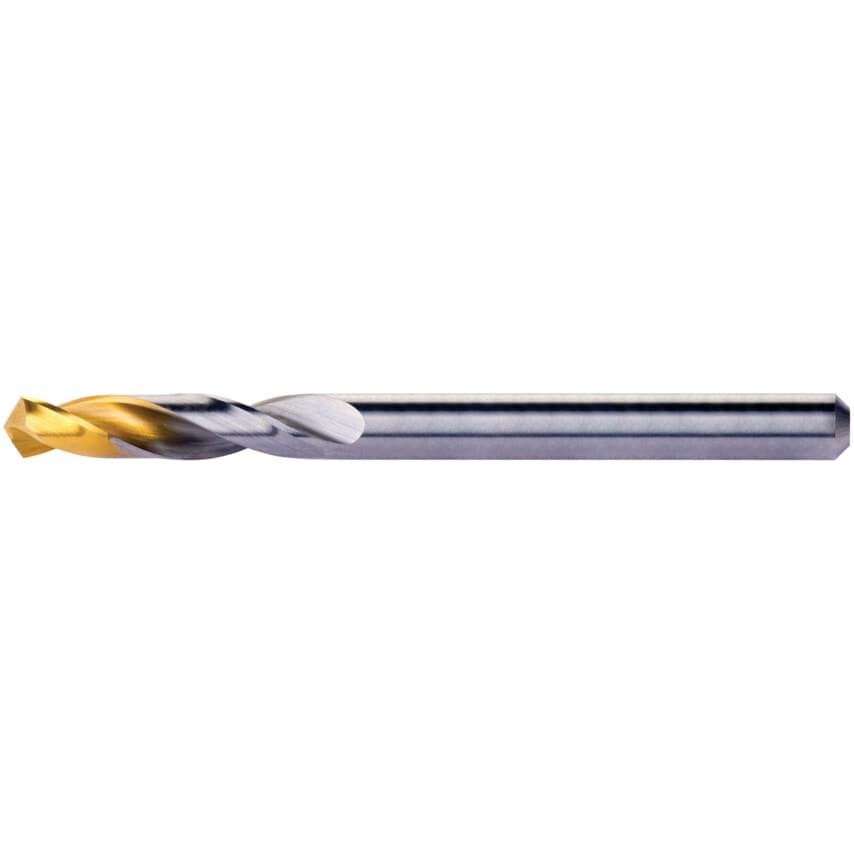

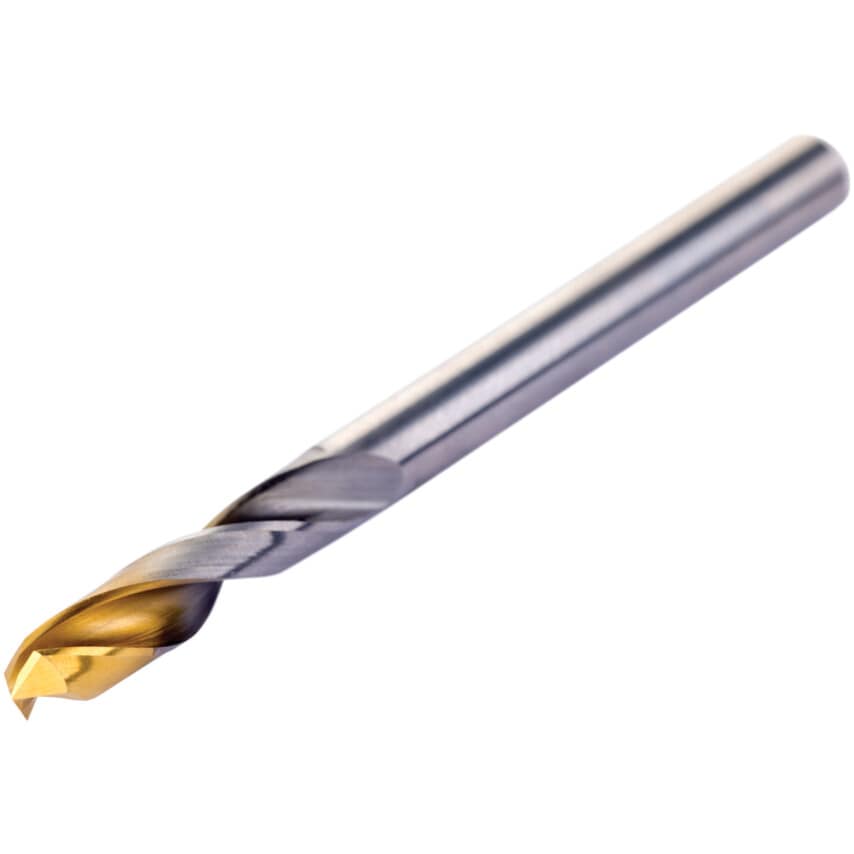

A versatile stub-length drill designed for precision drilling across various materials. Its robust construction and advanced features ensure consistent performance in both CNC and conventional machining environments.
Features and Benefits

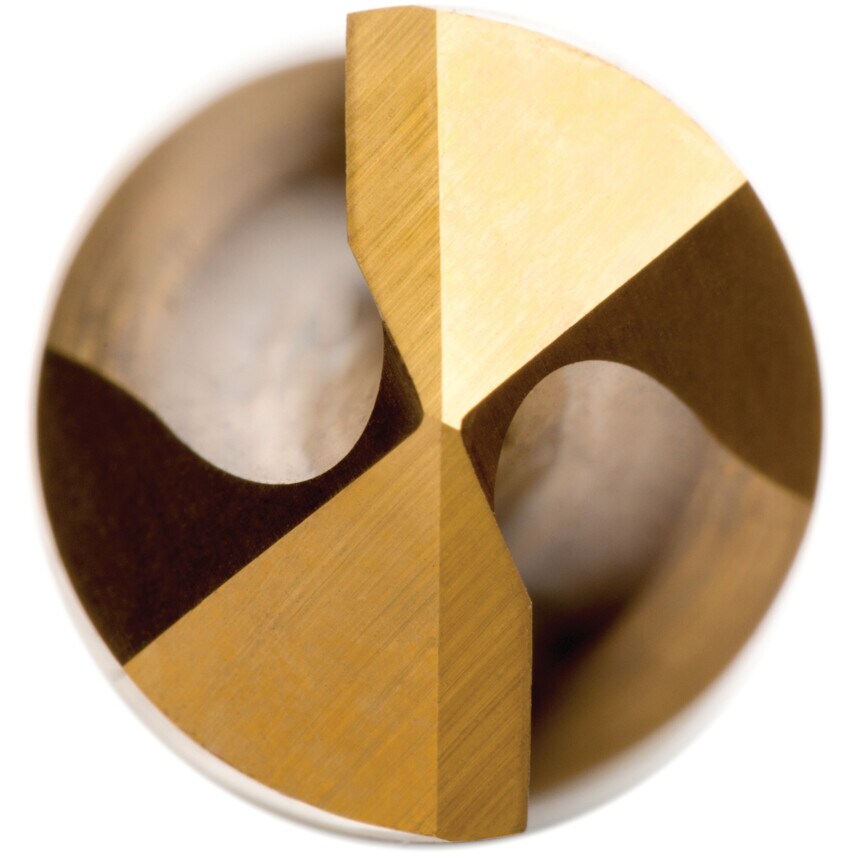

Four-facet split point geometry enhances self-centering and reduces thrust force
TiN-coated cutting edges improve wear resistance and extend tool life
Continuously thinned web design allows for multiple regrinds without compromising chip evacuation
Suitable for a wide range of materials, including steels and cast irons
Notes
Compatible with both CNC and manual machines
Available in various diameters to accommodate different drilling requirements
Standards
DIN 6539

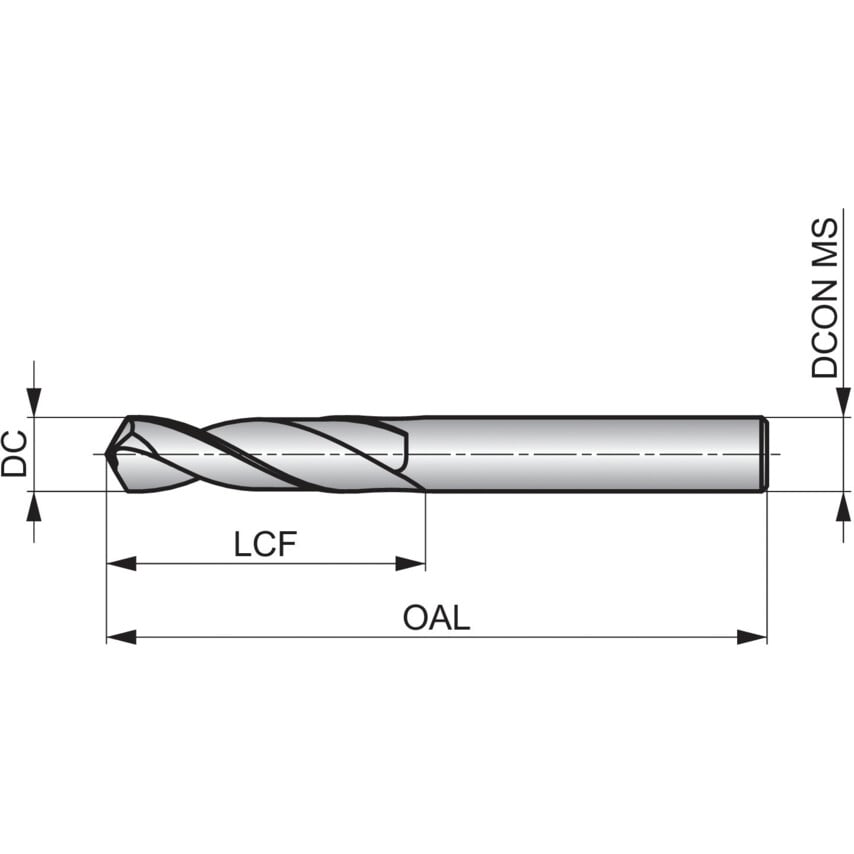

| Standards Met | DIN 6539 |
| Diameter | 1.6mm |
| MFR Part No. | 8402976 |
| Material | Carbide |
| Flute Type | Spiral |
| Point Angle | 120\u00b0 |
| Drill Length Type | Stub |
| System of Measurement | Metric |
| Flute Length | 10mm |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN Tipped |
| Overall Length | 34mm |
| Point Type | Four Facet |
| Drill Diameter | 1.6mm |
| Series | R023 |
