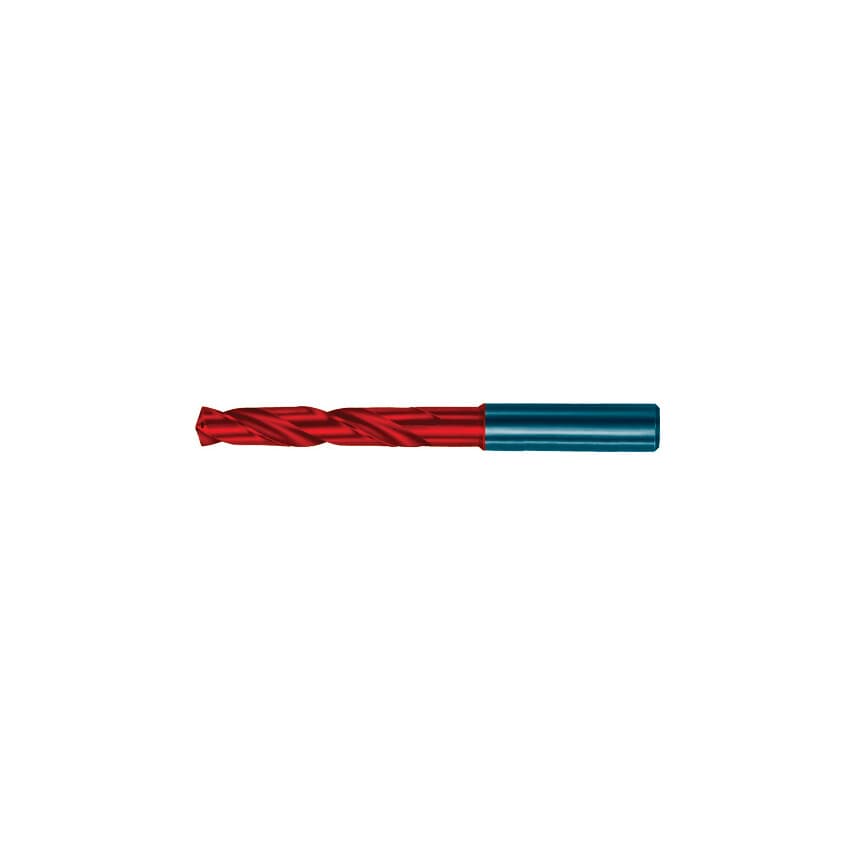

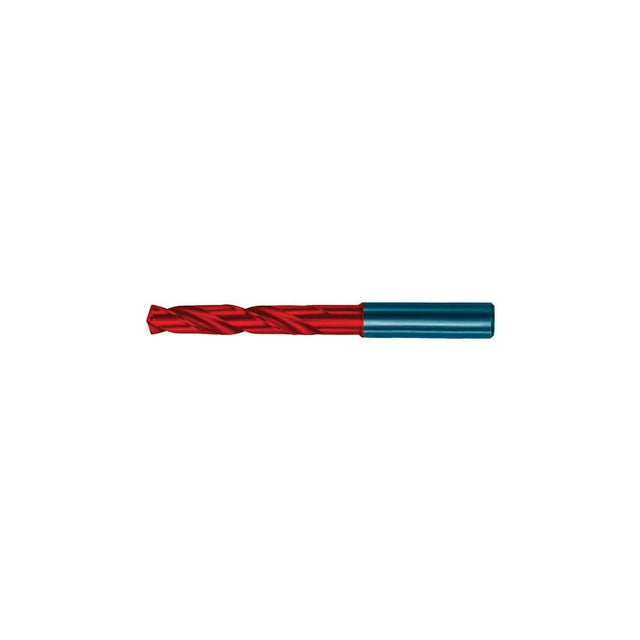

The series 511 Carbide Straight Shank Ratio Drill is ideal for the drilling of long and short-chipping materials. This includes structural and case hardened steels, cast steels, heat-treatable steels and alloyed steels with a tensile strength of up to app. 1200N/mm.
Features and Benefits
High alignment accuracy with small diameter tolerance and excellent surface finish
Point angle: 140
Diameter tolerance m7
Shank tolerance h6
3xD
Manufactured to DIN 6537
| Flute Length | 83mm |
| Point Angle | 140\u00b0 |
| Flute Type | Spiral |
| Drill Diameter | 14.9mm |
| Material | Carbide |
| Shank Diameter | 16mm |
| Carbide Drill Type | Carbide High Performance |
| Coolant Delivery | Coolant Through |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | FIREX\u00ae (TiN+TiAlN) |
| Helix Type | RT 100 U |
| Drill Diameter Tolerance | M7 |
| MFR Part No. | 05511 014.900 |
| Point Type | SU |
| Number of Flutes | 2 |
| Series | 5511 |
| Overall Length | 133mm |
| Cutting Direction | Right Hand |
| Standards Met | DIN 6537 |
