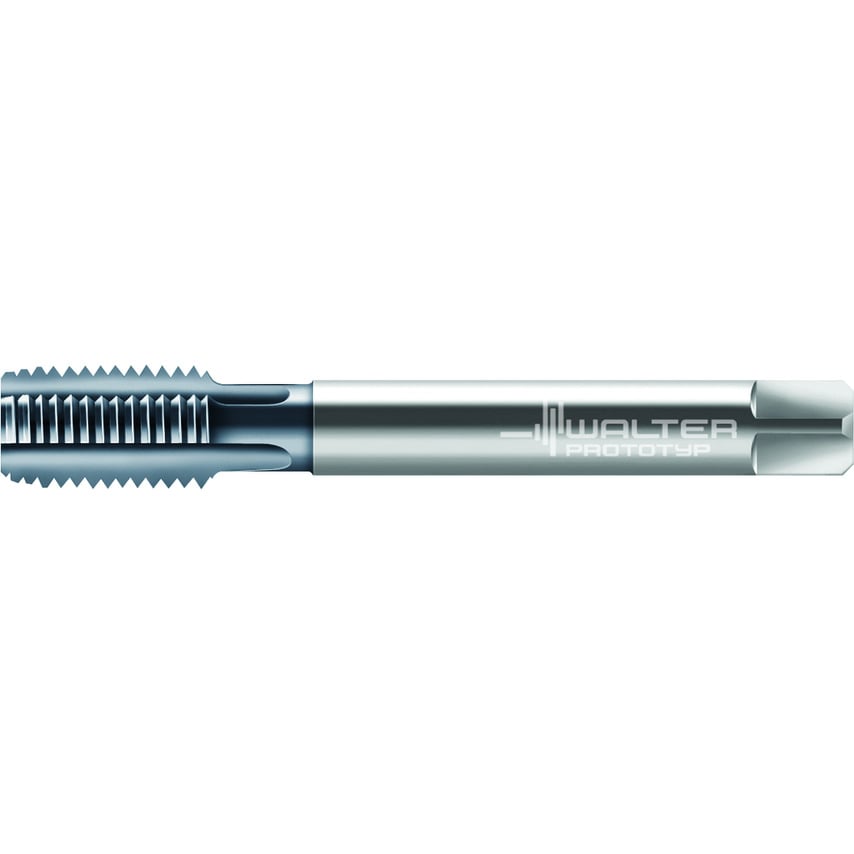

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 376 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole TICN M 20 P=0.0984in
| Thread Size | M 20 |
| MFR Part No. | 5603098 |
| Functional Length | 140mm |
| Number of Grooves | 4 |
| Tool Designation | E2036406-M20 |
| Connection Diameter | 16mm |
| Clamping Width | 12mm |
| Usable Length | 95mm |
| Cutting Edge Length | 30mm |
| Thread Pitch | 2.5mm |
| Driving Square Length | 15mm |
