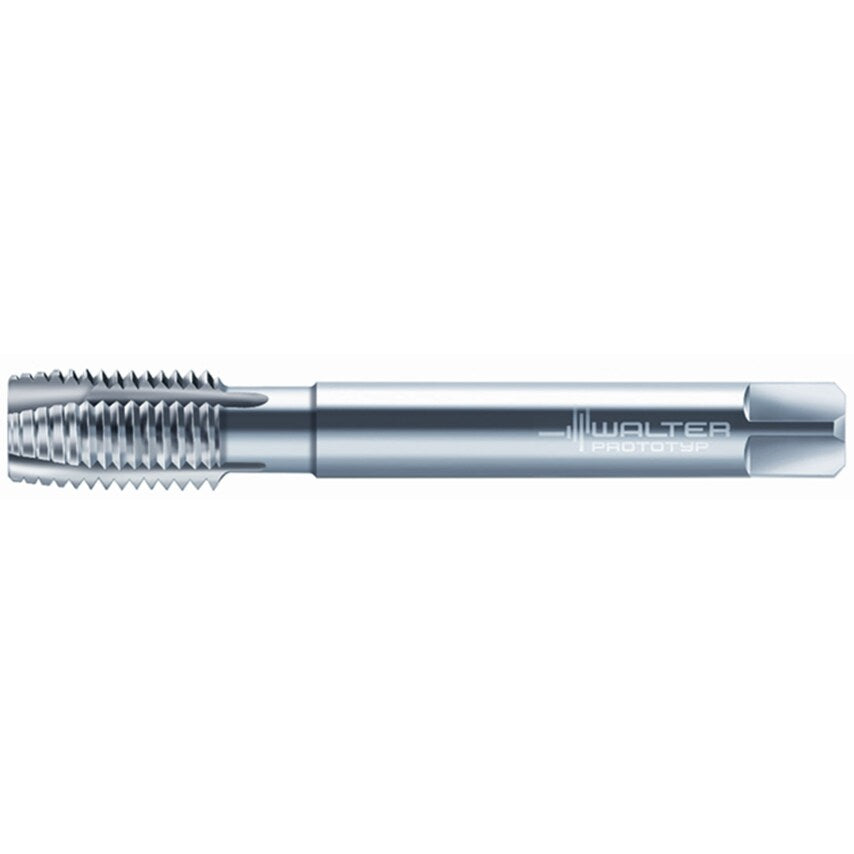

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole UNC 7/16-14 P=14
| Number of Grooves | 3 |
| ISO Category | O |
| Usable Length | 76mm |
| Tap Type | Spiral Point |
| Cutting Edge Length | 20mm |
| Finish/Coating | Uncoated |
| Material | HSSE |
| Tool Designation | P22360-UNC7/16 |
| Thread Size | 7/16in |
| Driving Square Length | 9mm |
| Dimensions Standard | DIN 2184-1 |
| Overall Length | 100mm |
| Clamping Width | 6.2mm |
| Thread Standard | UNC |
| MFR Part No. | 6149445 |
| Teeth per Inch | 14 |
| Shank Diameter | 8mm |
| Series | Prototex\u00ae X\u00b7pert P |
| ISO Designation | P22360-UNC7/16 |
