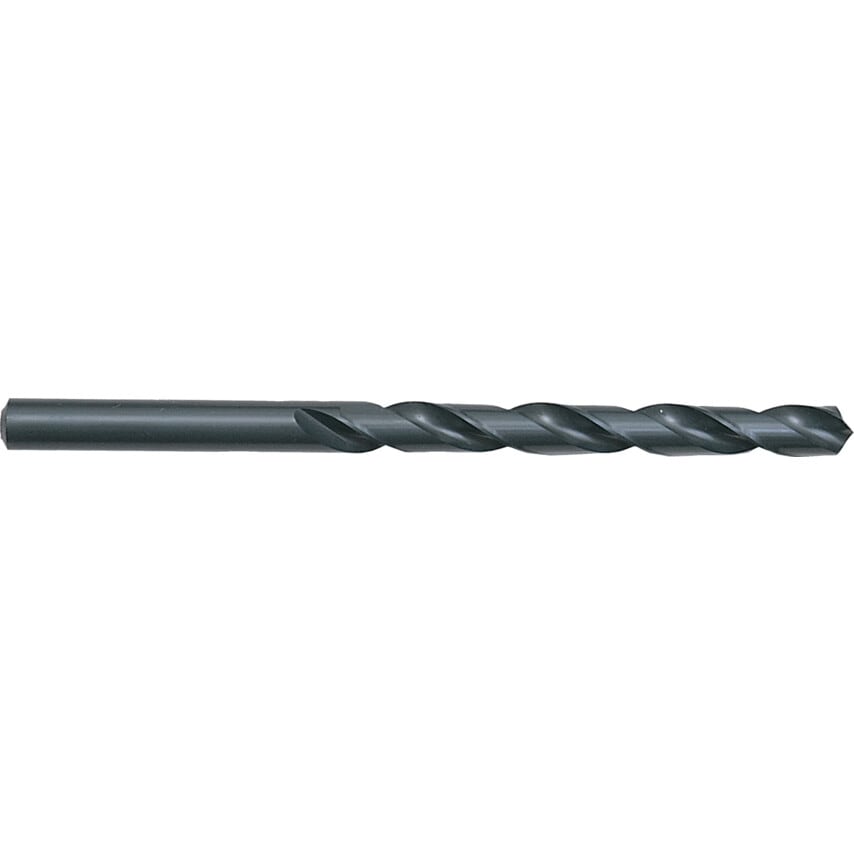

Series 217 HSS Straight Shank Long Series Drills
Metric
General-purpose high speed steel long series drills are designed for deep hole drilling of most materials. The drill has the same diameter on both the fluted section and the shank. Manufactured to BS328;Part 1:1986, DIN340RN, ISO494.
| Cutting Direction | Right Hand |
| Web Thickness | Form A |
| Number of Flutes | 2 |
| Material | HSS |
| Size | 2.6mm |
| Product Type | Long Series Drills |
| Shank Diameter Tolerance | F11 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| System of Measurement | Metric |
| MFR Part No. | 00217 002.600 |
| Finish/Coating | Steam Tempered |
| Number of Pieces | 1 |
| Drill Length Type | Long Series |
| Flute Construction | Ground flutes |
| Overall Length | 95mm |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Series | 217 |
| Helix Type | Normal Helix |
| Flute Length | 62mm |
| Drill Diameter Tolerance | H8 |
| Drill Diameter | 2.6mm |
| Point Angle | 118\u00b0 |
| Point Type | Standard |
