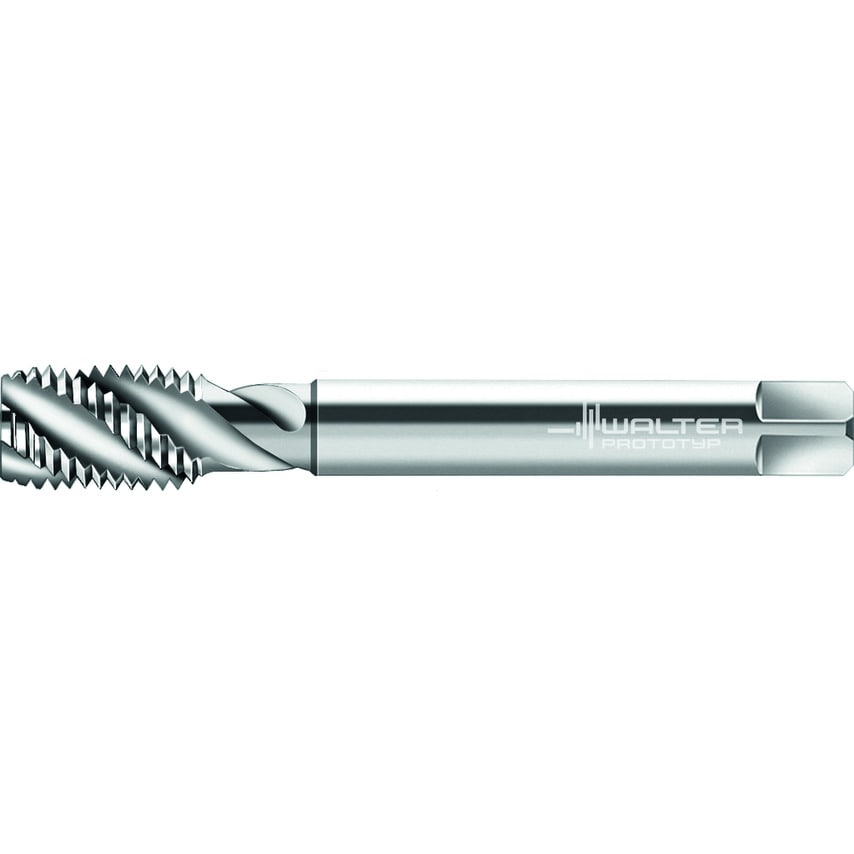

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN 2184-1 right hand flute 45 Suitable for blind hole UNC 1.1/4-7 P=7
| Thread Standard | UNC |
| Tool Designation | P22569-UNC1.1/4 |
| Driving Square Length | 21mm |
| Material | HSSE |
| Cutting Edge Length | 35mm |
| Thread Size | UNC 1.1/4-7 |
| Functional Length | 180mm |
| Usable Length | 115mm |
| Number of Grooves | 4 |
| Clamping Width | 18mm |
| Connection Diameter | 22mm |
| MFR Part No. | 6244718 |
