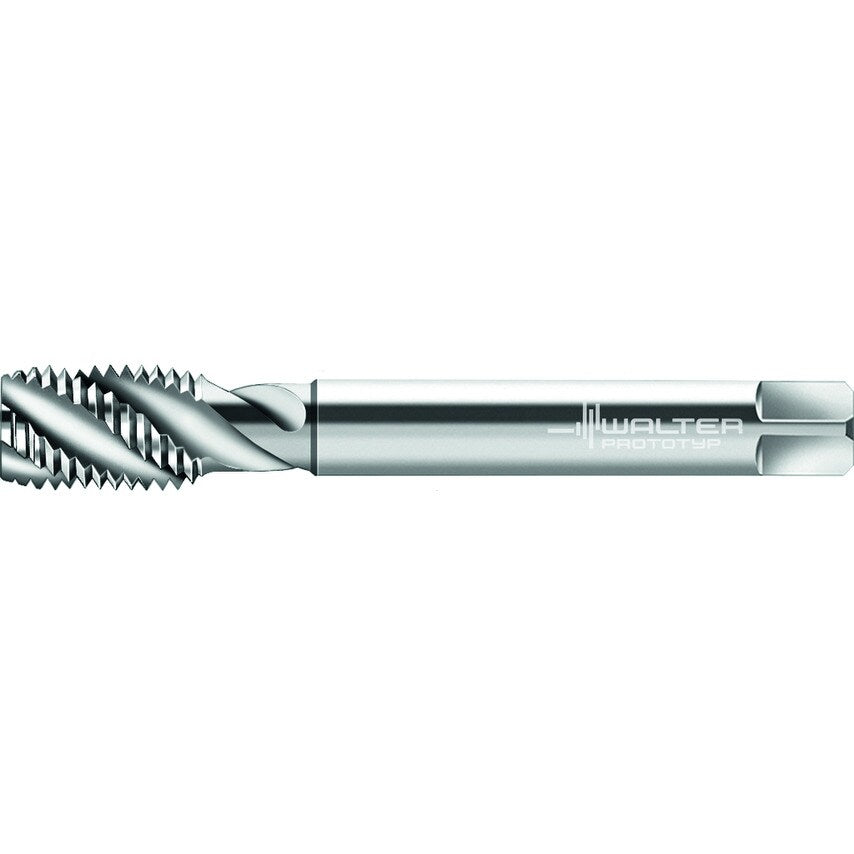

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN 2184-1 right hand flute 45 Suitable for blind hole UNC 9/16-12 P=12
| Cutting Edge Length | 20mm |
| Connection Diameter | 11mm |
| Usable Length | 81mm |
| Tool Designation | P22569-UNC9/16 |
| Thread Standard | UNC |
| Thread Size | UNC 9/16-12 |
| Number of Grooves | 4 |
| MFR Part No. | 6244716 |
| Material | HSSE |
| Functional Length | 110mm |
| Driving Square Length | 12mm |
| Clamping Width | 9mm |
