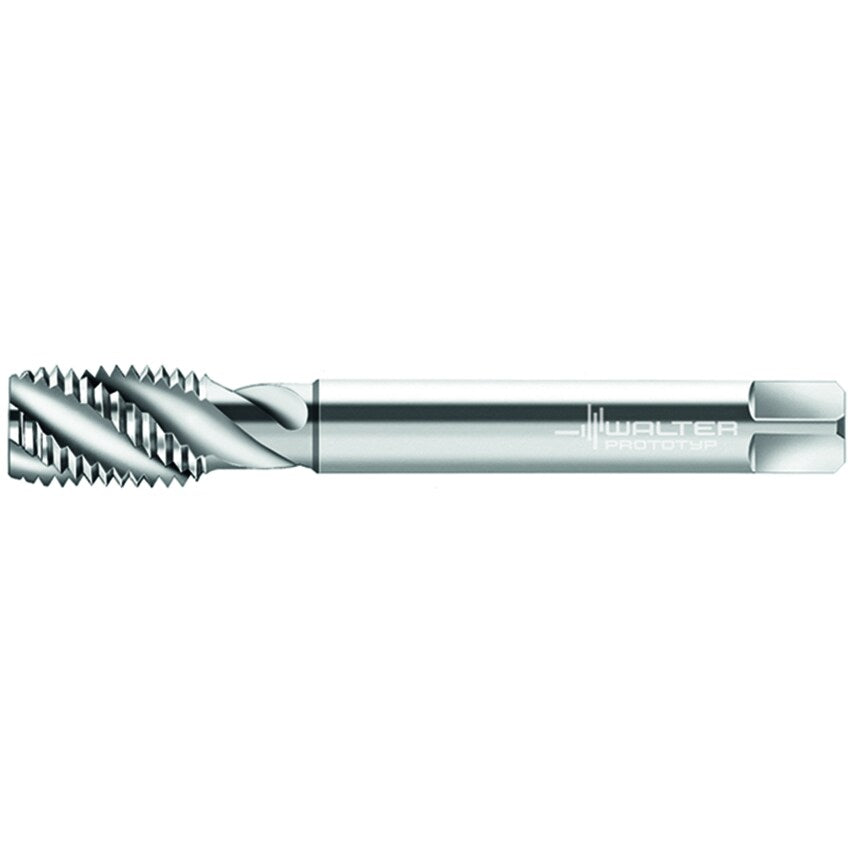

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2B DIN 2184-1 right hand flute 45 Suitable for blind hole UNF 1.1/2-12 P=12
| MFR Part No. | 6244759 |
| Tool Designation | P23569-UNF1.1/2 |
| Number of Grooves | 5 |
| Thread Size | UNF 1.1/2-12 |
| Driving Square Length | 25mm |
| Clamping Width | 22mm |
| Functional Length | 170mm |
| Connection Diameter | 28mm |
| Cutting Edge Length | 22mm |
| Usable Length | 101mm |
