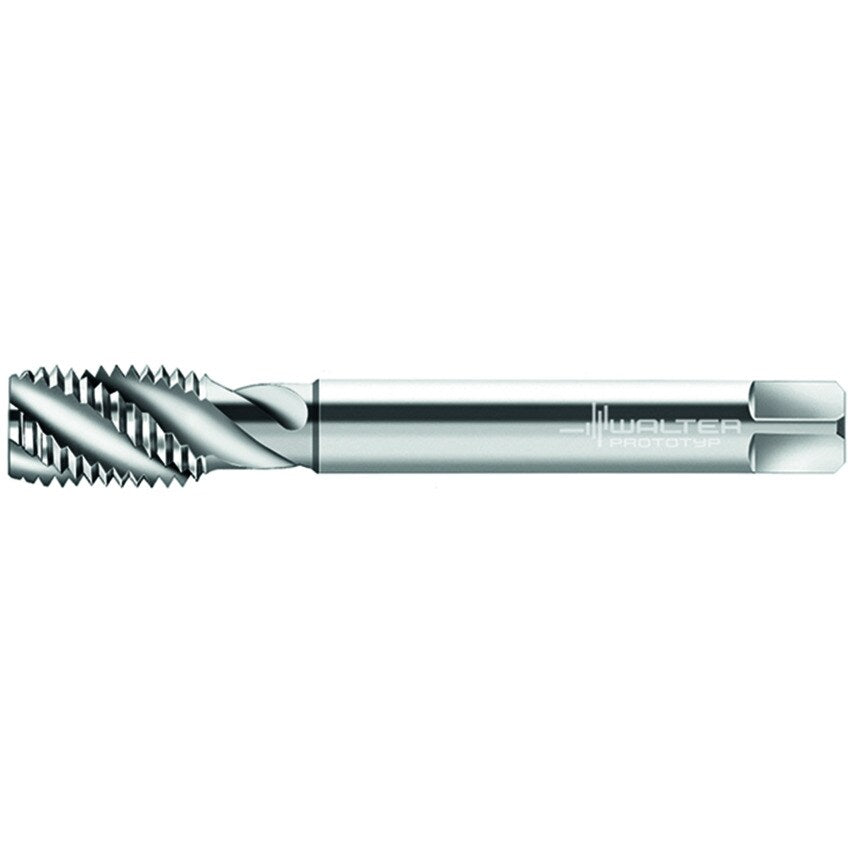

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD G/NORMAL DIN 5156 right hand flute 40 Suitable for blind hole G 3/4-14 P=14
| Thread Size | G 3/4-14 |
| Tool Designation | P24569-G3/4 |
| Usable Length | 77mm |
| Material | HSSE |
| Functional Length | 140mm |
| Clamping Width | 16mm |
| Cutting Edge Length | 20mm |
| Number of Grooves | 5 |
| Connection Diameter | 20mm |
| Driving Square Length | 19mm |
| Thread Pitch | 14 |
| Threads Per Inch | 14 |
| MFR Part No. | 6244787 |
