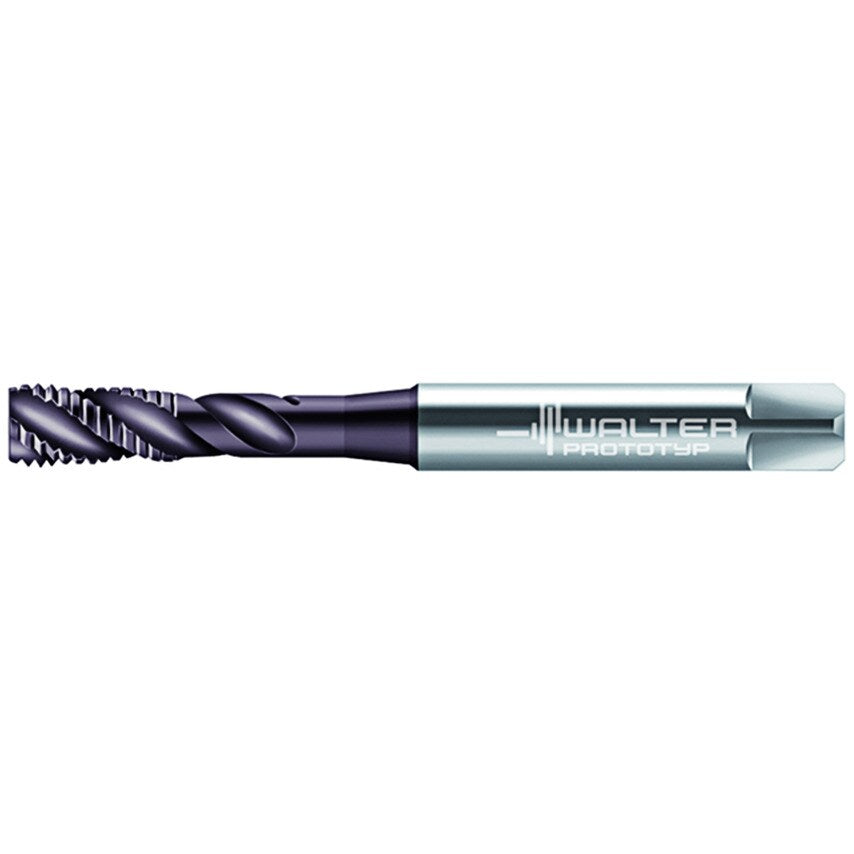

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX ~DIN 371 right hand flute 45 Suitable for blind hole THL M 6 P=0.0394in
| Thread Pitch | 1mm |
| Driving Square Length | 8mm |
| Connection Diameter | 6mm |
| Usable Length | 25mm |
| Functional Length | 80mm |
| Number of Grooves | 3 |
| Thread Size | M 6 |
| Cutting Edge Length | 10mm |
| Clamping Width | 4.9mm |
| Tool Designation | EP2051312-M6 |
| MFR Part No. | 6245589 |
