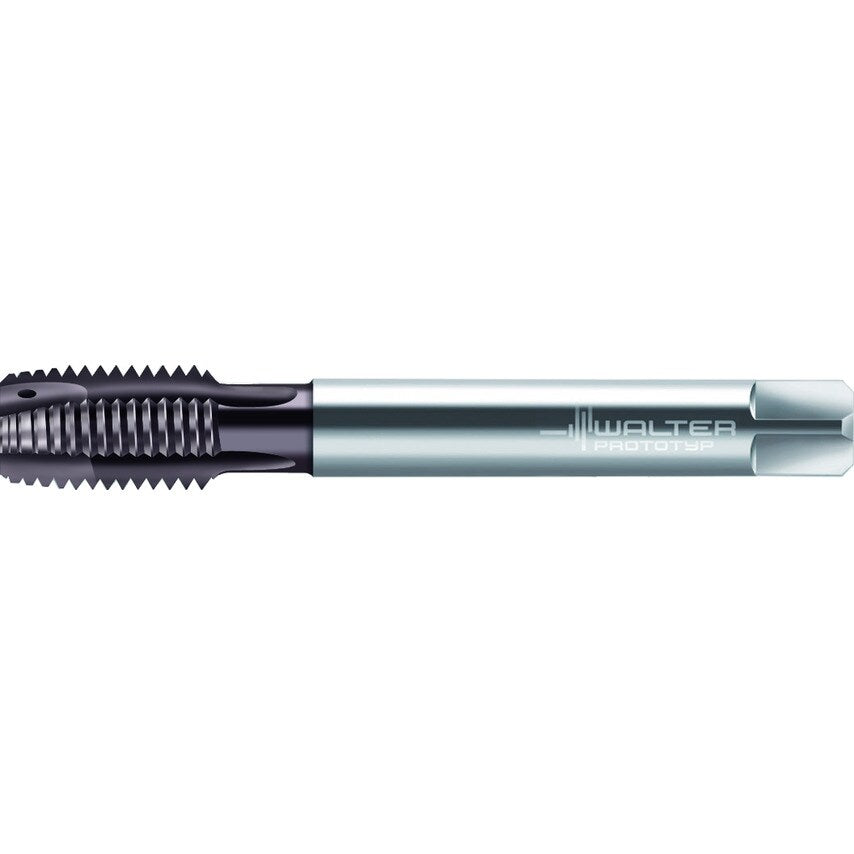

HSS-E PM machine taps Prototex Eco Plus B = 3.5-5xTP (plug chamfer) 3,5xD MF/6HX DIN 374 Suitable for through hole THL MF 10x1 P=0.0394in
| Connection Diameter | 10mm |
| MFR Part No. | 6432562 |
| Overall Length | 90mm |
| Thread Pitch | 1mm |
| Driving Square Length | 8mm |
| Cutting Edge Length | 20mm |
| Tool Designation | EP2126342-M10X1 |
| Clamping Width | 5.5mm |
| Usable Length | 67mm |
| Number of Grooves | 3 |
| Shank Diameter | 7mm |
| Thread Size | MF 10x1 |
