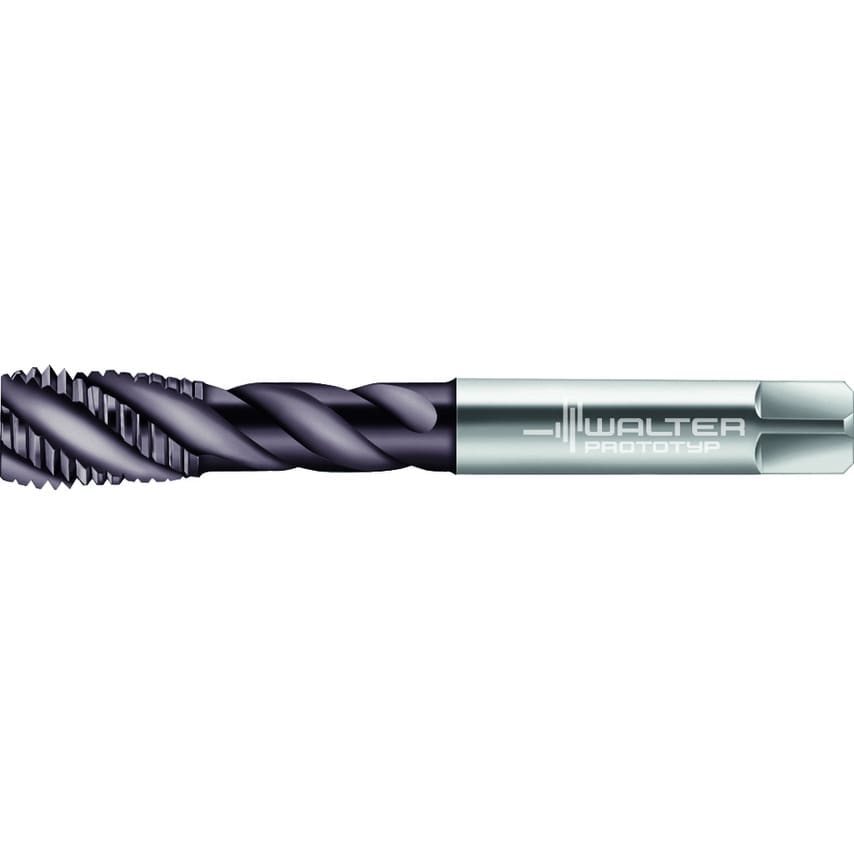

HSS-E PM machine taps Paradur Eco Plus C = 2-3xTP (semi-bottom chamfer) 3xD UNF/2B DIN 2184-1 right hand flute 45 Suitable for blind hole THL UNF 3/8-24 P=24
| Connection Diameter | 7mm |
| Clamping Width | 5.5mm |
| Usable Length | 77mm |
| Number of Grooves | 3 |
| Tool Designation | EP2356302-UNF3/8 |
| MFR Part No. | 6245690 |
| Driving Square Length | 8mm |
| Thread Size | UNF 3/8-24 |
| Cutting Edge Length | 15mm |
| Functional Length | 100mm |
