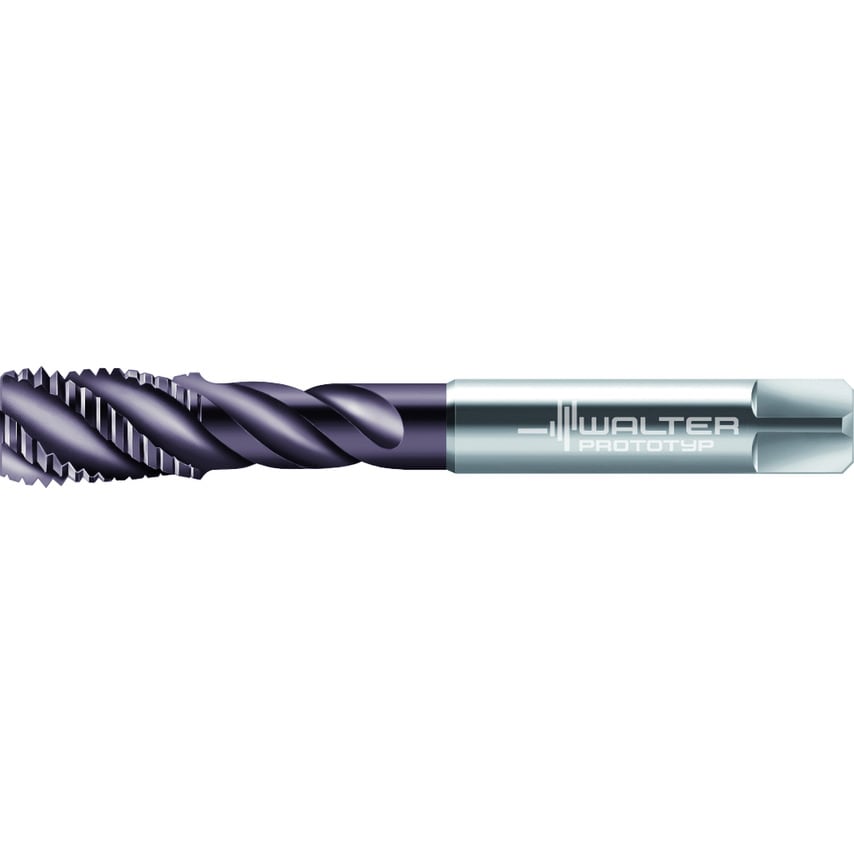

HSS-E PM machine taps Paradur Eco Plus E = 1.5-2xTP (full bottom chamfer) 3xD M/6HX DIN 376 right hand flute 45 Suitable for blind hole THL M 20 P=0.0984in
| Tool Designation | EP2056352-M20 |
| MFR Part No. | 6826935 |
| Cutting Edge Length | 25mm |
| Usable Length | 95mm |
| Number of Grooves | 4 |
| Driving Square Length | 15mm |
| Connection Diameter | 16mm |
| Thread Size | M 20 |
| Thread Pitch | 2.5mm |
| Functional Length | 140mm |
| Clamping Width | 12mm |
