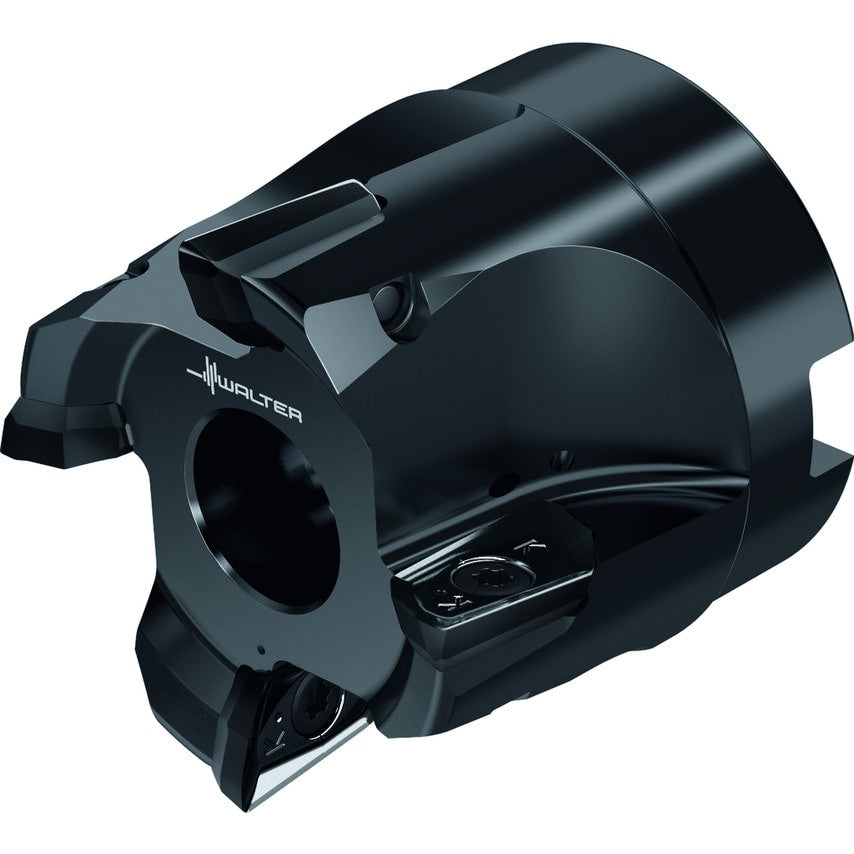

Ramping milling cutters Parallel bore DIN 138 transverse keyway =90 metric ZD .. 2005 .. Dc=2.4803in Z=4
| Tool Designation | M2131-063-B22-04-20 |
| Maximum Admissible Speed | 23100 |
| Connection Diameter | 22mm |
| Maximum Ramping Angle | 6\u00b0 |
| MFR Part No. | 6836967 |
| Maximum Projection Length | 50mm |
| Number of Inserts | 4 |
| Cutting Edge Length | 20mm |
| Number of Teeth | 4 |
| Cutting Edge Diameter | 63mm |
