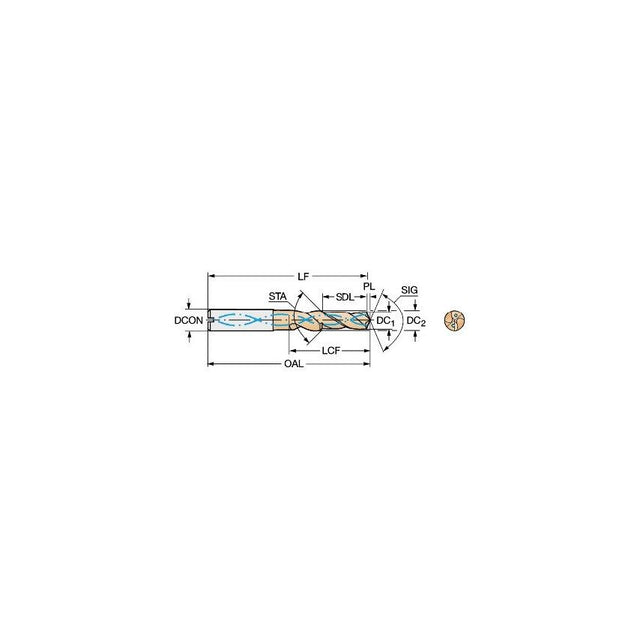

Product Range: CoroDrill 860Tool Type: Solid carbide drillsCoroDrill 860 is a solid carbide drill designed for fast and problem-free drilling, maximizing productivity through high metal cutting efficiency. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates.- Optimized geometry for fast and problem-free drilling- Optimized for ISO-P, ISO-M, ISO-N and multi-material 860-GM- Optimized flute geometry for efficient chip evacuation- High productivity and consistent tool life- High process security and repeatability
| Nett Weight | 0.2kg |
| Functional Length | 110.3mm |
| Coating Type | TiAlN |
| MFR Part No. | 26040729 |
| Usable Length | 34.4mm |
| Overall Length | 112mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Achievable Hole Tolerance | H9 |
| Unit Measured | Metric |
| Rotational Speed Maximum | 50000 1/min |
| Connection Diameter | 14mm |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| Grade | 4234 |
| Point Angle | 147\u00b0 |
| CoroPak | 12.1 |
| Coating Process Type | PVD |
