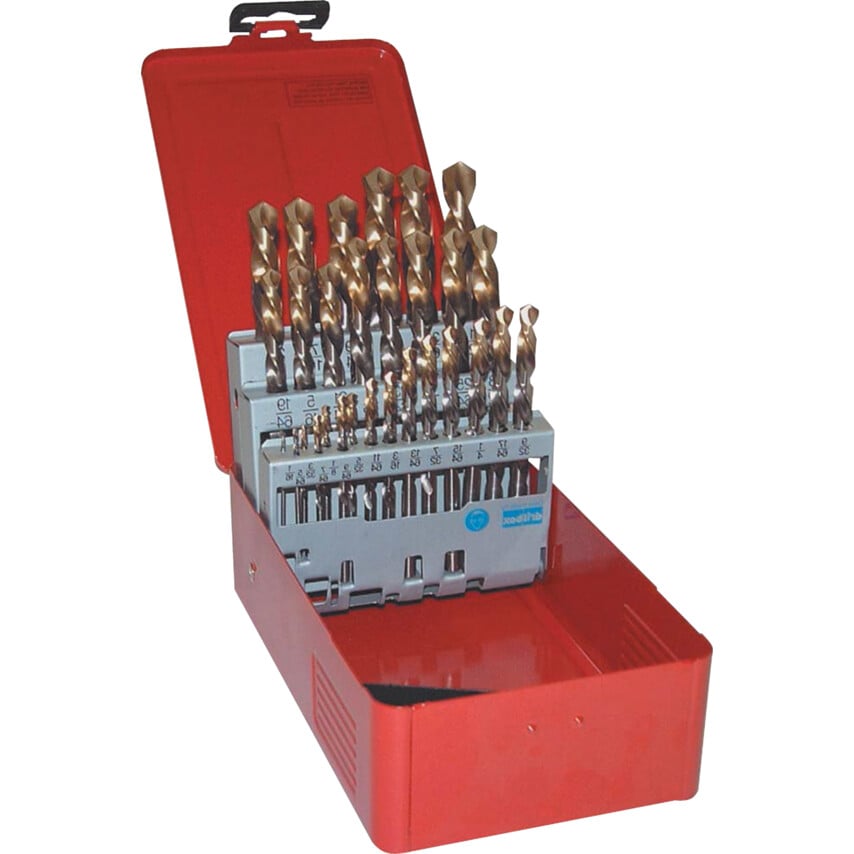

A095 Set 209 HSS-Tin Jobber Drills (91-Pce)

A095 and A002 TiN tip coated jobber drills are ideal for machining steel with their TiN coating for added wear resistance. They are optimsed for greater stiffness across the diameter range, whilst the bright body finish improves performance in cutting ductile metals with an efficient flute geometry which aids chip evacuation. Comes supplied in robust case for easy portability and storage. Features and Benefits Manufactured form high speed steel for optimal durability TiN coating for added wear resistance Greater stiffness across the diameter range Bright body finish for efficiency cutting ductile metals Improved flute geometry aids chip evacuation Contents 29 Pieces Set contains: Range: 1/16" - 1/2" in 1/64" increments 19 Pieces Set contains: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0mm 25 Pieces Set contains: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.0, 12.5, 13.0mm 91 Pieces Set contains: Range: 1.0mm - 10.0mm in 0.1mm increments Standards Manufactured To DIN 338 Typical Applications Drilling Metals Steel

Shank Type	Straight
MFR Part No.	A095209
Series	A095
Material	HSS
Minimum Drill Size	1mm
Depth x Diameter Ratio	4xD
Finish/Coating	TiN Tipped
Number of Pieces	91
Helix Angle	118\u00b0
ISO Category	P
Cutting Direction	Right Hand
Point Type	Split Point
Drill Length Type	Standard Length
Case Type	Metal
Point Angle	118\u00b0
Flute Construction	Ground flutes
System of Measurement	Metric
Product Type	HSS-Tin Jobber Drills
Maximum Drill Size	10mm
Standards Met	BS 328 | DIN 338
Flute Type	Spiral Flute
Drill Size Included	1mm to 10mm x 0.1mm
Size Increment	0.1mm
