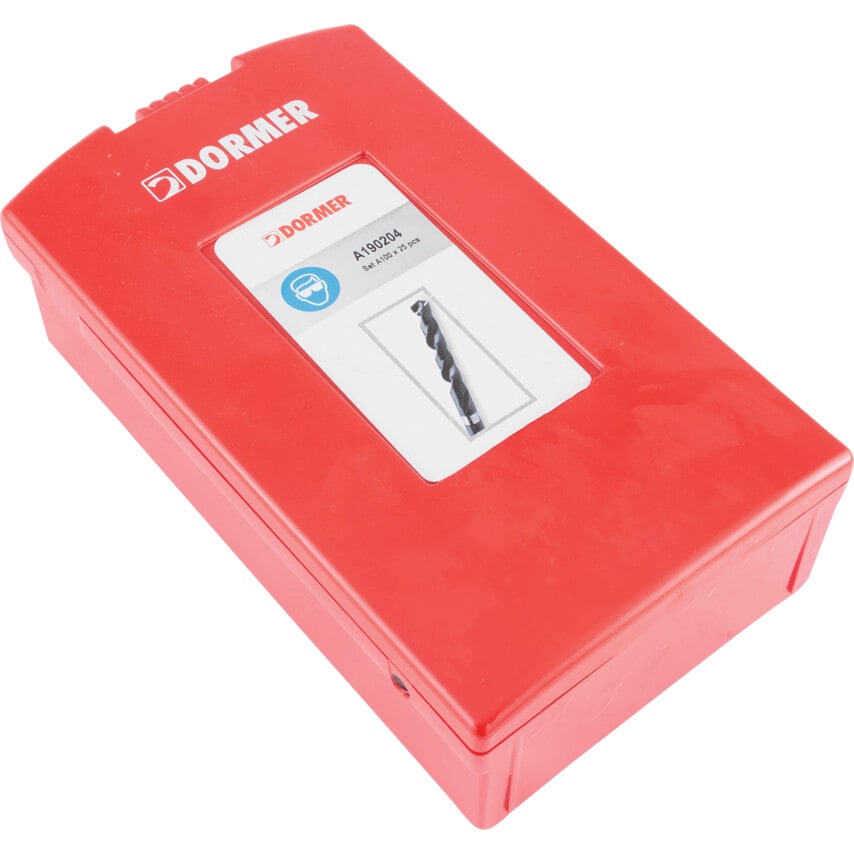

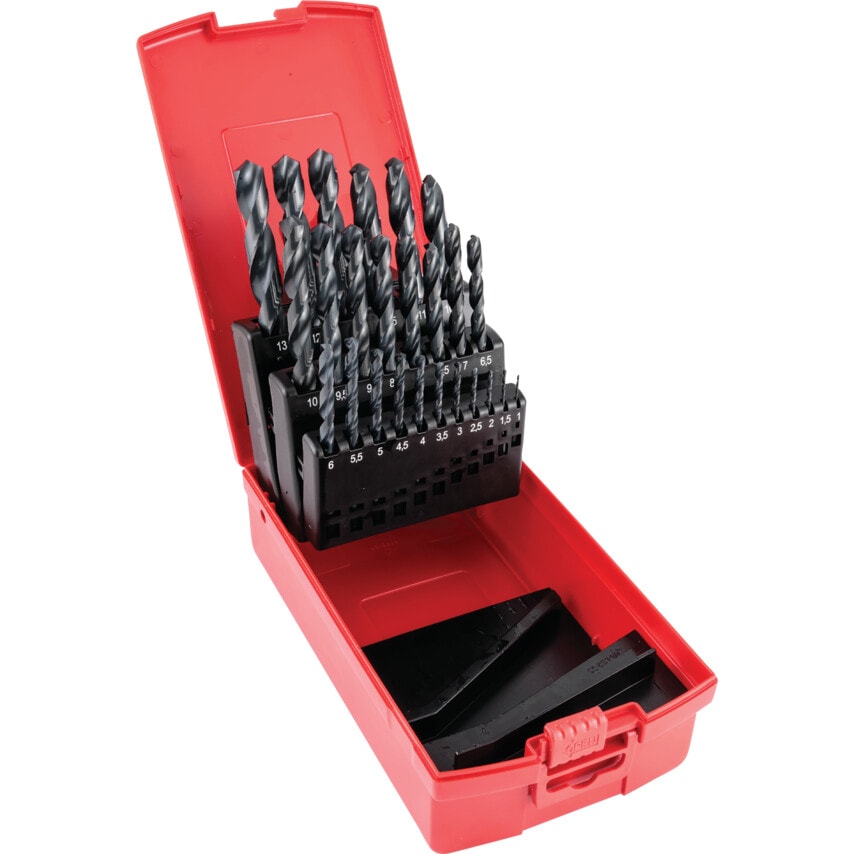

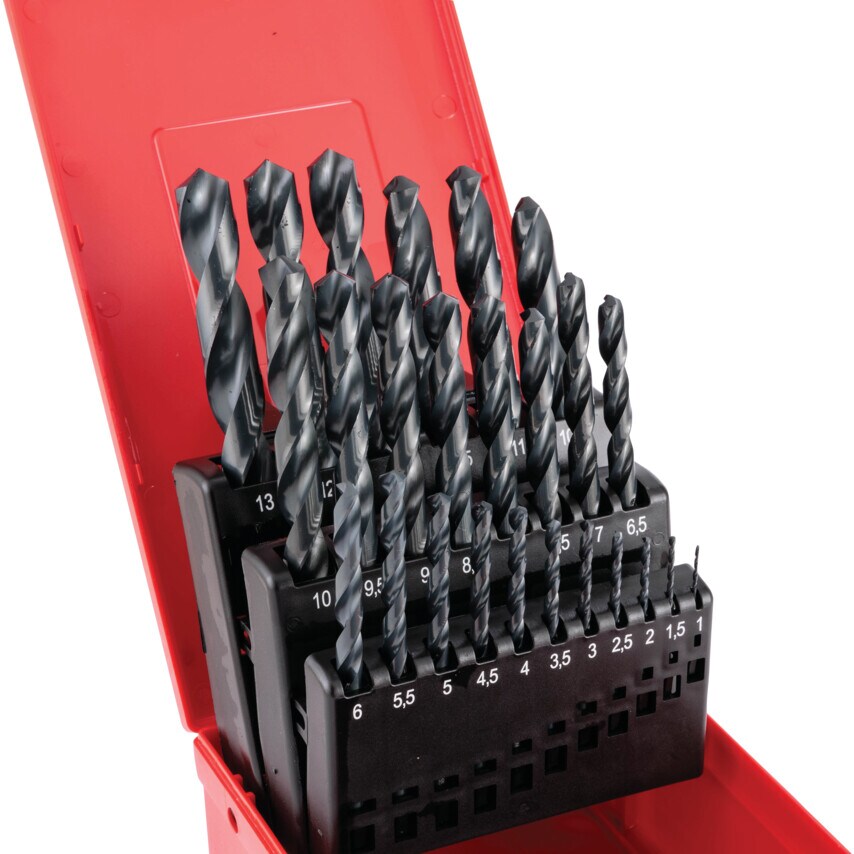

This 25 piece set of steam tempered, precision engineered drills have each size embossed for easy identification. They are supplied in an ABS plastic case for good portability.
Features and Benefits
118 Point Angle
Manufactured to DIN 338
Typical Applications
For general machining applications
| Size Increment | 0.5mm |
| Flute Construction | Ground flutes |
| Point Angle | 118\u00b0 |
| Material | HSS |
| System of Measurement | Metric |
| Minimum Drill Size | 1mm |
| Drill Size Included | 1mm to 13mm x 0.5 mm |
| Helix Angle | 118\u00b0 |
| Series | A190 |
| Shank Type | Straight |
| Case Type | Plastic Case |
| Cutting Direction | Right Hand |
| Drill Length Type | Standard Length |
| MFR Part No. | A190204 |
| Finish/Coating | Steam Tempered |
| Depth x Diameter Ratio | 4xD |
| Number of Pieces | 25 |
| ISO Category | P |
| Standards Met | DIN 338 |
| Maximum Drill Size | 13mm |
| Drill Diameter Gauge | No.204 |
