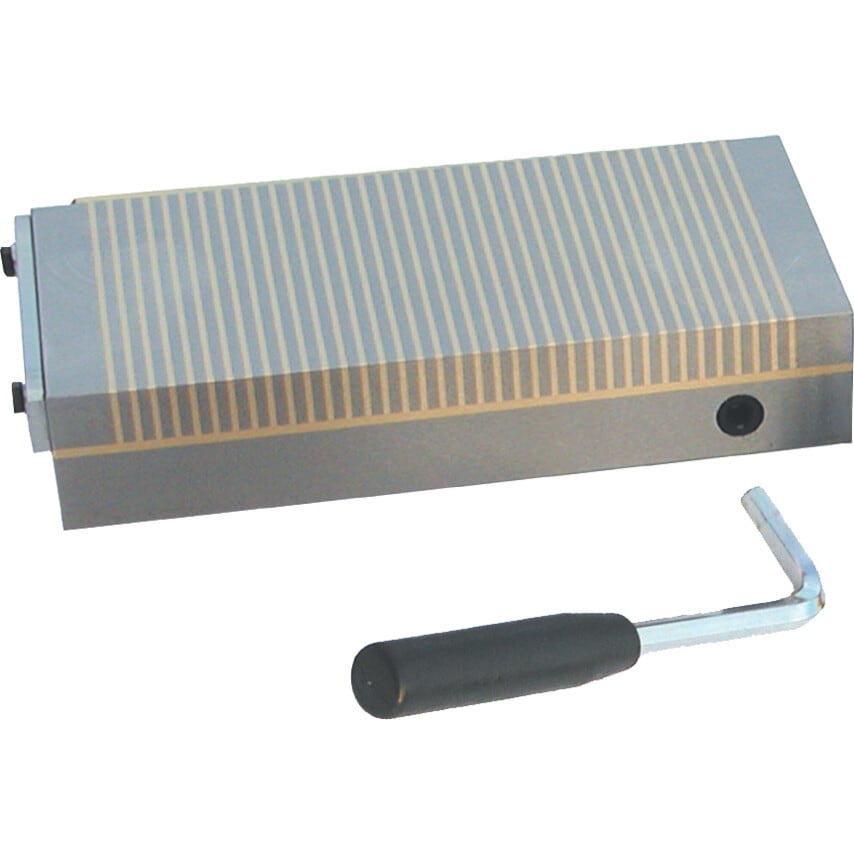

Rectangular Magnetic Chucks - Standard Pole
Standard range chucks are designed to give high performance combined with competitive pricing. Using high energy rare earth neodymium magnets they give an evenly distributed clamping force. Trouble-free operation is assured with a rugged but accurate build. Each standard magnetic chuck features: brass and steel top plates, removable hexagon key handles that ensure ease of operation through a 180 arc (replacement handles are available on request). All chucks are supplied with side and end stops. All chucks are supplied with clamps and a one year warranty on parts and labour.
Rectangular Magnetic Chucks - Standard Pole
Pole spacing = 4mm steel/2mm brass. Force = 80N/cm2.
These chucks are primarily designed for grinding operations.
They will effectively clamp all workpiece thicknesses down to 3mm.
| Width | 130mm |
| Height | 50mm |
| Pole Format | Standard |
| MFR Part No. | ERSP1325 |
| Type | Rectangular Chucks |
| Length | 250mm |
| Dimensions | 130 x 250mm |
| Material | Brass | Steel |
| Weight | 14kg |
