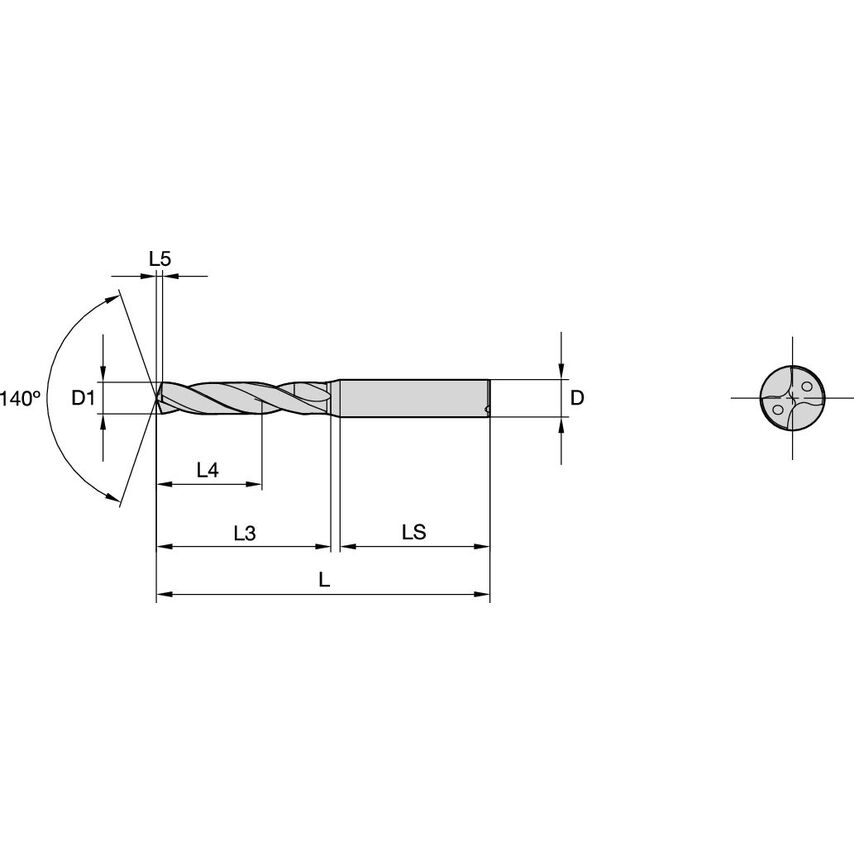

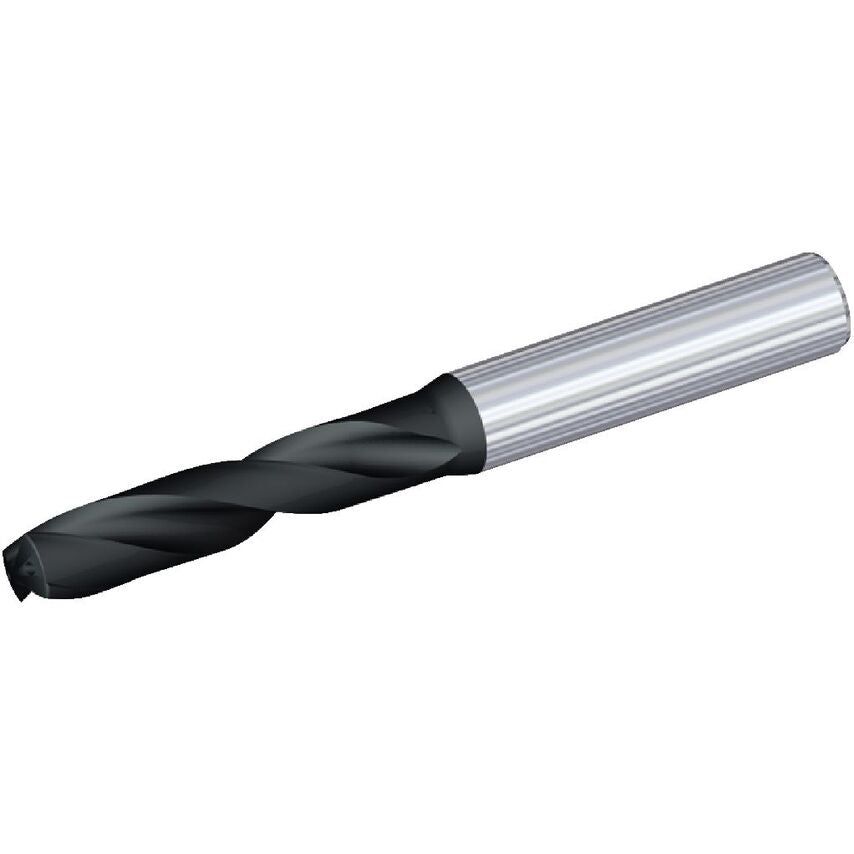

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| Hand Preference | Right |
| Number of Flutes | 2 |
| Overall Length | 79mm | 79.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Material | Carbide |
| Coolant Supplied | Yes |
| Assembly Length | 41.797mm |
| Unit Measured | Metric |
| Flute Length | 34mm | 34.0000mm |
| Primary Material | Stainless Steel |
| Flute Construction | Helical Flute |
| Drill Point | 1.203mm |
| MFR Part No. | 3884540 |
| Drill Depth | 24mm | 24.0000mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Drill Diameter | 6.2000mm |
| Finish/Coating | AlTiN |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Shank Length | 36.0000mm |
| Adapter Type | Cylindrical |
| Functional Length | 77.7970mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Clamping Length | 36mm |
