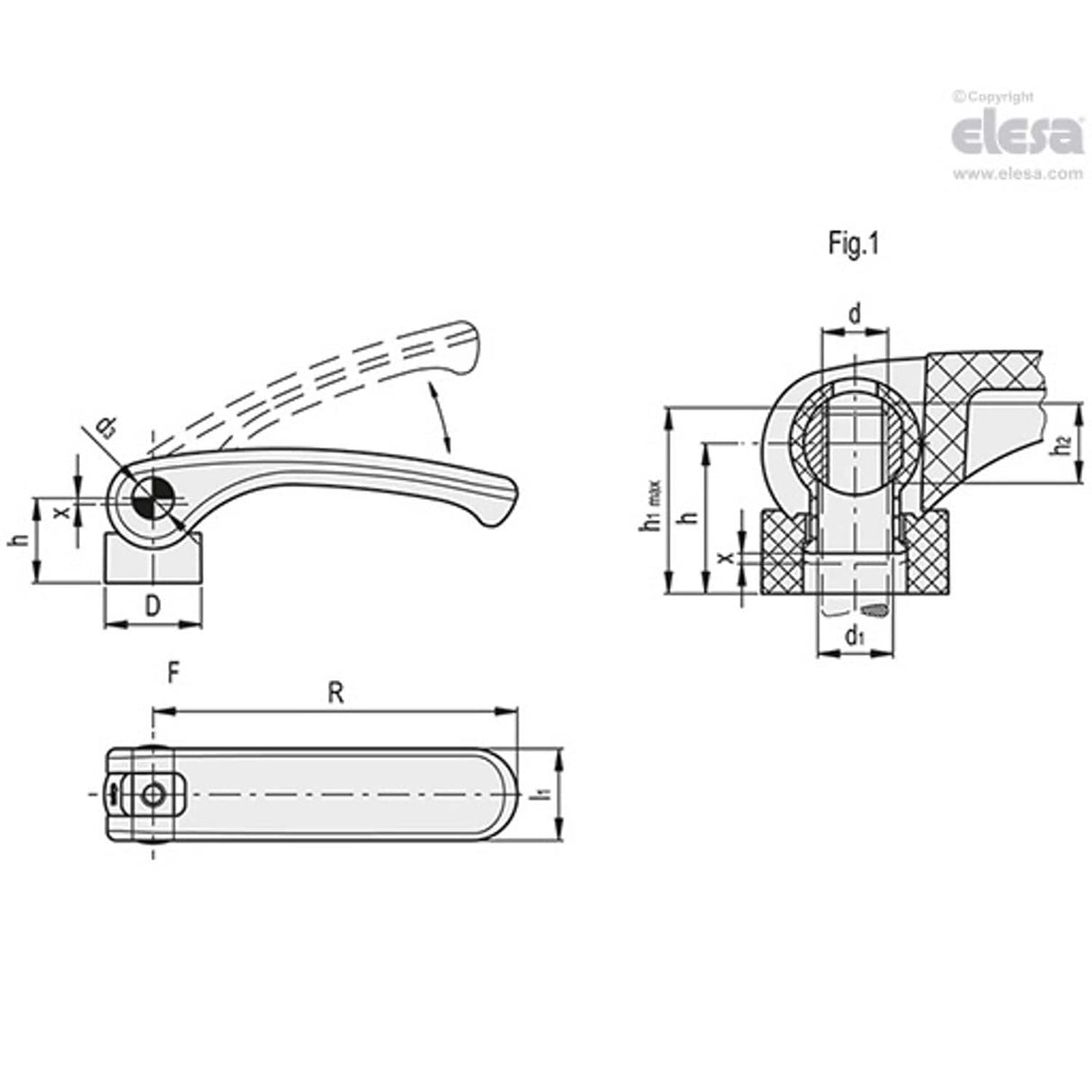

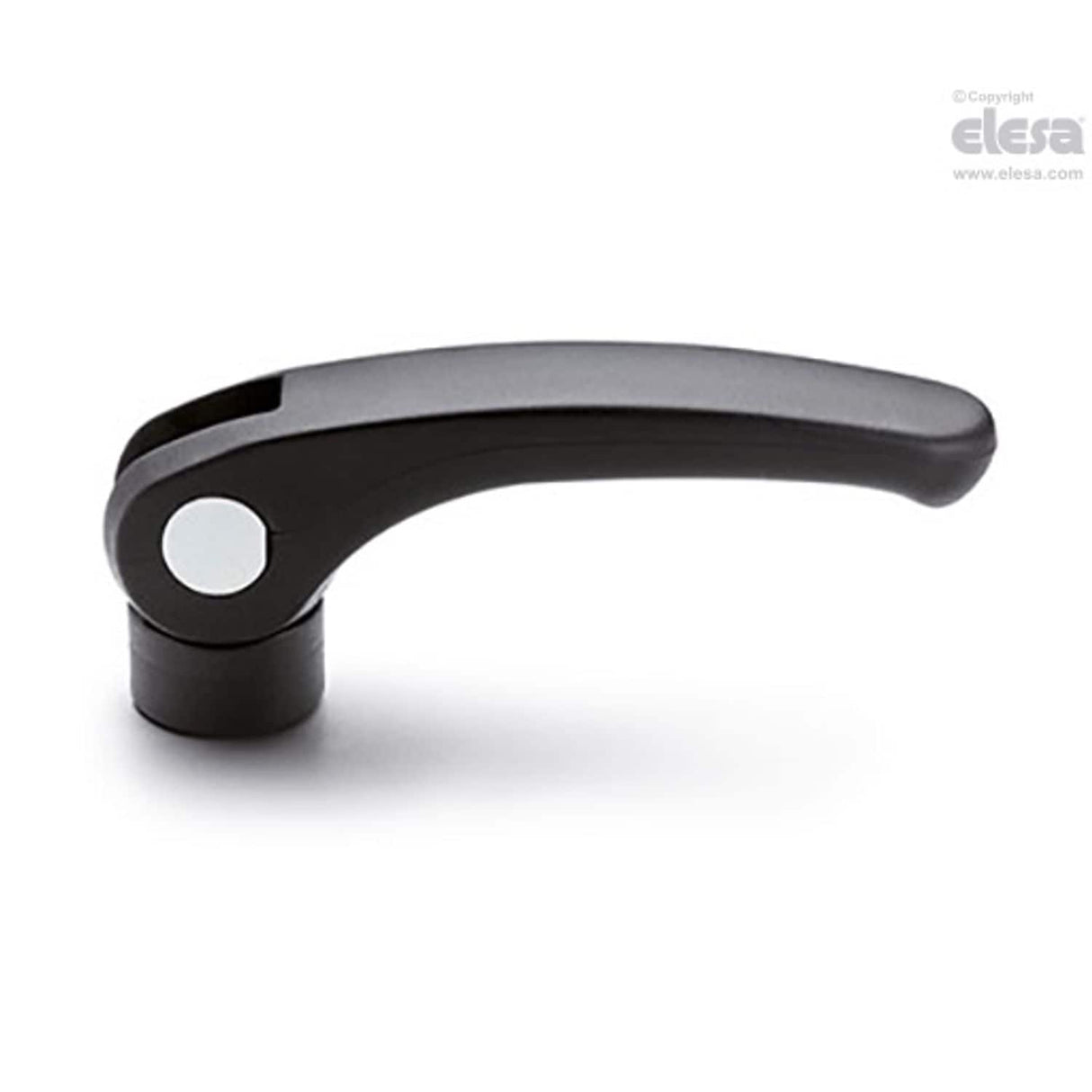

LAC. Cam levers, Technopolymer, Without adjustable ring-nut, rotating pin with zinc-plated steel threaded hole For product drawing and dimensions refer to pdf Item data sheet.
| h | 21 |
| D | 20 |
| d | M8 |
| MFR Part No. | LAC.80-B-M8 |
| d3 | 11 |
| l1 | 20 |
| d1 | 8.1 |
| Diameter | 20mm |
| R | 79 |
| h1 max | 25.5 |
| h2 | 7 |
| x | 1 |
